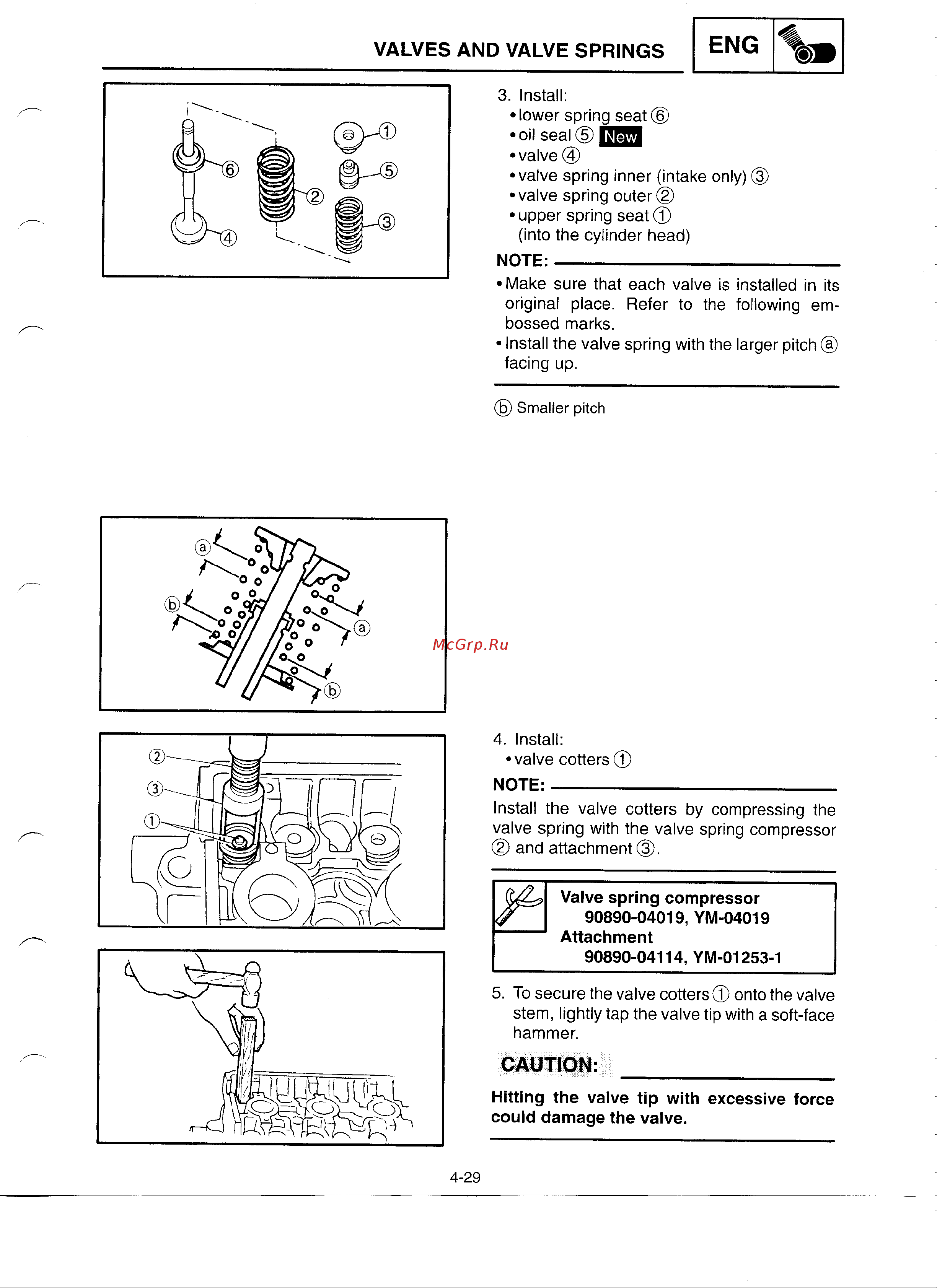

VALVES AND VALVE SPRINGS ENG A 3 Install lower spring seat 6 oil seal 5 New valve 4 valve spring inner intake only 3 valve spring outer 2 upper spring seat into the cylinder head NOTE __________________________________ Make sure that each valve is installed in its original place Refer to the following em bossed marks Install the valve spring with the larger pitch facing up Smaller pitch 4 Install valve cotters NOTE __________________________________ Install the valve cotters by compressing the valve spring with the valve spring compressor 2 and attachment 3 Valve spring compressor 90890 04019 YM 04019 Attachment 90890 04114 YM 01253 1 5 To secure the valve cotters onto the valve stem lightly tap the valve tip with a soft face hammer CAUTION _______________________ Hitting the valve tip with excessive force could damage the valve 4 29
