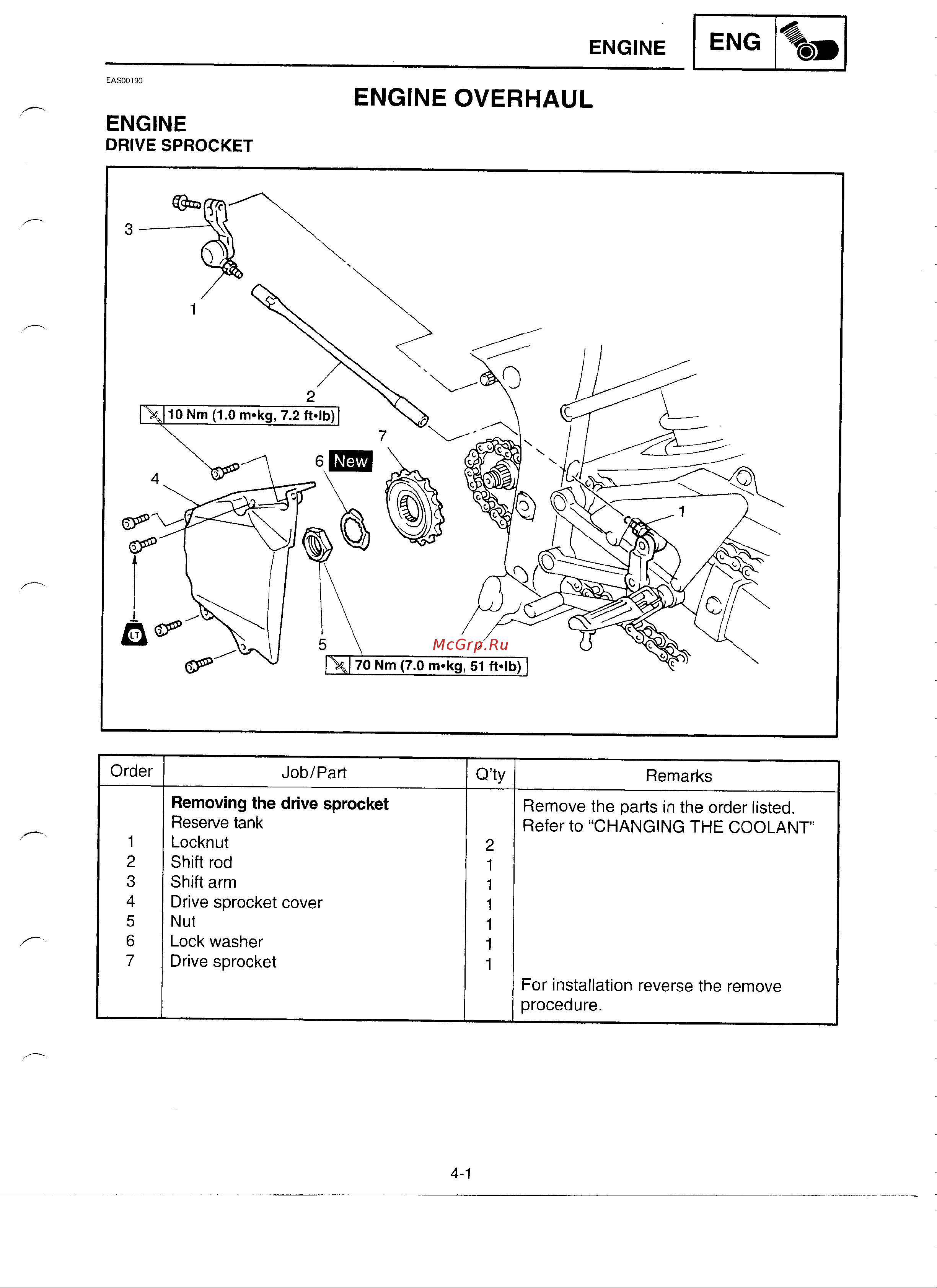

ENGINE ENG EAS00190 ENGINE OVERHAUL ENGINE DRIVE SPROCKET Order 1 2 3 4 5 6 7 Job Part Q ty Removing the drive sprocket Reserve tank Locknut Shift rod Shift arm Drive sprocket cover Nut Lock washer Drive sprocket Remarks Remove the parts in the order listed Refer to CHANGING THE COOLANT 2 1 1 1 1 1 1 For installation reverse the remove procedure 4 1
