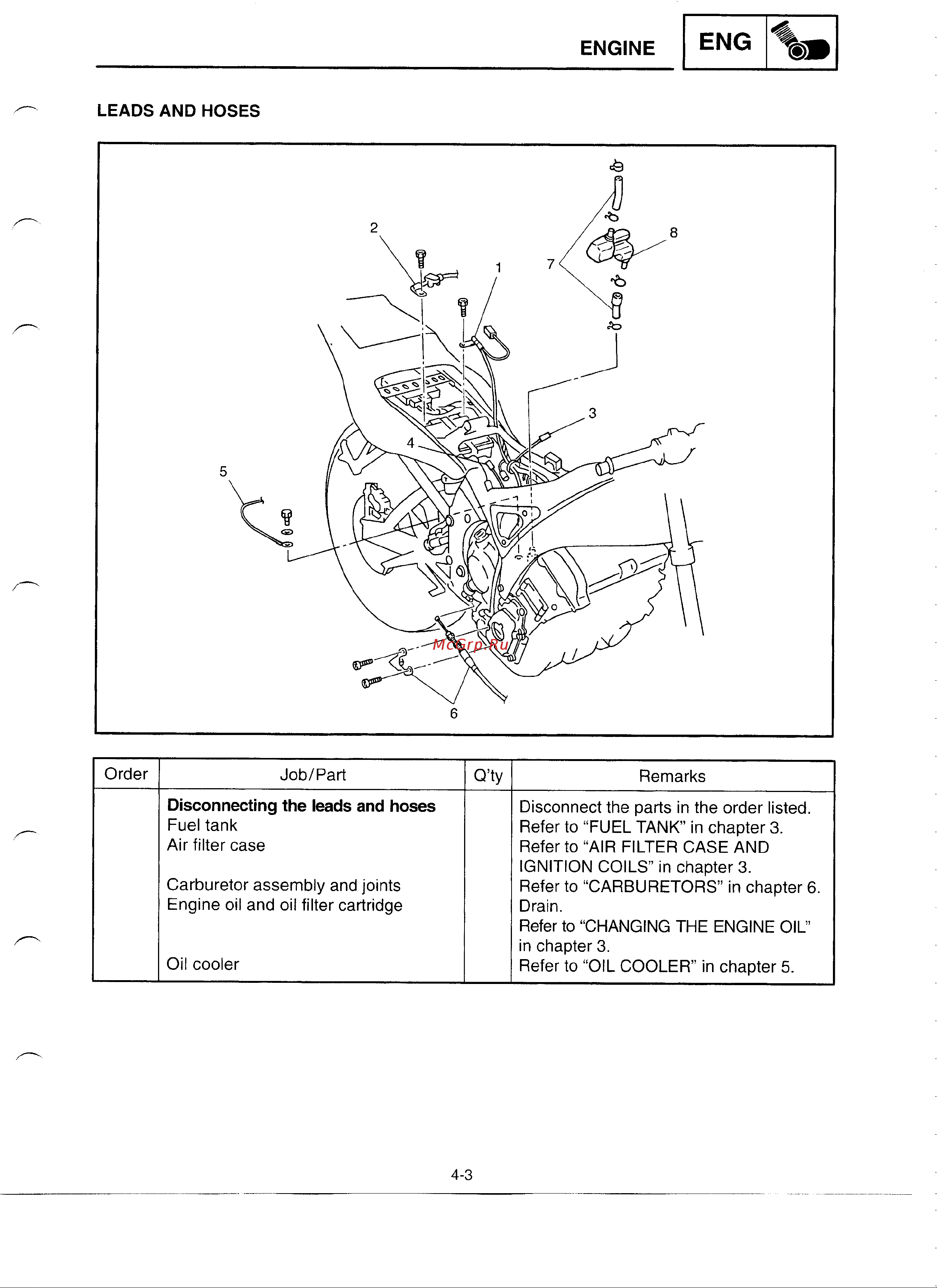

ENGINE ENG LEADS AND HOSES Order Job Part Q ty Disconnecting the leads and hoses Fuel tank Air filter case Remarks Disconnect the parts in the order listed Refer to FUEL TANK in chapter 3 Refer to AIR FILTER CASE AND IGNITION COILS in chapter 3 Refer to CARBURETORS in chapter 6 Drain Refer to CHANGING THE ENGINE OIL in chapter 3 Refer to OIL COOLER in chapter 5 Carburetor assembly and joints Engine oil and oil filter cartridge Oil cooler 4 3
