3 Set-up and installation
Installation and operating manual
11
Daikin Altherma EHS(X/H)(B)-D
Daikin Altherma 3 R ECH₂O
008.1451099_00 – 07/2020

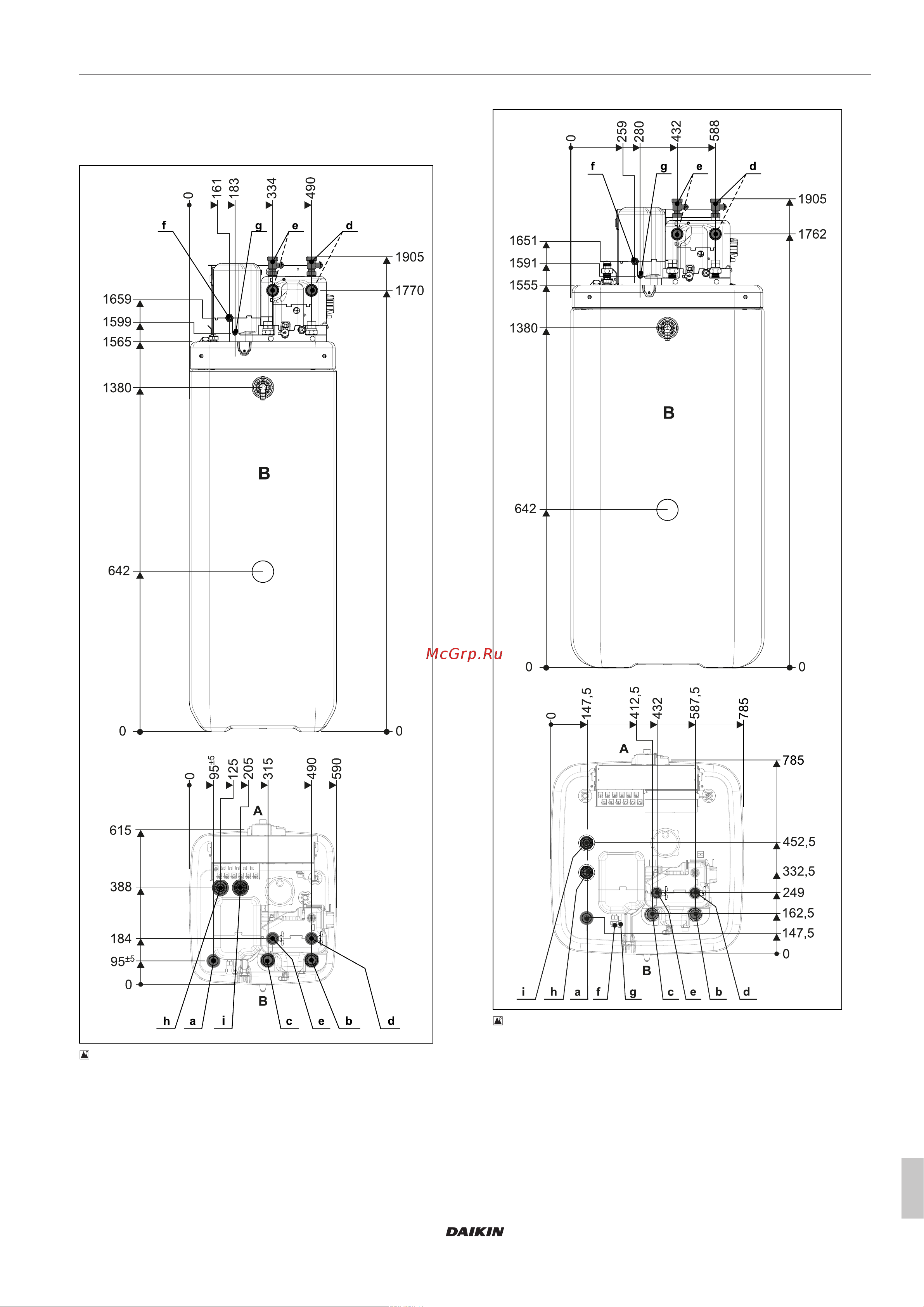

3.1 Dimensions and connection
dimensions
Dimensions …04P30D.../…08P30D...
3‒1 Dimensions …04P30D.../…08P30D...
a Solar flow
b Domestic cold water
c Hot water
d Heating flow
e Heating return flow
f Connection for refrigerant gas line
g Connection for refrigerant fluid line
h Biv flow (…Biv type only)
i Biv return flow (…Biv type only)
A front
B rear
Dimensions …04P50D…/…08P50D…
3‒2 Dimensions …04P50D…/…08P50D…
a Solar flow
b Domestic cold water
c Hot water
d Heating flow
e Heating return flow
f Connection for refrigerant gas line
g Connection for refrigerant fluid line
h Biv flow (…Biv type only)
i Biv return flow (…Biv type only)
A front
B rear
