2 Product description
Installation and operating manual
8
Daikin Altherma EHS(X/H)(B)-D
Daikin Altherma 3 R ECH₂O
008.1451099_00 – 07/2020
Upper side of the device

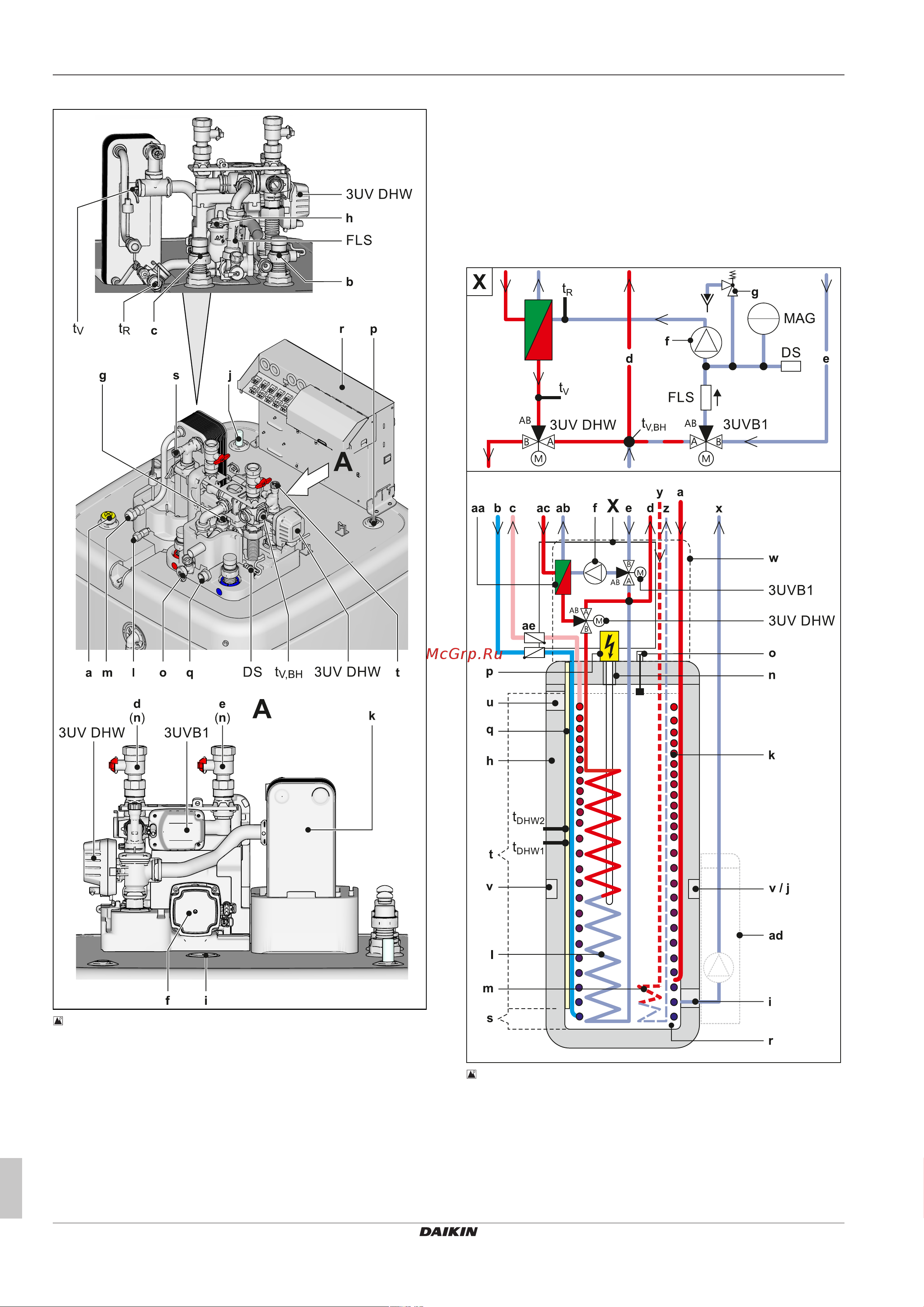

2‒2 Design and components – Top of the device
a Solar flow
b Cold water connection
c Hot water
d Heating flow
e Heating return flow
f Circulation pump
g Pressure relief valve
h Automatic vent valve
i Connection for optional electrical backup heater EKBUxx
j Fill level indicator (tank water)
k Plate heat exchanger
l Connection for refrigerant fluid line
m Connection for refrigerant gas line
n Ball valve (heating circuit)
o Combined filling and draining valve (heating circuit)
p Storage tank temperature sensor
q Expansion vessel connection
r Switch box
s, t Manual air purge valves
3UVB1 3‑way changeover valve (internal heat generator circuit)
3UV DHW 3‑way changeover valve (hot water/heating)
DS Pressure sensor
FLS FlowSensor
t
R
Return temperature sensor
t
V,BH
Backup heater inflow temperature sensor
Internal structure…04P30D.../…08P30D...
2‒3 Design and components – Internal
structure ...04P30D.../...08P30D... (Biv)
a Solar flow
b Cold water connection
c Hot water
d Heating flow
e Heating return flow
f Circulation pump
g Pressure relief valve
