3 Set-up and installation
Installation and operating manual
22
Daikin Altherma EHS(X/H)(B)-D
Daikin Altherma 3 R ECH₂O
008.1451099_00 – 07/2020

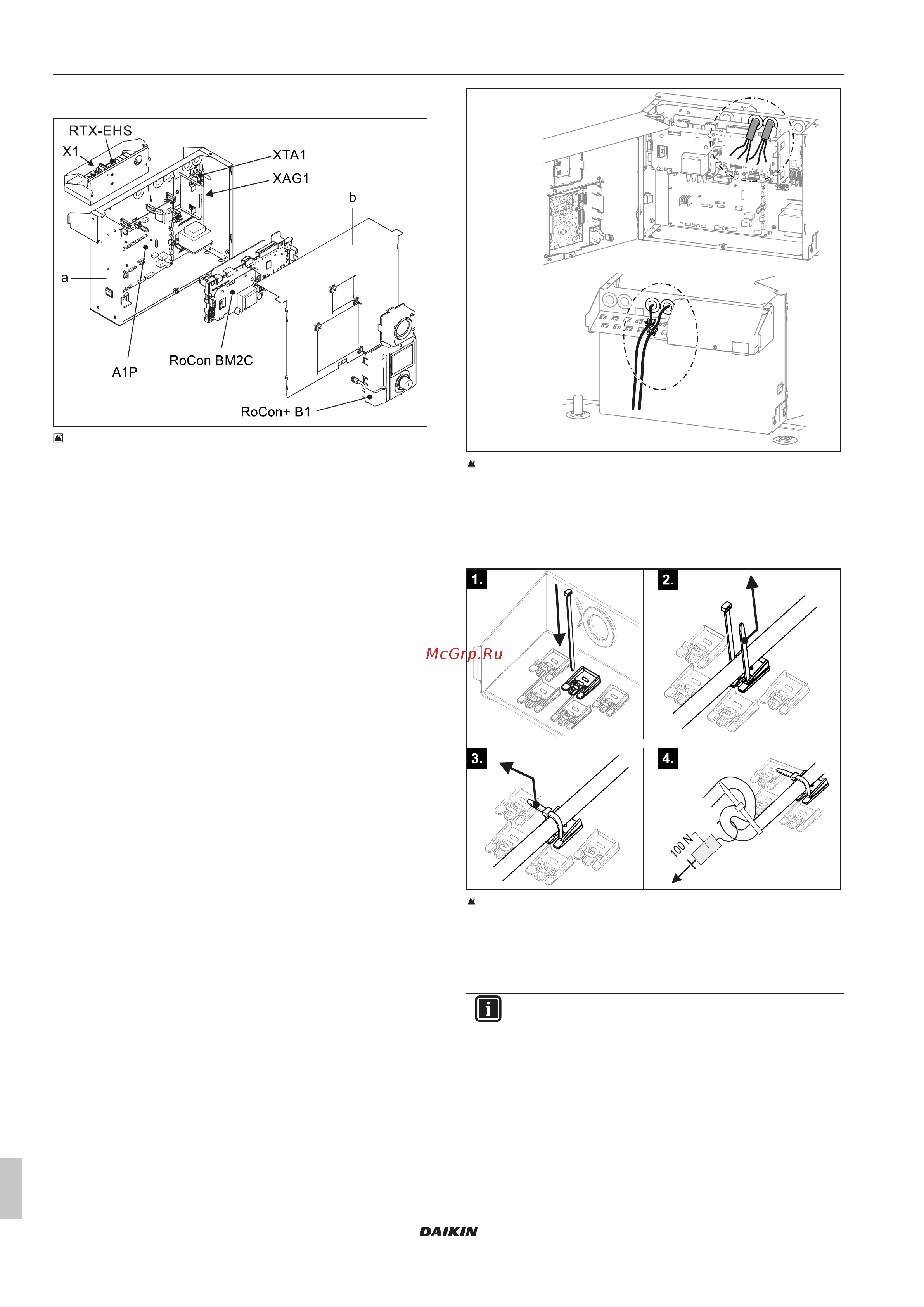

3.7.2 Position of the PCBs and terminal strips
3‒32 Position of the PCBs and terminal strips
a Switch box
b Switch box cover
A1P PCB (heat pump basic control)
RoCon+ B1 Controller control panel
RoCon BM2C PCB (basic controller module)
RTX-EHS PCB (backup heater)
X1 Terminal strip for backup heater mains connection
XAG1 Heat pump outdoor unit plug connection
XTA1 Outdoor temperature sensor terminal strip T
A
3.7.3 Mains connection
A flexible cable for the mains connection is already connected inside
the device.
1 Check the supply voltage (~230V, 50Hz).
2 Disconnect the junction box of the domestic installation.
3 Connect the cable for connecting the indoor unit to the mains to
the domestic installation's junction box (isolator according to
EN 60335-1) via an all-pole separating main switch to be
installed in the building. Ensure that the polarity is correct.
3.7.4 General information on the electrical
connection
1 Check the supply voltage.
2 Set the mains switch to "Off".
3 Switch off the circuit breaker in the junction box of the domestic
power supply.
4 Open the switch box (see "3.4.4Open the switch box"[414]).
5 Insert the cable through one of the cable glands into the interior
of the switch box. When cutting and laying cables to be
connected, make sure that the switch box can be brought into
the service position without any tension.
3‒33 Cable gland
6 Make electrical connections according to "3.7.1 Overall
connection diagram"[421] and the following sections.
7 Effective strain relief in the switch box by means of cable ties
must be ensured for all cables connected to the indoor unit and
their holding force checked.
3‒34 Establishing and checking the strain relief
8 After the installation is complete: Close the switch box again
and, if necessary, move it to the normal position.
3.7.5 Connecting the heat pump outdoor unit
INFORMATION
A separate manual containing instructions about
installation and operation is included with this component.
1 Follow the installation steps in "3.7.4General information on the
electrical connection"[422].
2 Connect the heat pump outdoor unit to the XAG1terminal strip.
