13 Glossary
Installation manual
20
EKHWSU150~300D3V3 + EKEXPVES
Domestic hot water tank with option kit for air to water heat pump
system
4P510673-1B – 2018.01

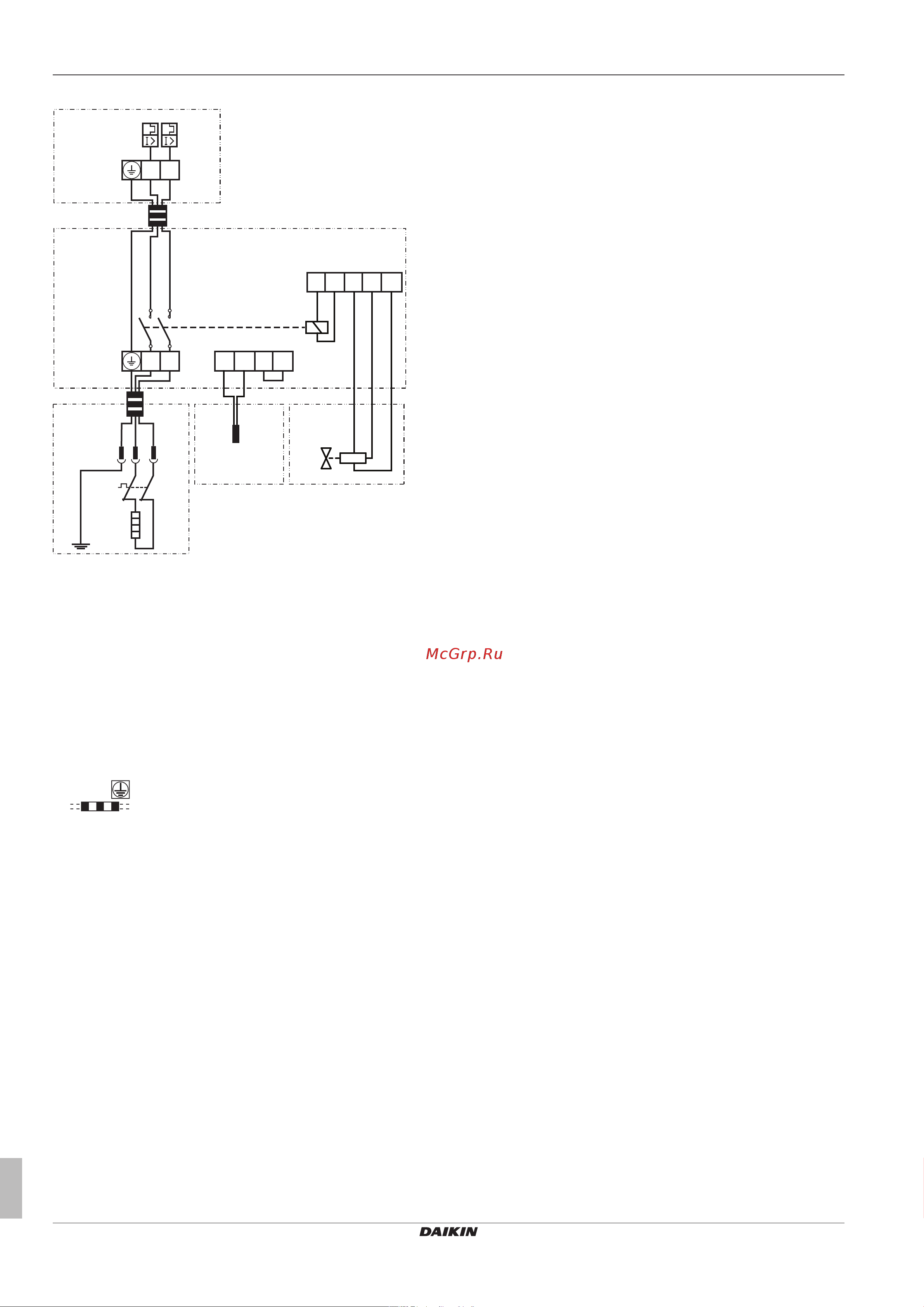

For EBLQ/EDLQ units only:
42
31
7 8L N
X2M
K3M
F2B
X6M
Q2L
E4H
1
2
4
3
b
a
c
L N
X8M
NL
X4M
R5T
d
3 4
X8M
3 41 2 5
e
Y
L
N
M3S
a Field supply
b EKCB07CAV3 control box
c Domestic hot water tank electrical box
d Domestic hot water tank
e 3-way valve
E4H Booster heater
F2B Fuse booster heater (field supply)
K3M Contactor booster heater
L Live
M3S 3-way valve
N Neutral
Q2L Thermal protector booster heater
R5T Thermistor domestic hot water
X2M Terminal block
X4M Terminal block
X6M Terminals on booster heater
X8M Terminal block (located in the control box)
X8M Terminal block (field supply)
Protective ground
Field wiring
13 Glossary
Dealer
Sales distributor for the product.
Authorized installer
Technical skilled person who is qualified to install the
product.
User
Person who is owner of the product and/or operates the
product.
Applicable legislation
All international, European, national and local directives,
laws, regulations and/or codes that are relevant and
applicable for a certain product or domain.
Service company
Qualified company which can perform or coordinate the
required service to the product.
Installation manual
Instruction manual specified for a certain product or
application, explaining how to install, configure and maintain
it.
Operation manual
Instruction manual specified for a certain product or
application, explaining how to operate it.
Maintenance instructions
Instruction manual specified for a certain product or
application, which explains (if relevant) how to install,
configure, operate and/or maintain the product or
application.
Accessories
Labels, manuals, information sheets and equipment that are
delivered with the product and that need to be installed
according to the instructions in the accompanying
documentation.
Optional equipment
Equipment made or approved by Daikin that can be
combined with the product according to the instructions in
the accompanying documentation.
Field supply
Equipment NOT made by Daikin that can be combined with
the product according to the instructions in the
accompanying documentation.
