Discolouration on the CCD colour filter
When continuously shooting a bright light
source such as a spotlight, the colour filter of
the CCD may have deteriorated and it may
cause discolouration. Even when changing
the fixed shooting direction after continuously
shooting a spotlight for a certain period, the
discolouration may remain.
Do not aim the camera at strong light
sources.
A light source such as a spot light causes a
blooming (light bleeding) or a smear (vertical
lines).
Indication label
Refer to the indication label placed on the
surface of the unit as to the indications of
equipment classification and power source,
etc.
PoE (Power over Ethernet)
Use a PoE hub/device that is compliant with
IEEE802.3af standard.
Router
When connecting the camera to the Internet,
use a broadband router with the port for-
warding function (NAT, IP masquerade).
Refer to the Network Operating Instructions
(PDF) for further information about the port
forwarding function.
Be sure to remove this apparatus if it is
not in use.
Radio interference
When the camera is used near a TV/radio
antenna, or a strong electric field or magnetic
field (such as near a motor or a transformer),
images may be distorted and noise may be
produced.
Installing place
Contact your dealer for assistance if you are
unsure of an appropriate place in your partic-
ular environment.
Make sure that the installation area is strong
enough to hold the camera, such as a con-
crete ceiling. When the installation area is not
strong enough, reinforce and strengthen it or
use an optional ceiling mount bracket (WV-
Q167).
Avoid installing in the following locations.
• Locations where it may get wet from rain
or water splash (not only outdoor)
• Locations where a chemical agent is
used such as a swimming pool
• Locations subject to steam and oil smoke
such as a kitchen
• Locations near flammable gas or vapor
• Locations where radiation or x-ray emis-
sions are produced
• Locations subject to strong magnetic
field or radio waves
• Locations where corrosive gas is pro-
duced
• Locations where it may be damaged by
briny air such as seashores
• Locations where the temperature is not
within –10 °C to +50 °C.
• Locations subject to vibrations (This
product is not designed for on-vehicle
use.)
• Locations subject to condensation as the
result of severe changes in temperature
(In case of installing the camera in such
locations, the dome cover may become
foggy or condensation may be caused
on the cover.)
• Locations with humid or dusty environ-
ment

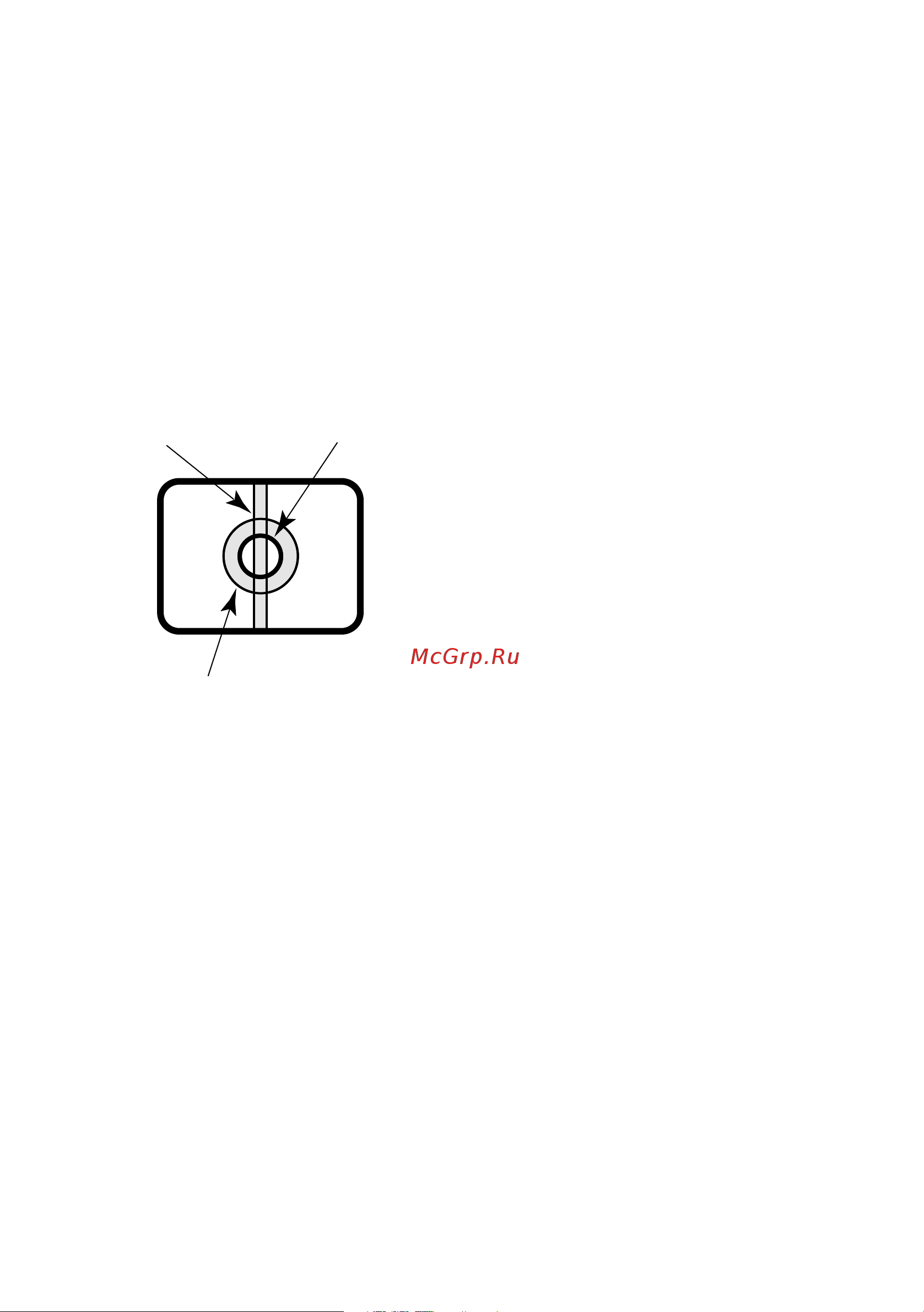

Smear
Bright subject
Blooming
