INSTRUMENT PANEL ASSEMBLY
IP-7
C
D
E
F
G
H
J
K
L
M
A
B
IP

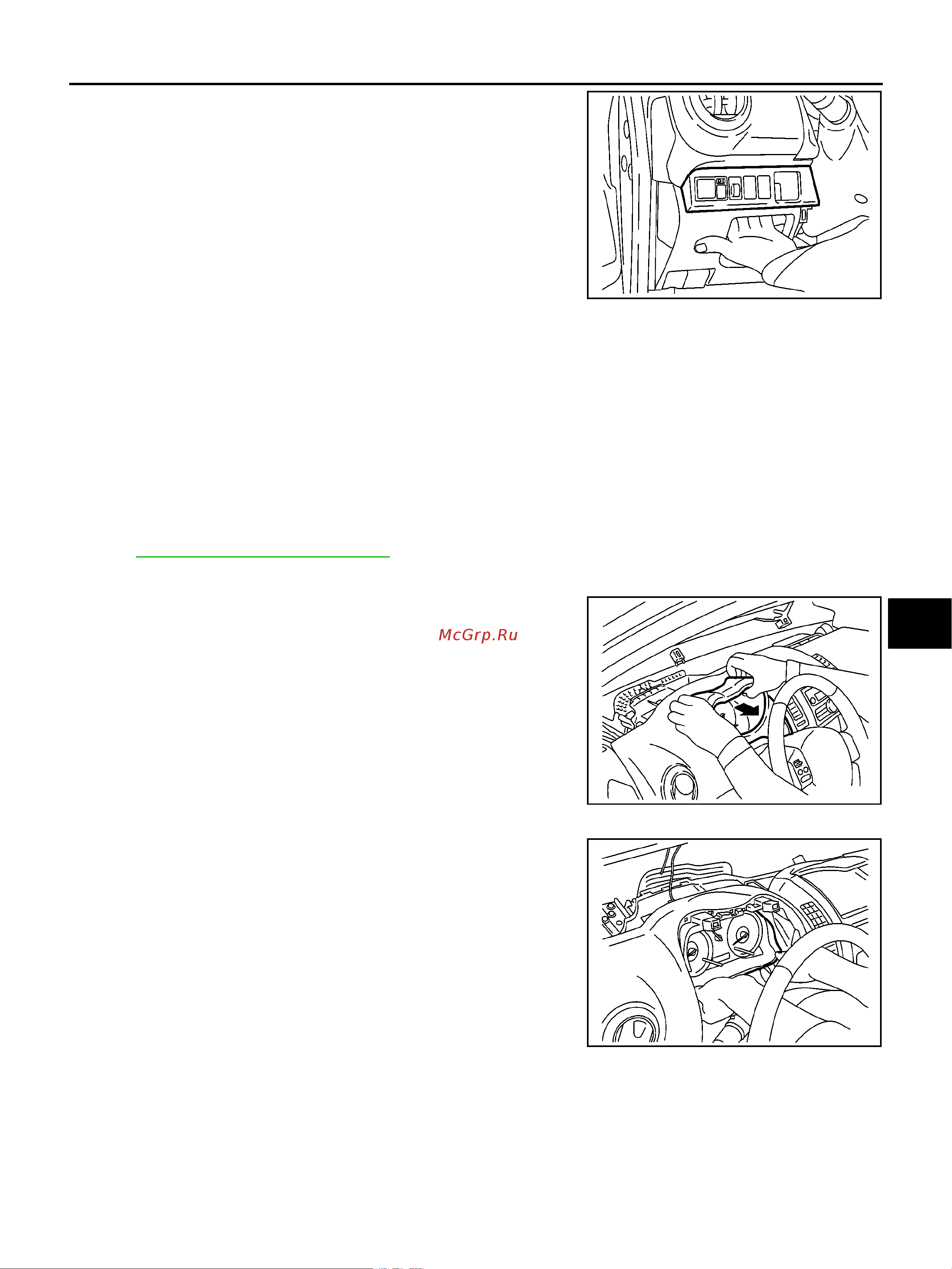

2. Push the switch panel finisher to rear direction as shown.
3. Disconnect harness connectors and remove the switch panel
finisher.
F. Steering Column Cover Upper
1. Tilt down the steering column, and remove screw (1) facing front of vehicle.
2. Disengage hooks and remove.
CAUTION:
Pull out being careful of interference with surrounding objects.
G. Steering Column Cover Lower
Remove screws (3), and pull downward to remove.
CAUTION:
Pull out being careful of interference with surrounding objects.
H. Combination Switch
Refer to LT-112, "Removal and Installation" .
I. Cluster Lid A
Pull the cluster lid A to rearward direction and remove.
CAUTION:
Pull out being careful of interference with surrounding objects.
J. Combination Meter
1. Remove screw (1).
2. Pull rearward to disengage plastic clips as shown.
3. Disconnect harness connectors.
4. Lift up the lower side of combination meter to rotate the combi-
nation meter from the vertical to horizontal position.
5. Remove the combination meter from the instrument pad.
MIIB9301E
MIIB9302E
MIIB9303E
