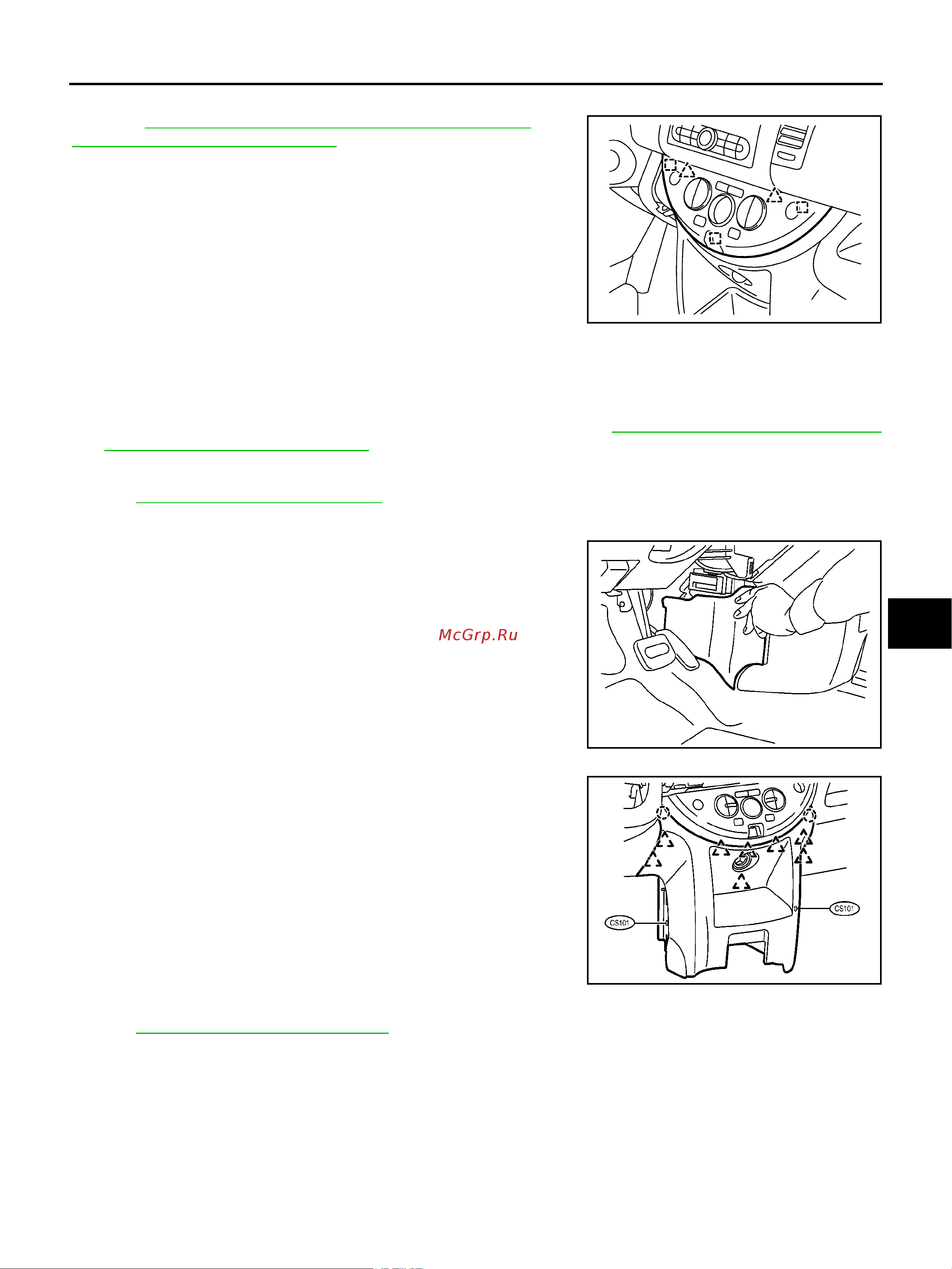

INSTRUMENT PANEL ASSEMBLY
IP-9
C
D
E
F
G
H
J
K
L
M
A
B
IP
L. Air Conditioner Finisher
Refer to ATC-112, "Removal and Installation of Controller" and
MTC-62, "
Removal and Installation" .
M. Instrument Pad (Driver Side)
Pull rearward to disengage metal clips from the instrument panel.
CAUTION:
Pull out being careful of interference with surrounding objects.
After removal and if necessary, remove the side ventilator grille. Refer to ATC-130, "
Removal and Installation"
and MTC-76, "Removal and Installation" .
N. Center Console
Refer to IP-13, "Removal And Installation" .
O. Instrument Panel Stay Cover
1. Remove instrument panel stay finisher.
2. Remove mounting clips LH and RH.
3. Pull instrument stay cover to rearward to disengage plastic clips.
4. Disconnect power supply or cigar lighter harness connector if
equipped.
5. Remove instrument stay cover.
After removal, if necessary, remove screws securing the cup holder
to the instrument stay cover, and remove cup holder.
P. Glove Box Lid.
Refer to IP-12, "GLOVE BOX ASSEMBLY" .
MIIB9308E
MIIB9305E
MIIB9304E
