Nissan Note [8/14] Instrument panel assembly
![Nissan Note [8/14] Instrument panel assembly](/views2/1789817/page8/bg8.png)

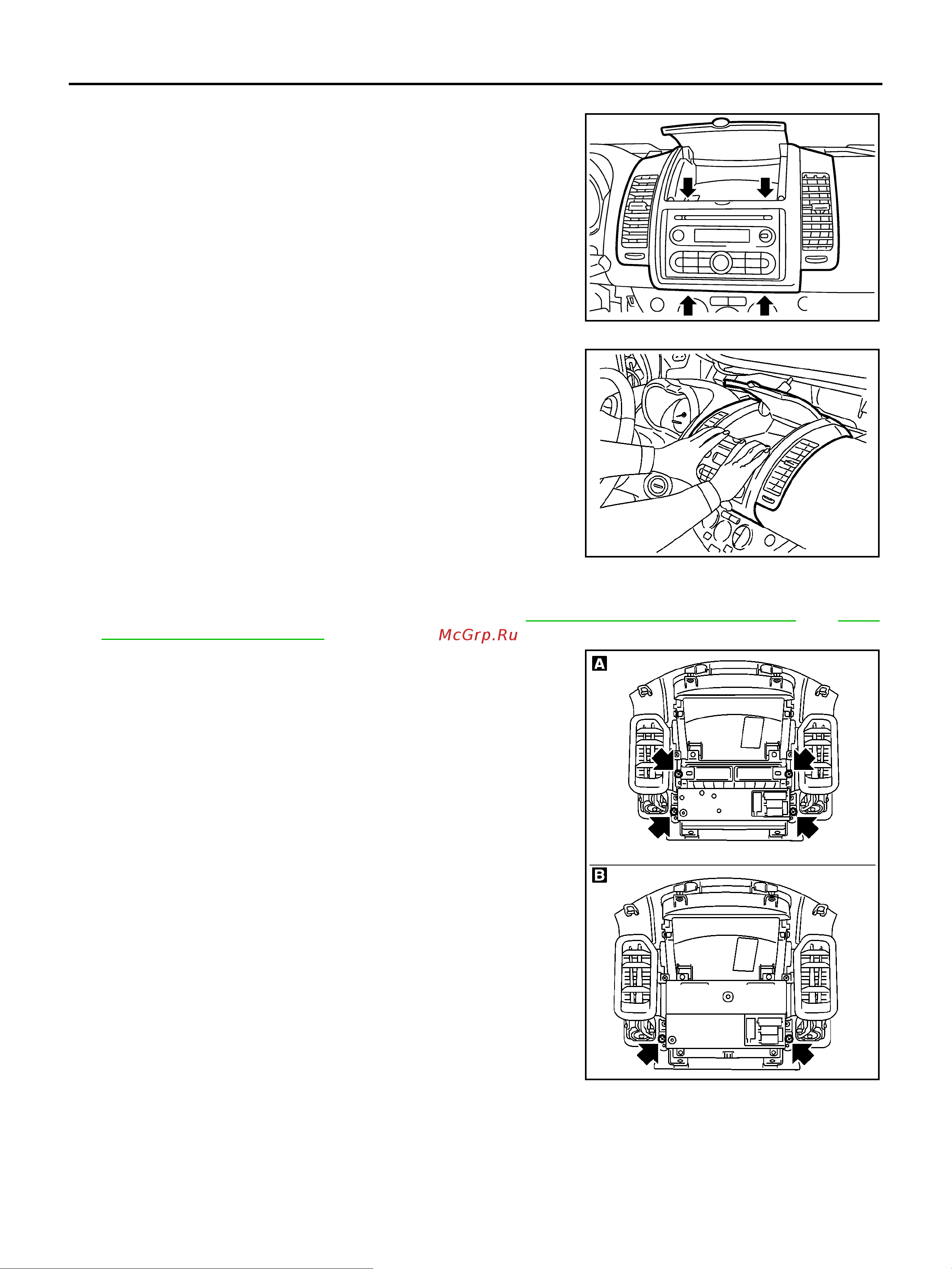

IP-8
INSTRUMENT PANEL ASSEMBLY
K. Cluster Lid C
1. Remove cluster lid C upper mask and remove upper fixing
screws.
2. Remove cluster lid C lower mask and remove lower fixing
screws.
3. Pull rearward to release the cluster lid from instrument panel
and pad.
4. Disconnect antenna connector and audio harness connector.
After removal:
● Separate the central ventilator grille LH and RH. Refer to ATC-130, "Removal and Installation" and MTC-
76, "Removal and Installation" .
● For (A) audio unit models, remove screws (4) securing audio
unit bracket LH and RH to release deck pocket and audio unit.
● For (B) audio unit models, remove screws (2) securing audio
unit bracket LH and RH to release audio unit.
MIIB9313E
MIIB9314E
MIIB9311E
