FRONT SEAT
SE-7
C
D
E
F
G
H
J
K
L
M
A
B
SE
FRONT SEAT PFP:87000

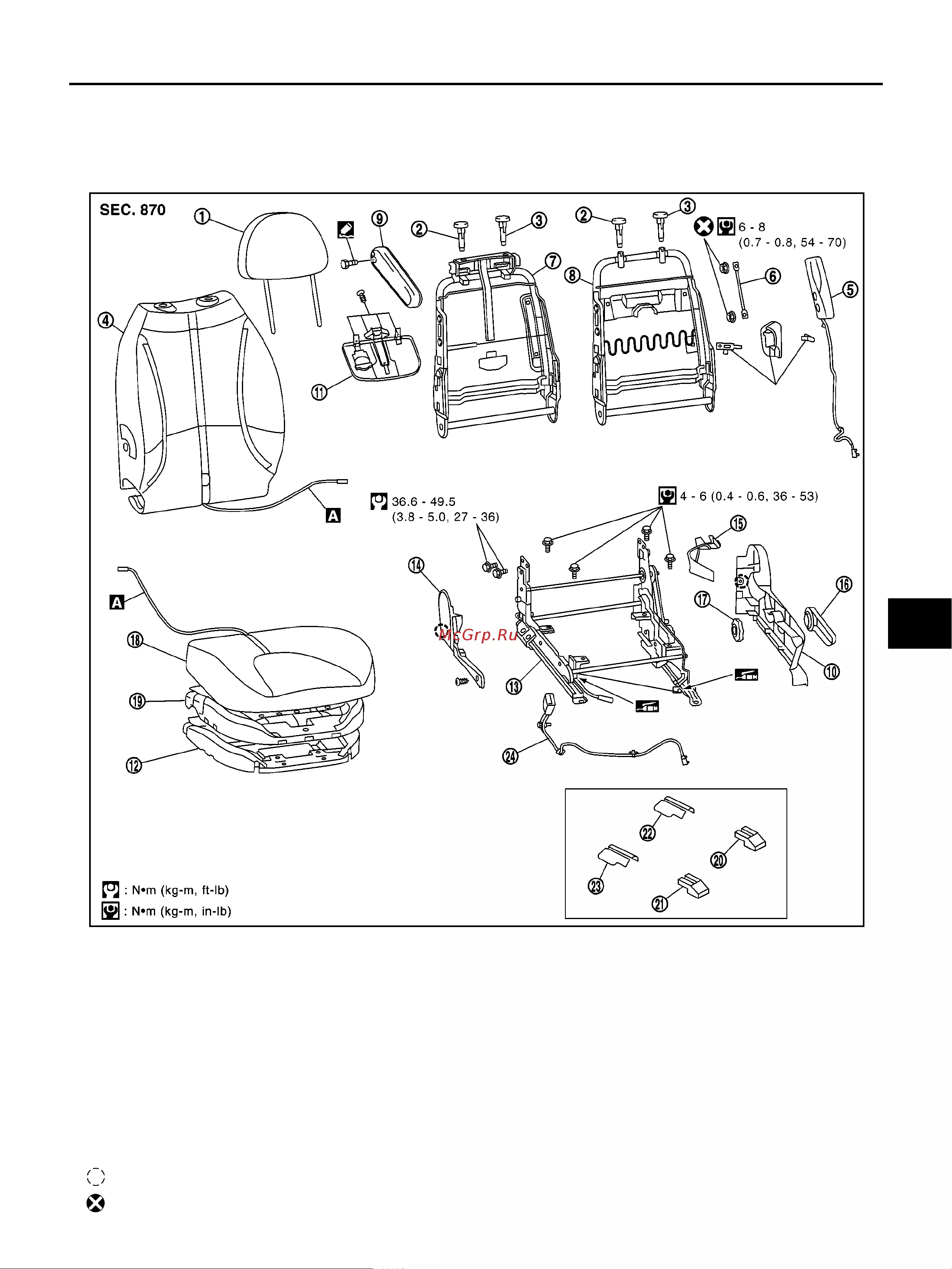

Component Parts Location
BIS000U9
CAUTION:
When removing and installing seats, use shop cloths to protect the parts from damage.
1. Headrest 2. Headrest holder (free) 3. Headrest holder (locked)
4. Seatback trim & pad 5. Side air bag module* 6. Fixed inner cross rod*
7. Seatback frame (with active head rest) 8.
Seatback frame
(without active head rest)
9. Armrest (driver only)
10. Seat slide outer finisher 11. Back table 12. Cushion pan undercover
13. Seat slide assembly 14. Seat slide inner finisher 15. Reclining inner finisher
16. Seat lifter lever 17. Reclining dial 18. Seat cushion trim & pad
19. Seat cushion frame 20. Front leg cover (inner) 21. Front leg cover (outer)
22. Rear leg cover (inner) 23. Rear leg cover (outer) 24. Belt buckle assembly**
*: Refer to SRS section (if equipped)
**: Refer to SB section
:Clip
: Always replace after every disassembly
MIIB9345E
