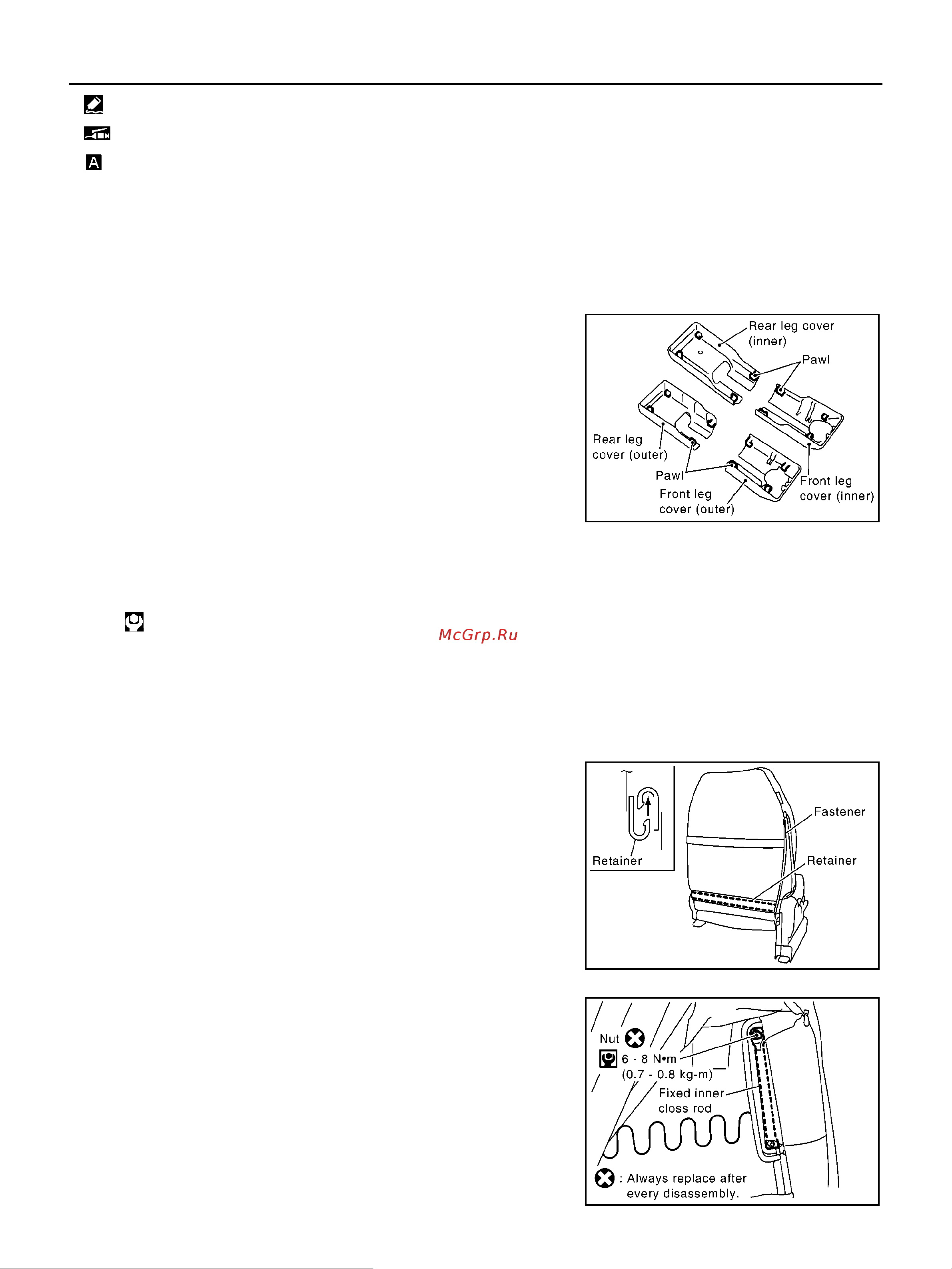

SE-8
FRONT SEAT
Removal and Installation
BIS000UA
REMOVAL
CAUTION:
Disconnect both battery cables, and wait at least 3 minutes before beginning work.
1. Remove side air bag module connector and seatbelt buckle switch harness connector and heated seat
connectors (if equipped).
2. Remove front and rear leg covers.
3. Remove bolts (4), and remove seat from vehicle.
4. Remove headrest.
CAUTION:
When removing and installing, use shop cloths to protect
parts from damage and interference.
INSTALLATION
● Install in the reverse order of removal.
● Tighten front seat mounting bolts to the torque.
CAUTION:
When removing and installing, use shop cloths to protect parts from damage and interference.
Disassembly and Assembly of Seatback
BIS000UB
SEATBACK TRIM PAD
Disassembly
1. Unfasten seatback fastener. (Vehicles with side air bags)
2. Remove retainer.
3. Turn over seatback trim, remove nuts (2), and remove fixed
inner cross rod. (Vehicles with side air bags)
: Sealing point
: Use recommended multi-purpose grease.
: Heated seat harness connector (if equipped)
MIIB0034E
: 46.6 N·m (4.8 kg-m, 34 ft-lb)
MIIB0035E
MIIB9097E
