FRONT SEAT
SE-9
C
D
E
F
G
H
J
K
L
M
A
B
SE

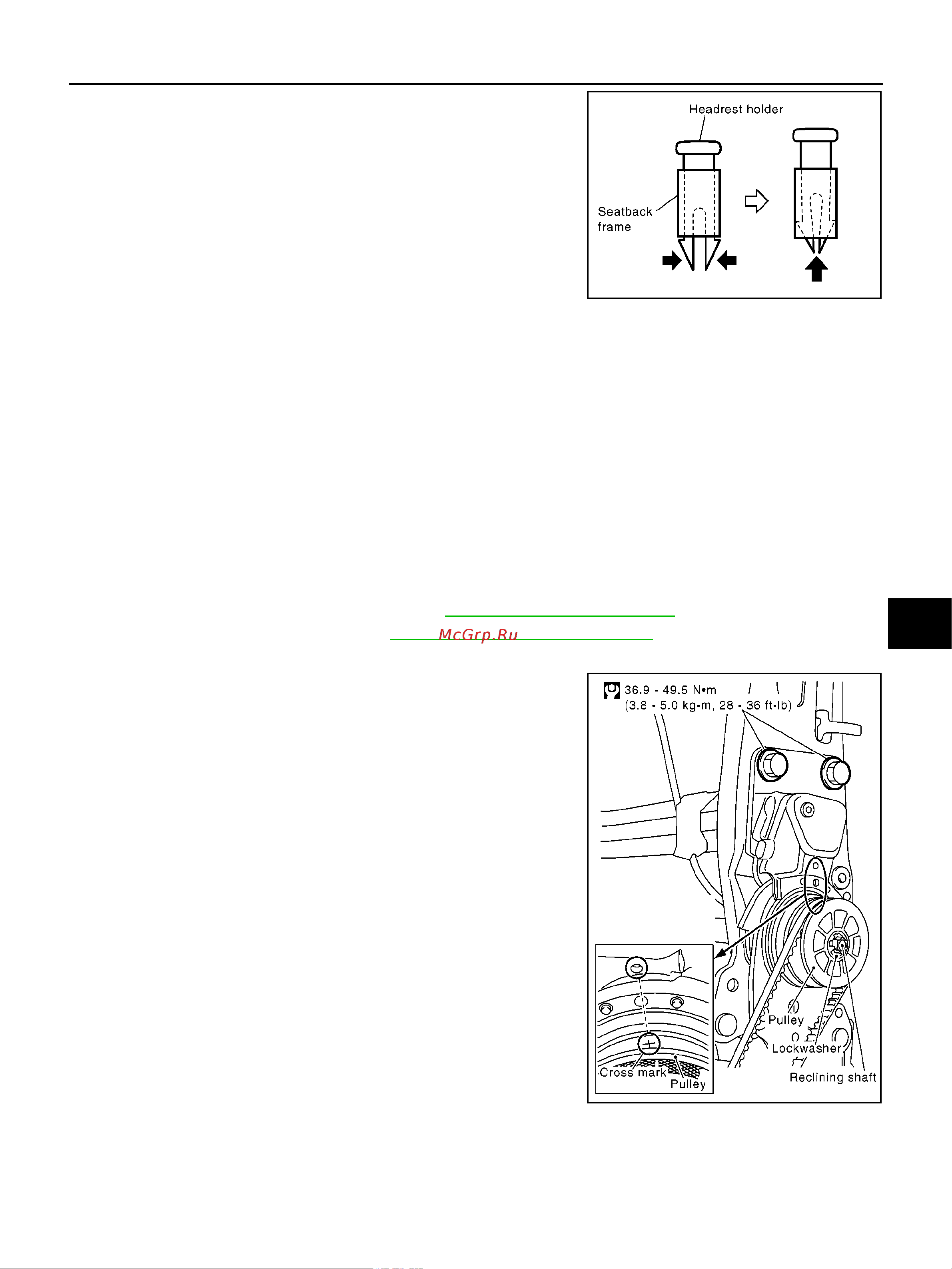

4. Use pincers, etc., to push up hooks shown by the arrows in the
figure, and remove headrest holder from seatback.
5. Remove seatback trim and pad from seatback frame.
Assembly
Install in the reverse order of removal.
CAUTION:
Before installing headrest holder, check its orientation (front/rear and right/left).
SEATBACK FRAME
Disassembly
1. Remove seatback trim&pad.
2. Pull out side air bag connector from back of seat cushion.
3. Remove seat lifter lever, reclining dial, seat slide out finisher, slide inner cover, and seat slide inner fin-
isher.
4. Remove seatback frame bolts and remove seatback frame from seat slide assembly.
CAUTION:
When removing or installing, use safety gloves to protect hands and seat cushion.
5. Remove seatback seat trim and pad. Refer to SE-8, "
SEATBACK TRIM PAD" .
6. Remove side air bag module. Refer to SRS-42, "
Removal and Installation" .
7. Remove seat slide inner finisher.
8. Remove fixing lockwasher from reclining shaft, then remove
reclining shaft and pulley from seatback frame.
9. Remove fixing bolts from seatback frame, then remove seatback
frame.
MIIB0037E
MIIB9207E
