SRS-4
PREPARATION
PREPARATION
PFP:00002

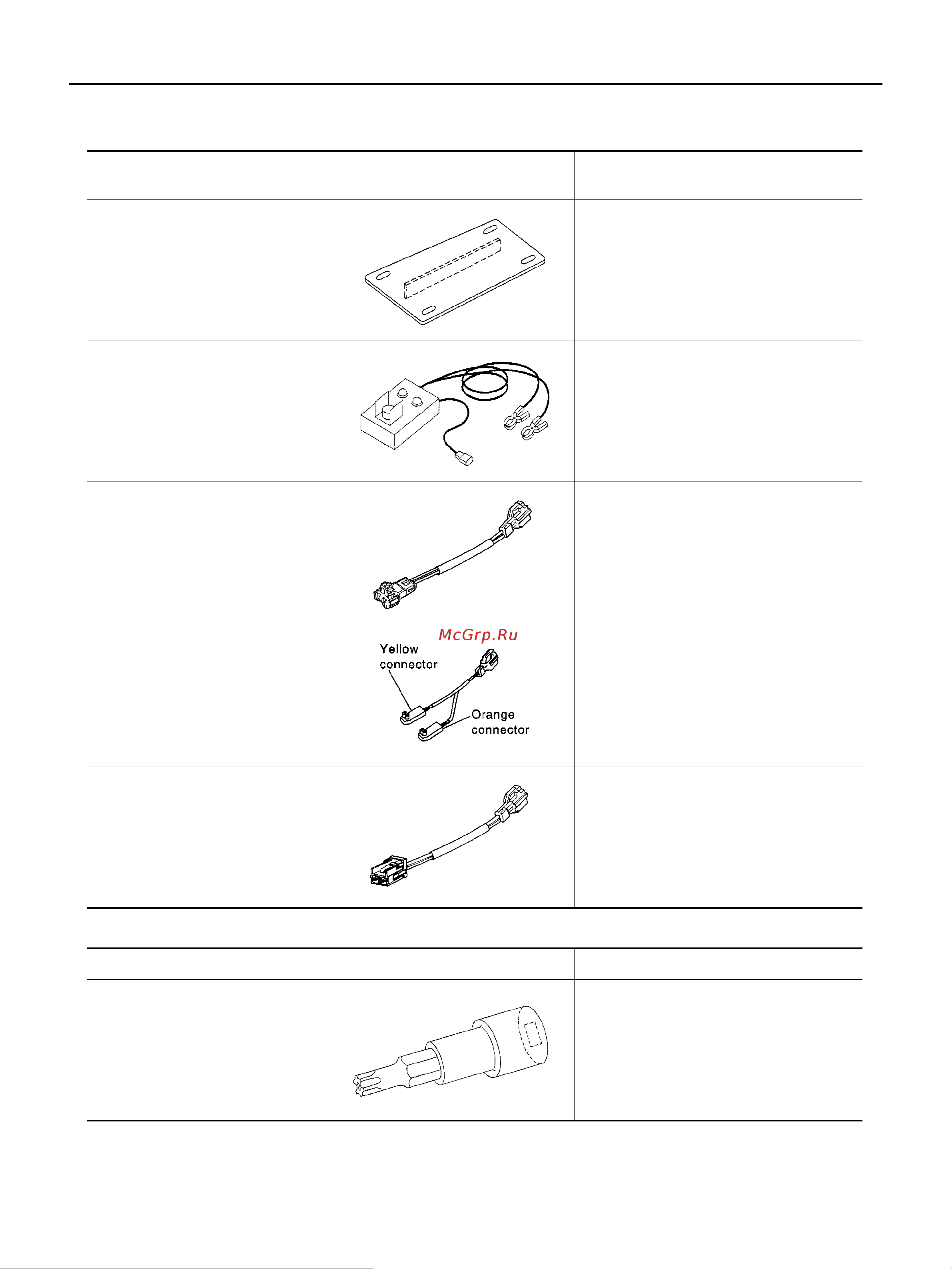

Special Service Tools
BHS0002U
Commercial Service Tools
BHS0002V
Tool number
Tool name
Application
KV99105300
Air bag module bracket
Anchoring air bag module
KV99106400
Deployment tool
Disposing of air bag module
KV99109700
Deployment tool adapter for front
passenger air bag module
Connection between the deployment tool
and front passenger air bag module
KV99110500
● Deployment tool adapter for pre-
tensioner seat belt module
● Deployment tool adapter for
driver air bag mmodule
● Deployment tool adapter for side
curtain air bag module
● Connection between the deployment tool
and pre-tensioner seat belt
● Connection between the deployment tool
and driver air bag module
● Connection between the deployment tool
and side curtain air bag module
KV99108300
Deployment tool adapter for front
side air bag module
Connection between the deployment tool
and front side air bag module
S-NT354
S-NT357
SHIA0038J
PHIA0184E
ZZA1166D
Tool name Application
Tamper resistant TORX bit Size: T30
S-NT757
