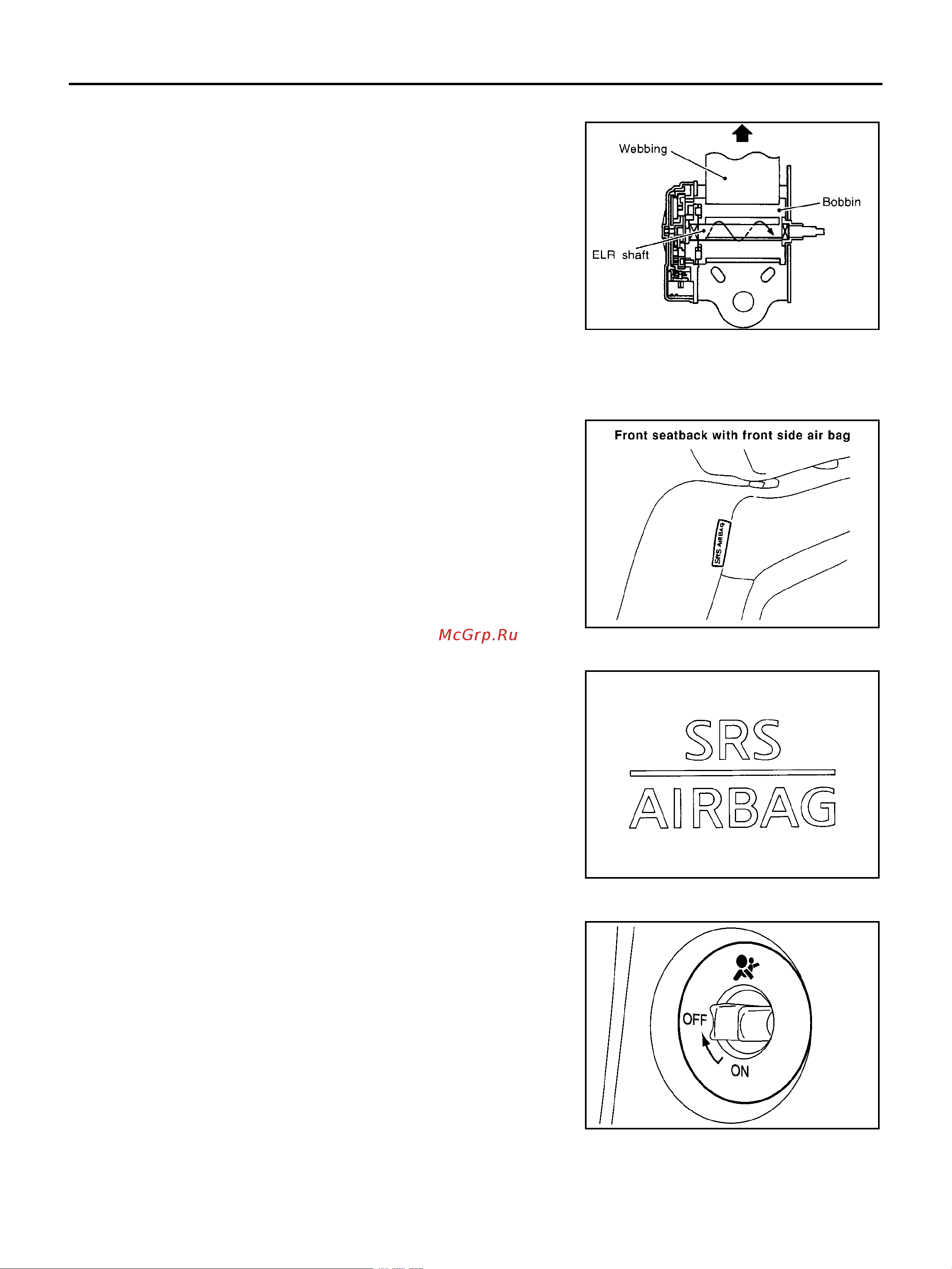

SRS-6
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Front Seat Belt Pre-tensioner with Load Limiter
BHS0002X
The seat belt pre-tensioner system with load limiter is installed for
both the driver's seat and the front passenger's seat. It operates
simultaneously with the SRS air bag system in the event of a frontal
collision with an impact exceeding a specified level.
When the frontal collision with an impact exceeding a specified level
occurs, seat belt slack resulting from clothing or other factors is
immediately taken up by the pre-tensioner. Vehicle passengers are
securely restrained.
When passengers in a vehicle are thrown forward in a collision and
the restraining force of the seat belt exceeds a specified level, the
load limiter permits the specified extension of the seat belt by the
twisting of the ELR shaft, and a relaxation of the chest-area seat belt
web tension while maintaining force.
FrontSideAirBag
BHS0002Y
Front side air bag is built-in type.
The front seatbacks with built-in type side air bag have the labels as
shown.
Side Curtain Air Bag
BHS0002Z
The side curtain air bags have the labels as shown.
Front Passenger Air Bag Cut OFF Switch
BHS00030
Operating the front passenger air bag cut OFF switch to ON or OFF
position will switch the front air bag to armed or disarmed state.
The front passenger air bag cut OFF switch is located in right hand
side of the instrument side mask for LHD model. (And oppositely for
the RHD model)
SRS444
SHIA0170E
PHIA0850J
MHIB0118E
