22 English
ERROR DISPLAYVI
If there is error during running of the system, LCD will
display error code at temperature–displayed location. Once many
multiple circuit systems, the circuit number of failed system will be
displayed before the colon (not for single system).
If error occurs, please turn off the unit and ask profession-
als for help.

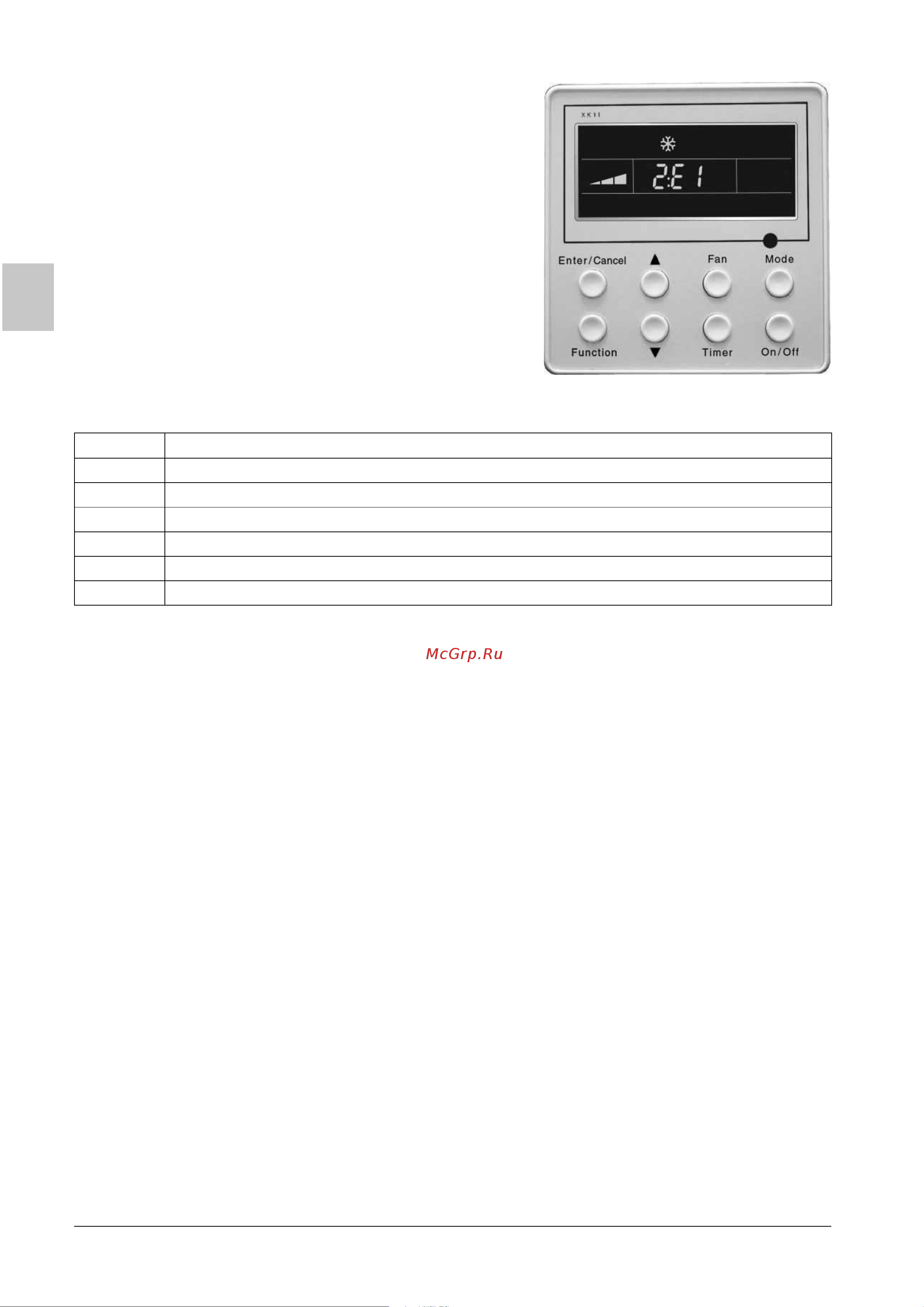

As shown in Fig.6.1, it means high pressure protection of system
2 under unit on.
Error code meaning:
Error code Error
E2 Indoor anti-freezing protection
E6 Communication error
E9 Water overfl ow protection
F0 Indoor unit ambient sensor error at air return opening
F1 Evaporator sensor error
F5 Ambient sensor error on Displayer (or LED board)
6.1Fig.
errors, error codes will be displayed circularly. If there are
