English 25
DIMENSIONS OF INDOOR UNIT AND OUTDOOR UNITVIII
8.1 Dimensions of Indoor Unit

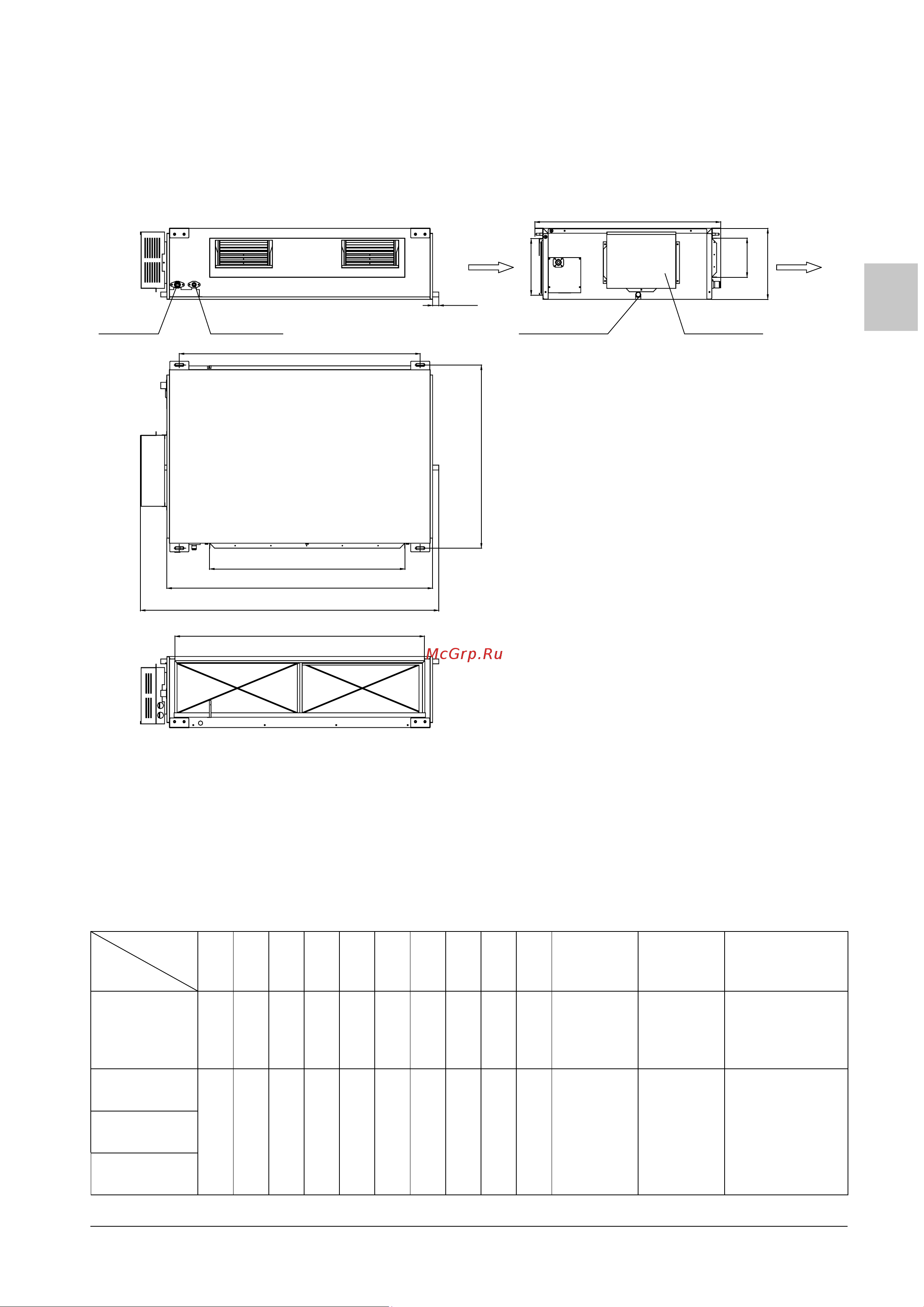

8.1.1 Dimensions of Indoor Unit
Gas Pipe Drainage Pipe
Air Intake Air Supply
26
I
A
C
D
E
G
B
H
J
Liquid Pipe Electric Box
F
8.1Fig.
For
FDM24PEVLK FDYM24PEVLK
FDM30PEVLK FDYM30PEVLK
FDM36PEVLK FDYM36PEVLK
FDM42PEVLK FDYM42PEVLK
FDM48PEVLK FDYM48PEVLK
Unit: mm
Item
Model
ABCDEFGH I J
(Liquid Pipe)
(Gas Pipe)
Drainage Pipe
(Outer Diameter ×
Wall Thickness)
FDM24PEVLK
FDYM24PEVLK
FDM30PEVLK
FDYM30PEVLK
1101 515 820 1159 1270 530 1002 160 235 268
φ9.52 φ15.9 φ20 × 1.2
FDM36PEVLK
FDYM36PEVLK
1011 748 820 1115 1226 775 979 160 231 290
φ12.7 φ19.05 φ20 × 1.2
FDM42PEVLK
FDYM42PEVLK
FDM48PEVLK
FDYM48PEVLK
the Refrige-
rant Pipe
the Refrige-
rant Pipe
