GA-8VT880P Combo Motherboard - 72 -
English

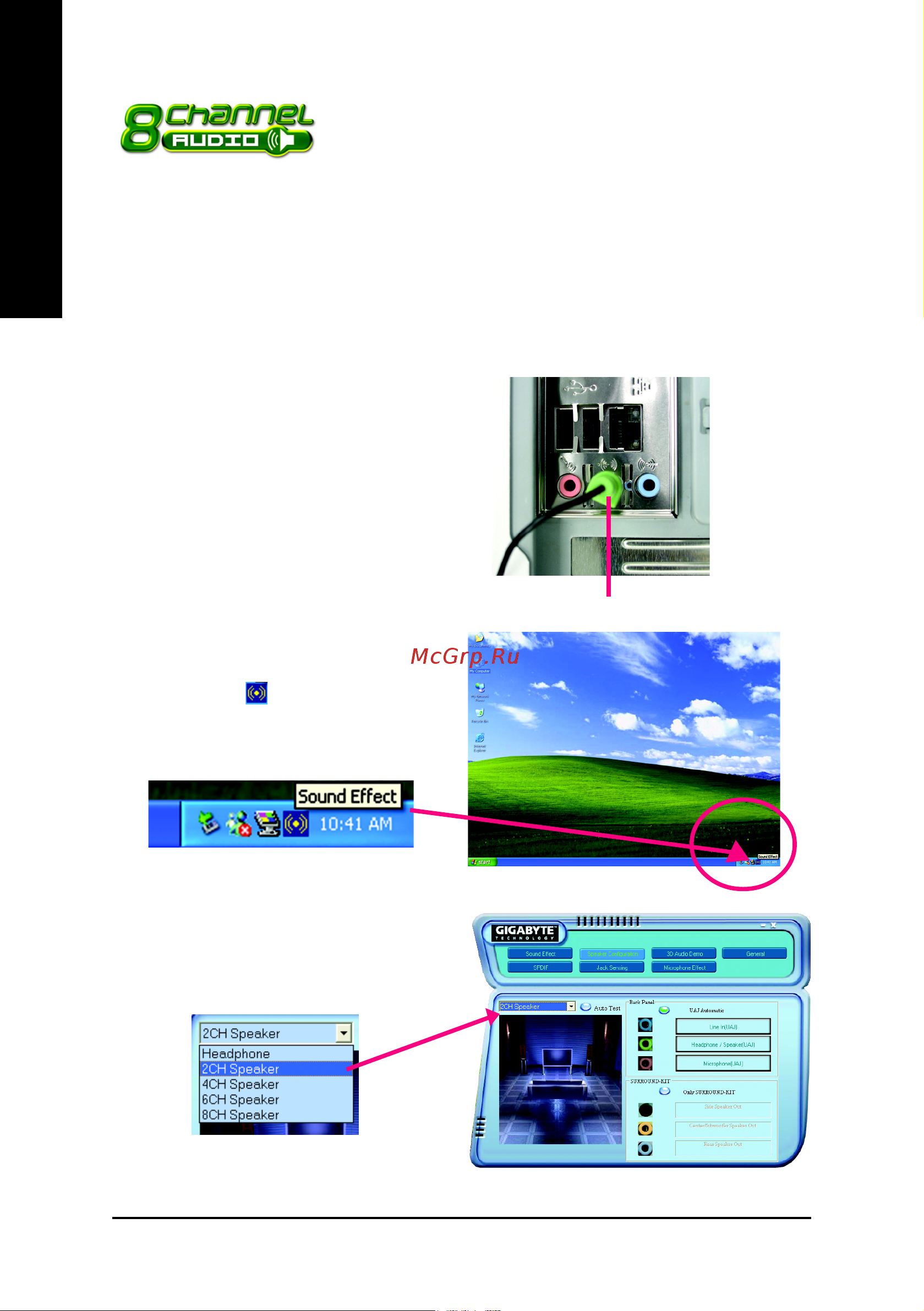

4-1-5 2 / 4 / 6 / 8 Channel Audio Function Introduction
Stereo Speakers Connection and Settings:
We recommend that you use the speaker with amplifier to acqiire the best sound effect if the stereo output is
applied.
STEP 1:
Connect the stereo speakers or earphone to "Line
Out".
The installation of windows 98SE/2K/ME/XP is very simple. Please follow next step to install the function!
Line Out
STEP 2 :
Following installation of the audio driver, you find a
icon a Sound Effect icon on the lower right hand
taskbar. Click the icon to select the function.
STEP 3:
Click "Speaker Configuration" then click on the left
selection bar and select "2CH Speaker" to complete
2 channel audio configuration.
