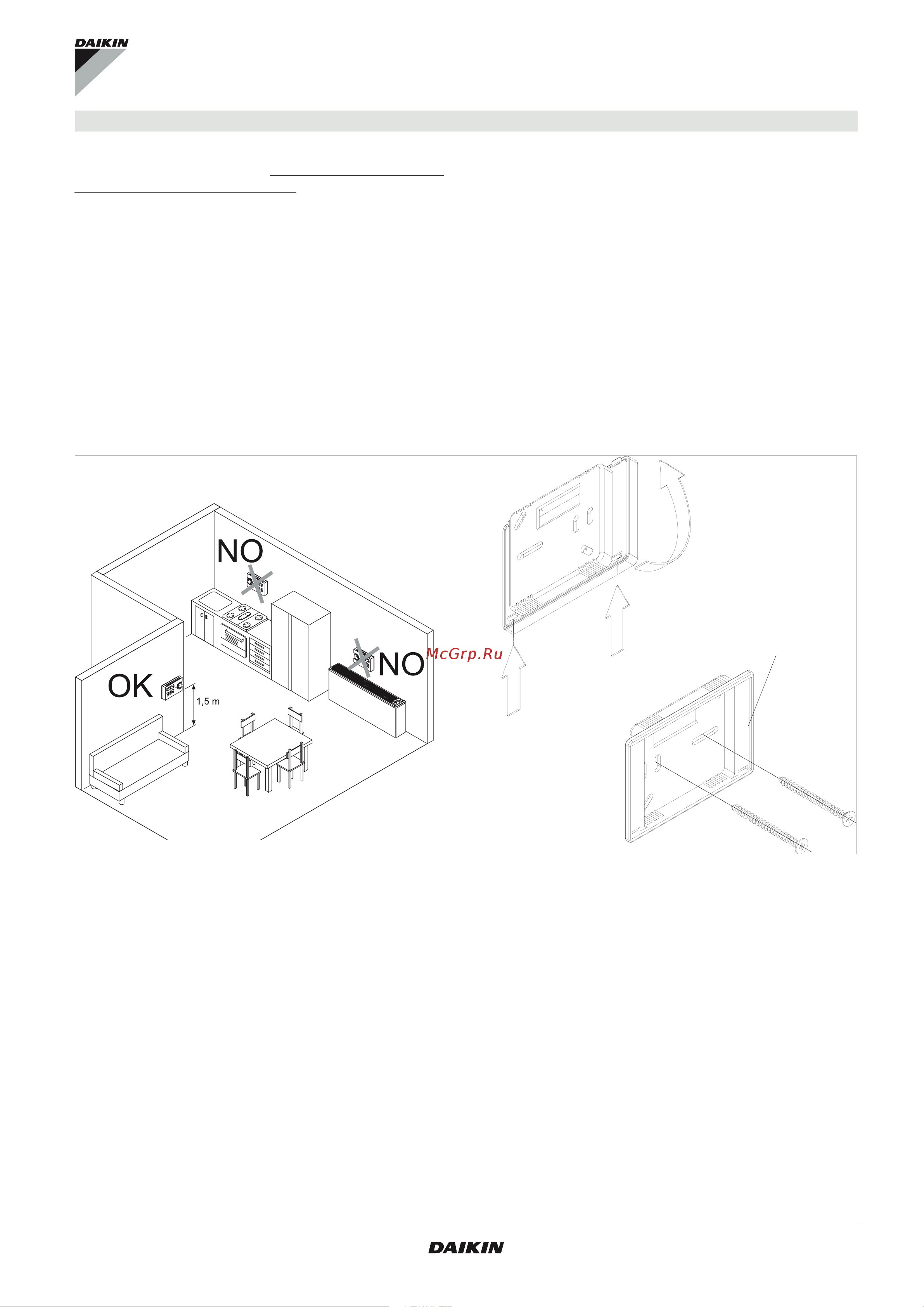

8 mm

0,2-1,5 mm

Spring clamps -AB+ and CP connection

The spring terminals intended for the electrical connections

are compatible with 0.2 to 1.5 mm² section rigid or flexible

cables, while if they are provided with lugs with plastic

collar, their maximum section is reduced to 0.75 mm².

For correct and secure connection follow the operations

below:

- strip the cable by 8 mm as shown below;

- if the cable is rigid you should be able to insert its end

easily, while if it is flexible you should use a pair of

nose grippers;

- insert the cables completely and make sure they are

properly fixed by pulling them slightly;

To disconnect the cables use a screwdriver to press the

corresponding white notch (ref.C) and remove the

conductor.

CP presence contact input connection

When the contact connected to the CP (ref. A) input is

closed, all the convectors connected will be switched off.

The input cannot be connected in parallel to one of another

electronic board (use separate contacts).
