EKHBRD011~016ADV17+Y17
Indoor unit for air to water heat pump system
4P402191-1B – 2017.09
Installation manual
8

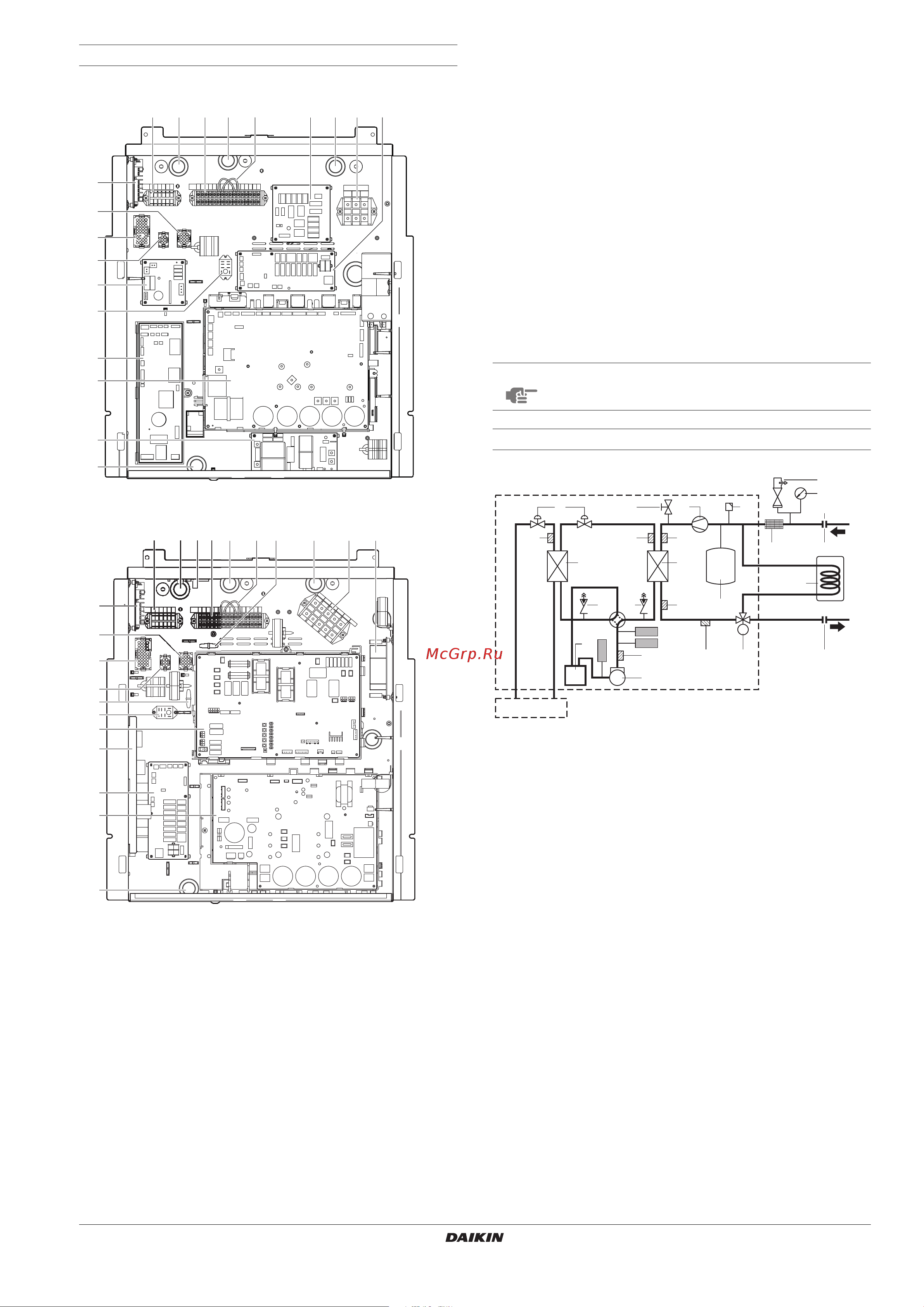

Switch box main components
V17 unit types (1-phase)
Y17 unit types (3-phase)
1. Main PCB
The main PCB (Printed Circuit Board) controls the functioning of
the unit.
2. Control PCB
3. Inverter PCB
4. Inverter control PCB (only Y17)
5. QA PCB (only V17)
6. Filter PCB
7. Digital I/O PCB (optional)
8. Demand PCB (optional)
9. Terminal block X1M
Main terminal block which allows easy connection of field wiring
for power supply.
10. Terminal block X3M
Field wiring terminal block for low voltage connections.
11. Terminal block X2M
Field wiring terminal block for high voltage connections.
12. Low voltage connector X1Y
13. Pump connector X2Y
14. High voltage connector X3Y
15. Cable tie mountings
The cable tie mountings allow to fix the field wiring with cable
ties to the switch box to ensure strain relief.
16. Power wiring entry
17. High voltage field wiring entry
18. Low voltage field wiring entry
19. Compressor cable entry
20. Interface relay K1A
21. Wiring bridges
22. Fuse F1 (only Y17)
23. Fuse F2 (only Y17)
Functional diagram
8
12
20
19
14
13
1
3
5
9
16171810 11
6
721 2
8
12
20
19
14
13
1
2
3
4
6
16171810 911
23
21 227
NOTE
The electrical connection diagram can be found on the
inside of the switch box cover.
1 Outdoor unit 16 Fill valve (field supply)
2 Indoor unit 17 Shut-off valve water inlet
3 Refrigerant-refrigerant
heat exchanger
18 Shut-off valve water outlet
19 Domestic hot water tank
(optional)4 Accumulator
5 Compressor 20 Motorized 3-way valve
(optional)
6 Service port
7 Refrigerant-water heat
exchanger
21 Thermal cut-out (Q2L)
22 High pressure switch (S1PH)
8 Drain valve 23 High pressure sensor (B1PH)
9 Electronic expansion
valve
24 Low pressure sensor (B1PL)
25 Discharge thermistor (R6T)
10 Pressure relief valve 26 Leaving water thermistor (R5T)
11 Pump 27 Returning water thermistor
(R4T)
12 Air purge valve
13 Manometer 28 Liquid thermistor R134a (R7T)
14 Expansion vessel 29 Liquid thermistor R410A (R3T)
15 Water filter
M
1
2
3
89
2829
12
27
11
21
6
4
7
14
15 17
19
16
25
5
6
22
23
24
26 20 18
13
10
