Installation manual 4

An optional ekbuh heater kit can be combined with the indoor unit purpose is to provide an additional heating capacity during cold outdoor temperatures the heater kit has a heating capacity of 6 kw and available for both 1 phase and 3 phase power supply speciﬁcations when using this heater kit installation of the optional demand pcb is required as well 5

An optional ekrp1ahta demand pcb can be connected to the indoor unit this pcb is needed when the optional heater kit ekbuh or daikin room thermostat ekrtr or ekrtw is installed or when multiple set point control is used and provides the communication with the indoor unit 5

An optional ekrp1hba digital i o pcb can be connected to the indoor unit and be used to remotely monitor your system this address card offers 3 voltage free outputs 5

An optional room thermostat ekrtr or ekrtw can be connected to the indoor unit 5

An optional secondary ekruahta remote controller with room thermostat functionality can be connected to the indoor unit purpose is to provide the possibility to install the standard remote controller near the unit for service reasons and install another remote controller in another place e g living room to operate your installation 5

Application examples with only 1 heat emitter and 1 heat source ekhbrd unit 5

Demand pcb option 5

Digital i o pcb option 5

Heater kit option 5

I application 1 5

If only 1 heat emitter all system has 1 water set point it is recommended not to use a balancing bottle 5

If this option is installed it is not possible to use the remote controller thermostat function 5

Indoor unit 5

Installation of the ersq or errq heat pump outdoor is described in the outdoor unit installation manual 5

Model identiﬁcation 5

Operation of the indoor unit is described in the indoor unit operation manual 5

Refer to the demand pcb installation manual for further details 5

Refer to the heater kit installation manual for further details 5

Refer to the installation of the remote controller on page 17 for further details 5

Refer to the operation manual of the indoor unit and to the digital i o pcb installation manual for more information 5

Refer to the room thermostat installation manual for further details 5

Refer to the wiring diagram or connection diagram for connecting this pcb to the unit 5

Remote controller option 5

Room thermostat option 5

Scope of this manual 5

Space heating and domestic hot water heating with a single remote controller installed in the living room 5

The application examples given below are for illustration purposes only 5

This installation manual describes the procedures for handling installing and connecting all ekhbrd indoor unit models 5

Typical application examples 5

Using a balancing bottle will affect the optimal pump control of the unit and will increase the cost of the system unnecessarily 5

I application 2 6

I application 3 6

Optionally the daikin room thermostat ekrtr or ekrtw can be connected to the daikin system daikin can not guarantee neither good operation nor reliability of the system if another thermostat is used for those reasons daikin can not give warranty of the system in such case 6

Refer to the chapter electrical wiring work on page 15 about connecting the master and slave remote controller 6

Space heating and domestic hot water heating with a single remote controller installed with the unit and the external room thermostat installed in the living room 6

Space heating and domestic hot water heating with one remote controller installed with the unit and another remote controller installed in the living room 6

The remote controller gives immediate feedback to the indoor unit and by doing so it matches in a smart way the unit performance to the demanded space heating requirements in this way there is no frequent start stop of the unit or there are no too big temperature ﬂuctuations in the to be heated rooms this remote controller has also a smart logic functionality which controls the combined space heating and domestic hot water demand e g if room temperature drops more than 3 c during domestic hot water operation the unit will automatically switch back to space heating the main remote controller c1 is installed in the living room and can access all settings master the second remote controller c2 can not access schedule and ﬁeld settings slave 6

The remote controller gives immediate feedback to the indoor unit and by doing so it matches in a smart way the unit performance to the demanded space heating requirements in this way there is no frequent start stop of the unit or there are no too big temperature ﬂuctuations in the to be heated rooms this remote controller has also a smart logic functionality which controls the combined space heating and domestic hot water demand e g if room temperature drops more than 3 c during domestic hot water operation the unit will automatically switch back to space heating there is no remote controller near the unit during service maintenance an additional remote controller can be connected by a service person 6

There is only a room thermostat on off control there is no smart logic functionality for space heating when there is simultaneous demand of space heating and domestic hot water the domestic hot water operation is performed according to the minimum and maximum timer operation 6

Application examples with 2 or more different heat emitters and 1 heat source ekhbrd unit 7

I application 4 7

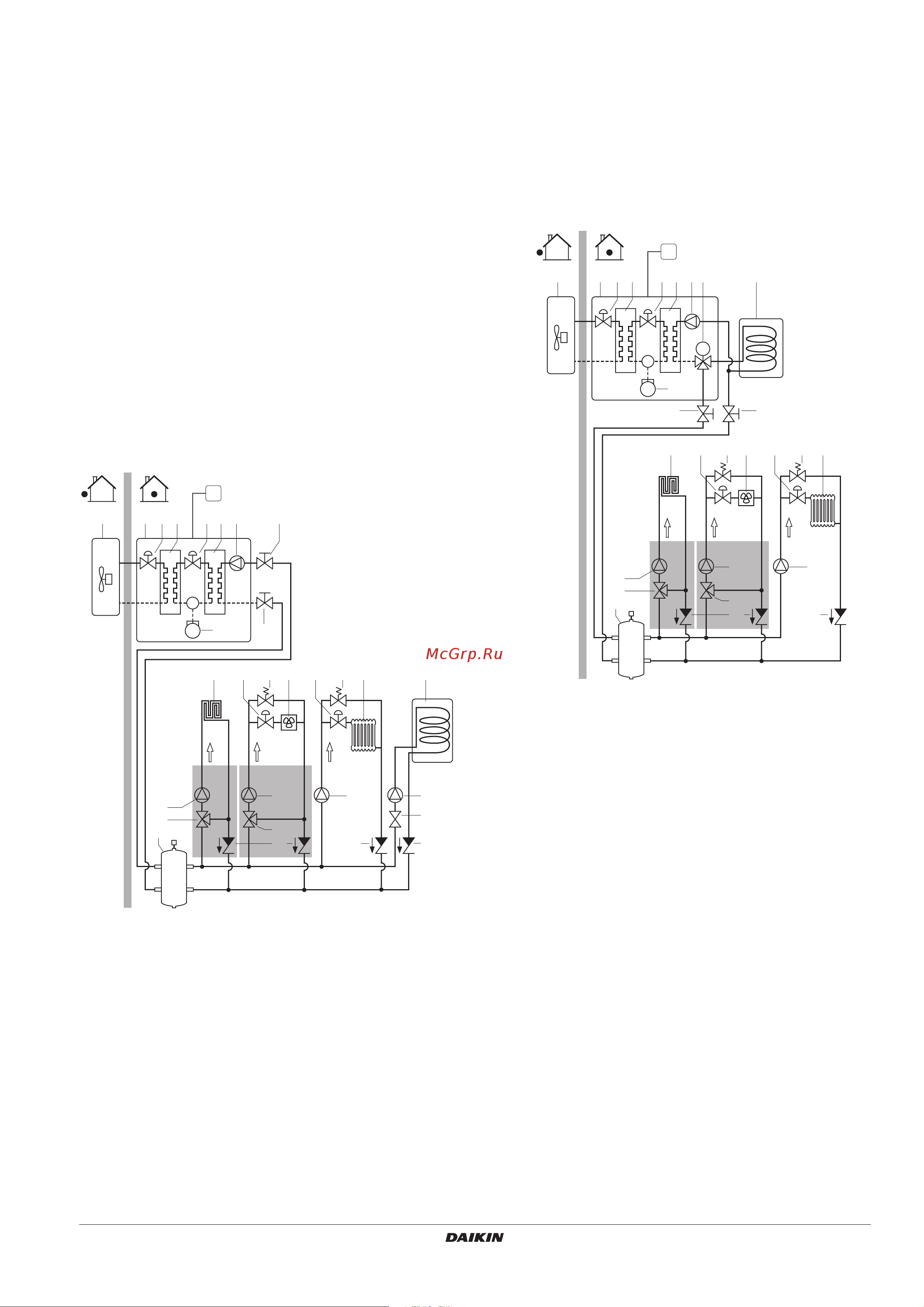

I pattern a the domestic hot water tank is installed in parallel with the temperature reducing device s this allows operating the unit in space heating and domestic water heating simultaneously the balancing of the water distribution is in this case the responsibility of the installer 7

I pattern b the domestic hot water tank is installed in a separate circuit with a 3 way valve of the temperature reducing device s this conﬁguration does not allow simultaneous domestic hot water and space heating operation 7

Refer to the chapter multiple set point control on page 29 for more information about the conﬁguration of your system 7

Space heating provided through a combination of ﬂoor heating loops fan coil unit and radiator heating for ﬂoor heating applications in combination with radiators the water temperature delivered by the daikin system is too high for this reason a temperature reducing device ﬁeld supply is required to lower the water temperature the hot water will be mixed with cold water to lower the temperature the control of this ﬁeld supplied valve is not done by the heat pump system the operation and conﬁguration of the ﬁeld water circuit and selection of the balancing bottle the pumps etc are the responsibility of the installer daikin only offers the possibility to have multiple set points on request 7

Such installations must be done using a balancing bottle and each kind of heat emitter should have a speciﬁc pump 7

Using different heat emitters means using different water set points for the system 7

Application examples with 2 different heat sources auxiliary boiler ekhbrd unit 8

Bivalent operation is only possible for space heating operation not for the domestic hot water heating operation domestic hot water in such an application is always provided by the domestic hot water tank which is connected to the daikin indoor unit 8

Daikin shall not be held liable for any damage resulting from failure to observe this rule 8

During heating operation of the boiler the boiler will operate so as to achieve the target leaving water temperature as set on the boiler controller 8

For this reason never put the target leaving water temperature set point on the boiler controller above 80 c and install an aquasta 8

Frequent switching may cause corrosion of the boiler in an early stage contact the manufacturer of the boiler 8

I application 5 8

I be sure that the boiler and the integration of the boiler in the system is in accordance with relevant european and national regulations 8

I daikin can not be put responsible for incorrect or unsafe situations in the boiler system 8

I during heating operation of the ekhbrd unit the unit will operate so as to achieve the target leaving water temperature as set on the user interface when weather dependent operation is active the water temperature is determined automatically depending on the outdoor temperature 8

I field wiring 8

I make sure that auxiliary contact c has sufﬁcient differential or time delay so as to avoid frequent changeover between the ekhbrd unit and the boiler if the auxiliary contact c is an outdoor temperature thermostat make sure to install the thermostat in the shade so that it is not inﬂuenced or turned on off by the sun 8

I operation when the room thermostat th closes either the ekhbrd unit or the boiler starts operating depending on the position of the auxiliary contact c 8

Make sure that return water to the ekhbrd heat exchanger never exceeds 80 c 8

Make sure that the non return valves ﬁeld supply are correctly installed in the system 8

Make sure that the room thermostat th is not frequently turned on off 8

Never set the target leaving water temperature set point on the boiler controller above 80 c 8

Space heating application by either the daikin indoor unit or by an auxiliary boiler connected in the system an auxiliary contact decides whether either the ekhbrd indoor unit or the boiler will operate this auxiliary contact can e g be an outdoor temperature thermostat an electricity tariff contact a manually operated contact etc 8

Space heating with an auxiliary boiler alternating operation 8

The auxiliary boiler must be integrated in the piping work and in the ﬁeld wiring according to the illustrations below 8

Valve in the return water ﬂow of the ekhbrd unit 8

When using 2 heat sources it is recommended to use a balancing bottle as follows 8

Design of the hydraulic system 9

Example of a high external static pressure system 9

I if the external static pressure of that pump is higher than the external static pressure of the air to water heat pump system please install an additional pump with higher external static pressure in combination with a balancing bottle 9

I please always check the speciﬁcations of the pump of the old unit 9

Pay special attention to the control of the circulation pump of the auxiliary boiler this pump should not operate simultaneously with the ekhbrd unit a simultaneous operation of both systems will risk the plate heat exchanger of the ekhbrd unit to freeze up 9

Simultaneous operation of the auxiliary boiler and the ekhbrd unit is not allowed 9

The pump will adjust its rpm rotations per minute as to control a ﬁxed t between return and leaving water temperature 9

This external static pressure graph is valid at maximum pump rpm 9

When designing the hydraulic system always consider the available external static pressure of the ekhbrd unit 9

When designing the hydraulic system always consult typical application examples on page 2 for references 9

When replacing an old gas or fuel oil boiler by a air to water heat pump system ekhbrd 9

Accessories supplied with this unit 10

Ccessories 10

Main components 10

Verview of the indoor unit 10

Functional diagram 11

Switch box main components 11

Dimensions and service space 12

Inspecting and handling the unit 12

Installing the indoor unit 12

Nstallation of the indoor unit 12

Selecting an installation location 12

Checking the water circuit 15

Guidelines for ﬂare connection 15

Iping connection work 15

Refrigerant piping work 15

Water piping work 15

Calculating the pre pressure of the expansion vessel 16

Check that the total water volume in the entire water circuit is lower than this value 16

Check that the total water volume in the installation excluding the internal water volume of the unit is 20 l minimum 16

Checking the maximum allowed water volume 16

Checking the water volume and expansion vessel pre pressure 16

Determine for the calculated pre pressure pg the corresponding maximum water volume using the graph below 16

Example 16

If this is not the case the expansion vessel inside the indoor unit is too small for the installation 16

In critical processes or in rooms with a high heat load though extra water volume might be required 16

In most applications this minimum water volume will have a satisfying result 16

Pg h 10 0 bar 16

The pre pressure pg to be set depends on the maximum installation height difference h and is calculated as below 16

The unit is equipped with an expansion vessel of 12 litre which has a default pre pressure of 1 bar 16

To assure proper operation of the unit the pre pressure of the expansion vessel might need to be adjusted and the minimum and maximum water volume must be checked 16

To determine the maximum allowed water volume in the entire circuit proceed as follows 16

Using the table and instructions below determine if the expansion vessel pre pressure requires adjustment and determine if the total water volume in the installation is below the maximum allowed water volume 16

When circulation in each space heating radiator loop is controlled by remotely controlled valves it is important that this minimum water volume of 20 l is kept even if all the valves are closed 16

Connecting the water circuit 17

Harging water 17

Method for adding water 17

Precautions when connecting ﬁeld piping and regarding insulation 17

Setting the pre pressure of the expansion vessel 17

Internal wiring parts table 18

Lectrical wiring work 18

Precautions on electrical wiring work 18

Switch box components list 18

After ﬁnishing the electric work conﬁrm that each electric part and terminal inside the electric parts box is connected securely 19

Cable requirements 19

Connection of the indoor unit power supply and communication cable s 19

I be sure to route all cables between the unit side plate and the wiring retention bar as shown in ﬁgure 3 19

I cable tie mountings are provided at the wiring entries of the switch box see switch box main components on page 8 19

I install the indoor and outdoor unit power supply cable and communication cable s at least 1 meter away from televisions or radios to prevent image interference or noise depending on the radio waves a distance of 1 meter may not be sufﬁcient to eliminate the noise 19

I most ﬁeld wiring on the indoor unit side is to be made on the terminal block inside the switch box to gain access to the terminal blocks remove switch box service panel refer to the unit switch box cover for instructions how to remove this panel and gain access to the inside of the switch box 19

I the electrical connection diagram can be found on the inside of the switch box cover 19

I to avoid receiving electric noise be sure that the cables are put in the correct bundle and routed in the correct bundle tray as shown in ﬁgure 3 19

I when wiring route the cable bundles that are outside the unit away from each other by at least 25 mm in order to avoid receiving electric noise external noise 19

Open the switch box cover 19

Open the unit and put the switch box in front of the unit as described in opening the unit on page 36 19

Procedure 19

Ps power supply see ﬁgure 3 lv low voltage see ﬁgure 3 hv high voltage see ﬁgure 3 19

R4t returning water thermistor r5t leaving water thermistor r6t discharge thermistor r7t liquid thermistor r134a r8t fin thermistor rc a p receiver circuit s1ph high pressure switch s1s beneﬁt kwh rate power supply contact ﬁeld supply s3s mixing station input 1 ﬁeld supply s4s mixing station input 2 ﬁeld supply ss1 a1p selector switch emergency ss1 a2p selector switch master slave ss1 a7p selector switch optional tc a p transmitter circuit t1r t2r a p diode bridge t3r power module v1c v8c ferrite core noise ﬁlter v1c v12c ferrite core noise ﬁlter x1m x3m terminal block x1y x4y connector x m a p terminal block on pcb optional y17r 4 way valve z1f z5f a p noise ﬁlter 19

Select all cables and wire sizes in accordance with relevant local and national regulations 19

System overview of ﬁeld wiring 19

Using the appropriate cable connect the power supply and communication cable s to the appropriate terminals as shown on the wiring diagram and according to ﬁgure 3 19

V17 models only y17 models only 19

Connection to a beneﬁt kwh rate power supply 20

Installation of the remote controller 20

For v17 unit types only 1 21

For y17 unit types only 3 21

In case of beneﬁt kwh rate power supply installation remove the wiring bridges on x2m before installing the normal kwh rate power supply 21

Possible connections and requirements to connect the equipment to such power supply are illustrated in the ﬁgures below 21

Possible types of beneﬁt kwh rate power supply 21

When parameter 6 04 1 at the moment that the beneﬁt kwh rate signal is sent by the electricity company that contact will open and the unit will go in forced off mod 21

When parameter 6 04 2 at the moment that the beneﬁt kwh rate signal is sent by the electricity company that contact will close and the unit will go in forced off mod 21

When the indoor and outdoor unit are connected to a beneﬁt kwh rate power supply the voltage free contact of the receiver controlling the beneﬁt kwh rate signal of the electricity company must be connected to clamps 7 and 8 of x3m as illustrated in the ﬁgure above 21

Field settings 22

Pre operation checks 22

Up and configuration 22

Detailed description 23

Procedure 23

In the following tables both methods on how to interpret the schedule timer are shown 24

Off on on 24

Operation example schedule timer based on on off instruction 24

Operation example schedule timer based on temperature set points 24

When setback function is enabled the setback operation will have priority over the scheduled action in the schedule timer 24

When setback function is enabled the setback operation will have priority over the scheduled action in the schedule timer if on instruction is active if off instruction is active this will have priority over the setback function at any time the off instruction will have the highest priority 24

Do not forget to restore the ﬁeld setting e 04 to the default value when commissioning is ﬁnished 29

I e 04 2 high pump speed operation if you select e 04 1 or 2 and 6 00 1 the unit will activate the domestic hot water 3 way valve this function is a helpful feature to get all air removed out of the system as well in space heating as in domestic hot water heating 29

On off 29

Reheat operation 29

Remote controller leaving water temperature control 29

See chapter final check on page 34 for more information 29

Simultaneous demand of space heating and domestic water heating 29

Storage operation 29

When requesting space heating and domestic water heating reheat at the same time the domestic water will be heated till maximum reheat temperature then space heating will start again 29

When requesting space heating and domestic water heating storage at the same time domestic water will be heated according to running timer then space heating will start again according to running timer then domestic water heating will start again according to running timer this will continue till storage set point is reached 29

When the reheat temperature is reached the further heat up till storage temperature of the domestic hot water tank will be decided by the running timers which are programmed by the installer 29

External room thermostat 30

On off 30

Reheat operation 30

Storage operation 30

When requesting space heating and domestic water heating reheat at the same time the domestic water will be heated till maximum reheat temperature then space heating will start again 30

When requesting space heating and domestic water heating storage at the same time domestic water will be heated according to running timer then space heating will start again according to running timer then domestic water heating will start again according to running timer this will continue till storage set point is reached 30

When the reheat temperature is reached the further heat up of the domestic hot water tank will be decided by the external room thermostat thermo conditions and running timers which are programmed by the installer 30

On off 31

Reheat operation 31

Remote controller room temperature control 31

Storage operation 31

When requesting space heating and domestic water heating reheat at the same time the domestic water will be heated till maximum reheat temperature then space heating will start again 31

When requesting space heating and domestic water heating storage at the same time domestic water will be heated but as soon as the room temperature drops 3 c from set point space heating will start till 0 c above set point then domestic water will be heated again till storage set point 31

When the reheat temperature is reached the further heat up till storage temperature of the domestic hot water tank will be decided by the remote controller room thermostat in order to prevent the room temperature to drop too much 31

Multiple set point control 32

Field settings table 35

Final check 37

Inal check and test run 37

Procedure for domestic water heating 37

Procedure for space heating 37

Temperature read out mode 37

Test run 37

Aintenance and service 38

Checks 38

General guidelines 38

Maintenance activities 38

Roubleshooting 38

General symptoms 39

I make sure to always ﬁx the cover with the screws when removing the switch box 39

I make sure to switch off all power supplies before removing the switch box from the unit 39

I parts inside the unit can be hot and burning is possible 39

I to facilitate access to the air purge valve thermal cut out 3 way valve thermistors ﬁeld wiring duct the top decoration panel of the unit can be removed by removing the 2 screws at the rear and then unhitch the panel both the drain plates can be removed 39

I to gain access to the indoor unit at the front side the total switch box can be removed from the unit 39

Loosen the front screws and unhitch the total switch box 39

Opening the unit 39

Switch off all power supply also outdoor unit power supply etc before removing the switch box service cover 39

The switch box can now be placed just before the indoor unit the compressor cable located at the backside of the unit can be untied to place the switch box further away from the unit 39

To remove the front decoration panel remove the 2 bottom screws and then unhitch the panel 39

A list of all errors and corrective actions can be found in the table below 40

Error codes 40

In case this procedure for resetting the safety is not successful contact your local dealer 40

Reset the safety by pushing the button 40

When a safety device is activated the user interface led will be ﬂashing and an error code will be displayed 40

Electrical speciﬁcations 41

Nit specifications 41

Technical speciﬁcations 41

General overview and guide to start up the unit 42

Domestic water heating 43

Simultaneous demand of space heating and domestic water heating 44

Daikin EKHBRD011ADY17 [7/48] Application examples with 2 or more different heat emitters and 1 heat source ekhbrd unit

Содержание

Похожие устройства
