Installation manual
3
EKHBRD011~016ADV17+Y17
Indoor unit for air to water heat pump system
4P402191-1B – 2017.09
The remote controller gives immediate feedback to the indoor
unit and by doing so it matches in a smart way the unit
performance to the demanded space heating requirements. In
this way there is no frequent start/stop of the unit or there are no
too big temperature fluctuations in the to be heated rooms. This
remote controller has also a smart logic functionality which
controls the combined space heating and domestic hot water
demand (e.g. if room temperature drops more than 3°C during
domestic hot water operation, the unit will automatically switch
back to space heating). There is no remote controller near the
unit. During service maintenance an additional remote controller
can be connected by a service person.

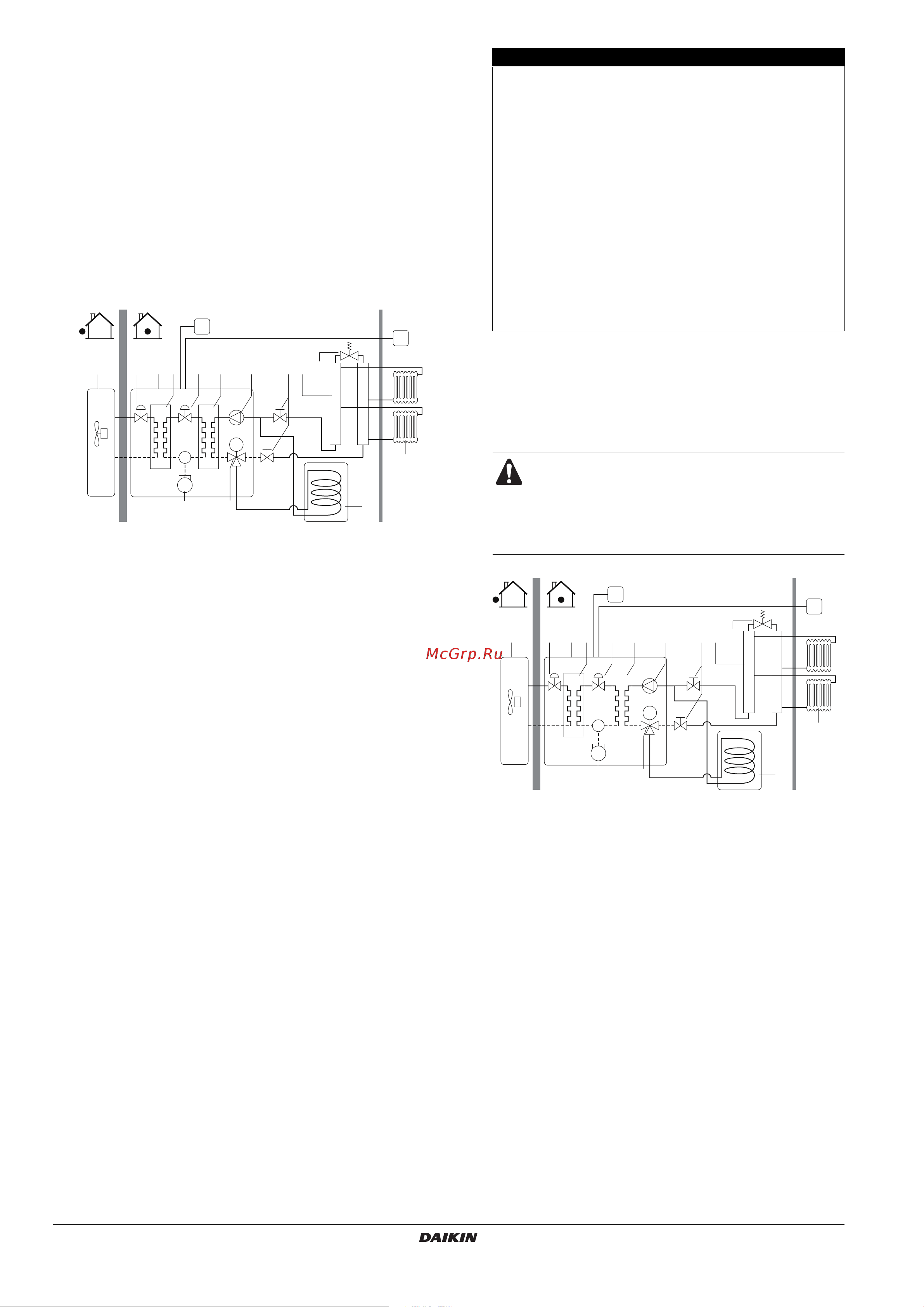

■ Application 2
Space heating and domestic hot water heating with one remote
controller installed with the unit, and another remote controller
installed in the living room.
The remote controller gives immediate feedback to the indoor
unit and by doing so it matches in a smart way the unit
performance to the demanded space heating requirements. In
this way there is no frequent start/stop of the unit or there are no
too big temperature fluctuations in the to be heated rooms. This
remote controller has also a smart logic functionality which
controls the combined space heating and domestic hot water
demand (e.g. if room temperature drops more than 3°C during
domestic hot water operation, the unit will automatically switch
back to space heating). The main remote controller (C1) is
installed in the living room and can access all settings (master).
The second remote controller (C2) can not access schedule and
field settings (slave).
Refer to the chapter "Electrical wiring work" on page 15 about
connecting the master and slave remote controller.
■ Application 3
Space heating and domestic hot water heating with a single
remote controller installed with the unit, and the external room
thermostat installed in the living room.
There is only a room thermostat on/off control. There is no smart
logic functionality for space heating. When there is simultaneous
demand of space heating and domestic hot water, the domestic
hot water operation is performed according to the minimum and
maximum timer operation.
1 Outdoor unit 10 Collector (field supply)
2 Indoor unit 11 Radiator (field supply)
3 Refrigerant heat
exchanger
12 Electronic expansion
valve
4 Water heat exchanger 13 By-pass valve (field
supply)
5 Compressor
6 Pump C1 Remote controller
(master)
7 Shut-off valve
8 Motorized 3-way valve
(optional)
C2 Optional remote
controller (slave)
9 Domestic hot water
tank (optional)
A Installation place
B Living room
10 13
C1
A B
C2
743 1212 21
8
6
5
M
11
9
Master Slave
Operation ON/OFF Operable Operable
Domestic water heating operation ON/OFF Operable Operable
Setting the leaving water temperature Operable Operable
Setting the room temperature Operable Operable
Quiet mode ON/OFF Operable Operable
Weather dependent set point operation
ON/OFF
Operable Operable
Setting the clock Operable Operable
Programming the schedule timer Operable —
Schedule timer operation ON/OFF Operable —
Field settings Operable —
Error code display Operable Operable
Test operation Operable Operable
Room thermostat functionality Operable —
Optionally the Daikin room thermostat EKRTR or
EKRTW can be connected to the Daikin system.
Daikin can not guarantee neither good operation nor
reliability of the system if another thermostat is used.
For those reasons Daikin can not give warranty of the
system in such case.
1 Outdoor unit 10 Collector (field supply)
2 Indoor unit 11 Radiator (field supply)
3 Refrigerant heat
exchanger
12 Electronic expansion
valve
4 Water heat exchanger 13 By-pass valve (field
supply)
5 Compressor
6 Pump C1 Remote controller
7 Shut-off valve T Room thermostat
8 Motorized 3-way valve
(optional)
A Installation place
B Living room
9 Domestic hot water
tank (optional)
C1
743 1212 21
8
6
5
M
11
9
10 13
T
A B
