Original instructions
Installation manual
13
We reserve the right to make changes without any prior notice.
UATYQ*Y1
Packaged Rooftop
4P522681-1B

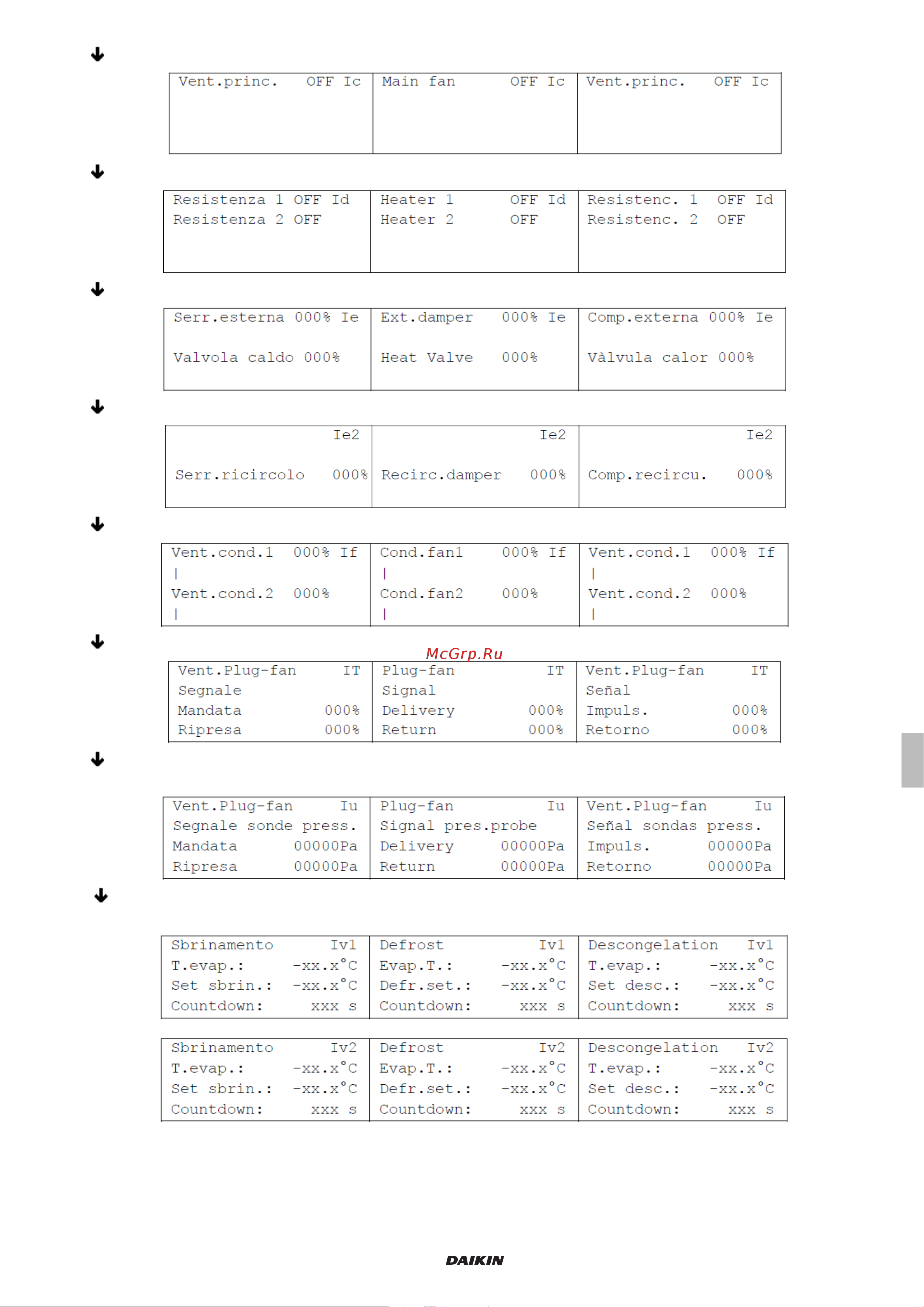

the mask displays the main fan status.
the mask displays the electrical heater statuses, if present.
the mask displays the opening percentages of the external air damper and of the hot water valve, if present.
the mask displays the opening percentage of the recirculation damper, if present.
the mask displays the running percentage of external fans of circuit 1 and 2.
the mask displays the running percentage of delivery and return fans (if present).
themaskdisplaystheairpressuresreadfromtheairpressuretransducerofsupplyandreturnairow;please
note that this pressure is measured on fan nozzle and is not related in any way to the available static pressure.
the masks display the evaporation temperature, the defrost calculated setpoint and the defrost starting
countdown of circuits 1 and 2.
