This operation manual is dedicated to the end user of the unit and it contains a brief description of all free access

functions of the unit control.

1 USER INTERFACE

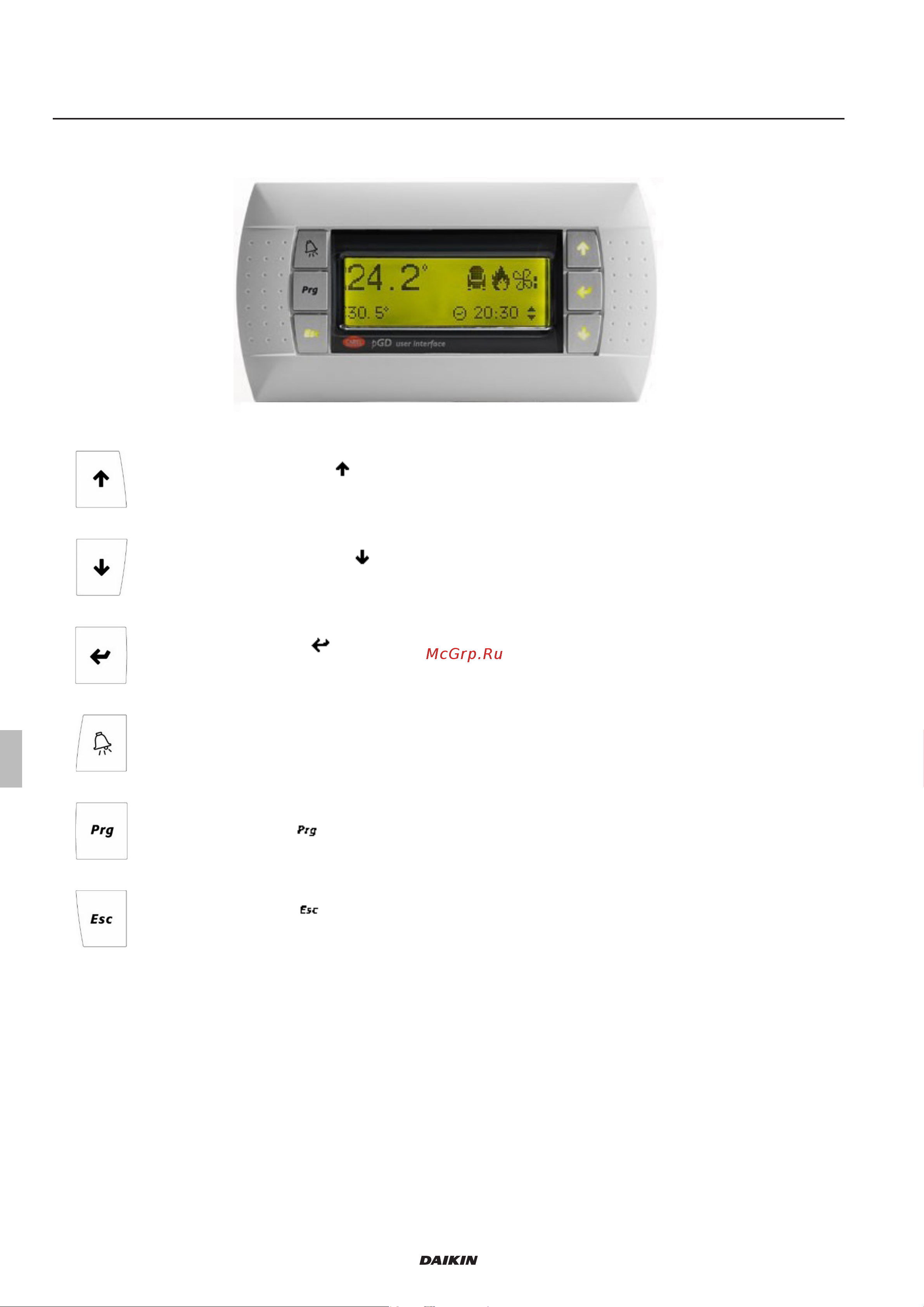

The user interface is a LCD display with 4 rows, 20 columns and automatic backlight; the display has 6 function keys,

that are used to navigate the software menu and to set the parameters.

The key functions are described in the following.

This key, called “up arrow” , allows to scroll up the masks and to modify the value of each mask

eld,increasingit.

This key, called “down arrow” , allows to scroll up the masks and to modify the value of each

maskeld,decreasingit.

This key, called “Enter” ,conrmstheselectiondonetoaccessthemenubranchesandstoresa

parameterthathasbeenmodied.

This key, called “alarm”, allows to display active alarms and, in case, to reset them.

This key, called "prg" , allows to enter the software menu.

This key, called "esc" , allows to exit the displayed mask and to go back to the previous menu

level.
