Daikin UATYQ30AFC2Y1 [12/24] Input output visualization

Original instructions

Installation manual

We reserve the right to make changes without any prior notice.

UATYQ*Y1

Packaged Rooftop

4P522681-1B

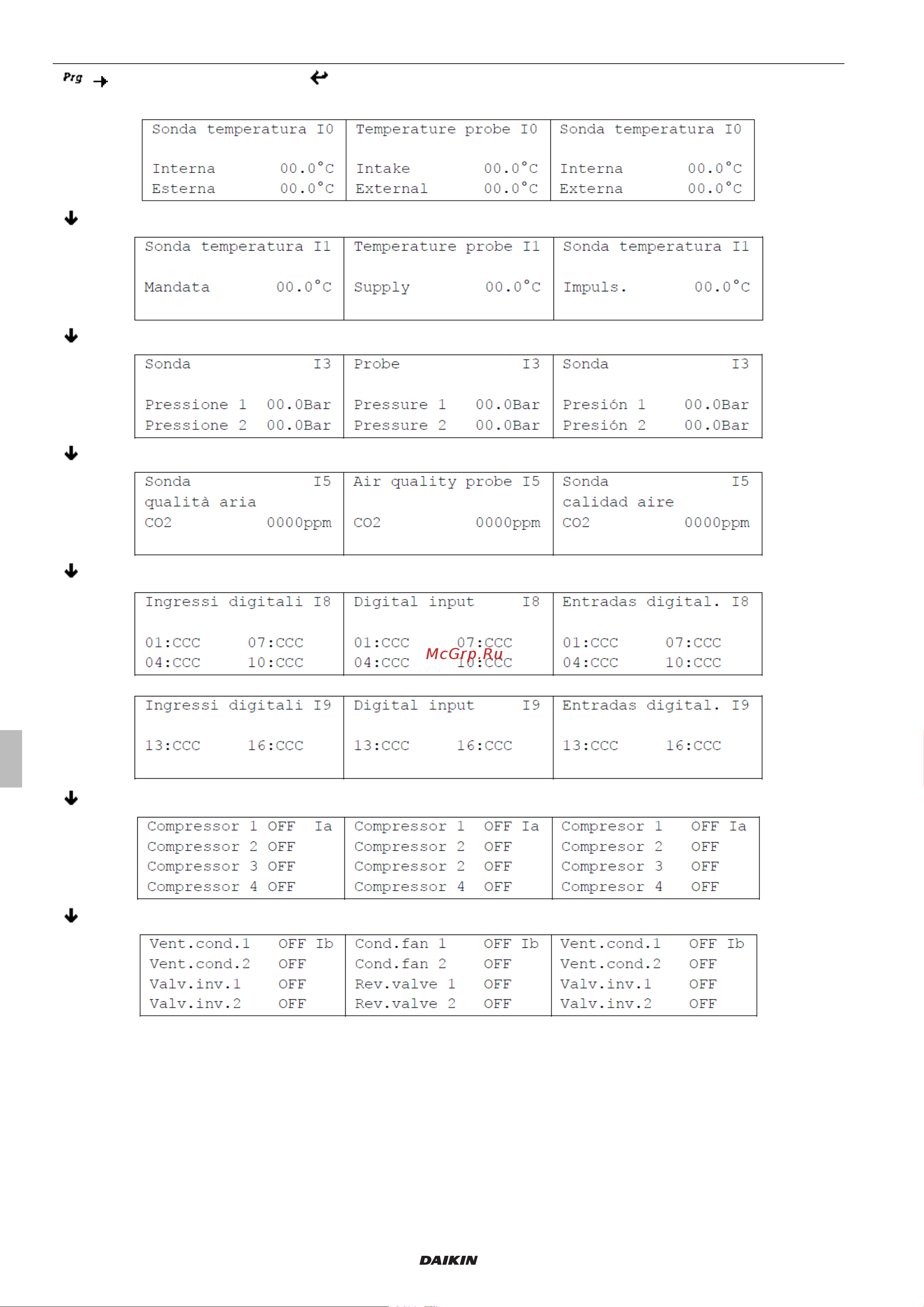

2.8 Input/output visualization

select "Input/Output" menu .

The mask displays intake air temperatures internal and external.

the mask displays the supply air temperature.

the mask displays circuit 1 and 2 refrigerant pressures.

The mask displays the CO

or VOC concentration, read by the air quality probe, if present.

themasksdisplaythedigitalinputstatuses:C=closed,O=open.

the mask displays the compressor statuses.

the mask displays the statuses of the external fans and of the 4-way reversing valves of circuit 1 and 2.
