2.2 Main mask and menu

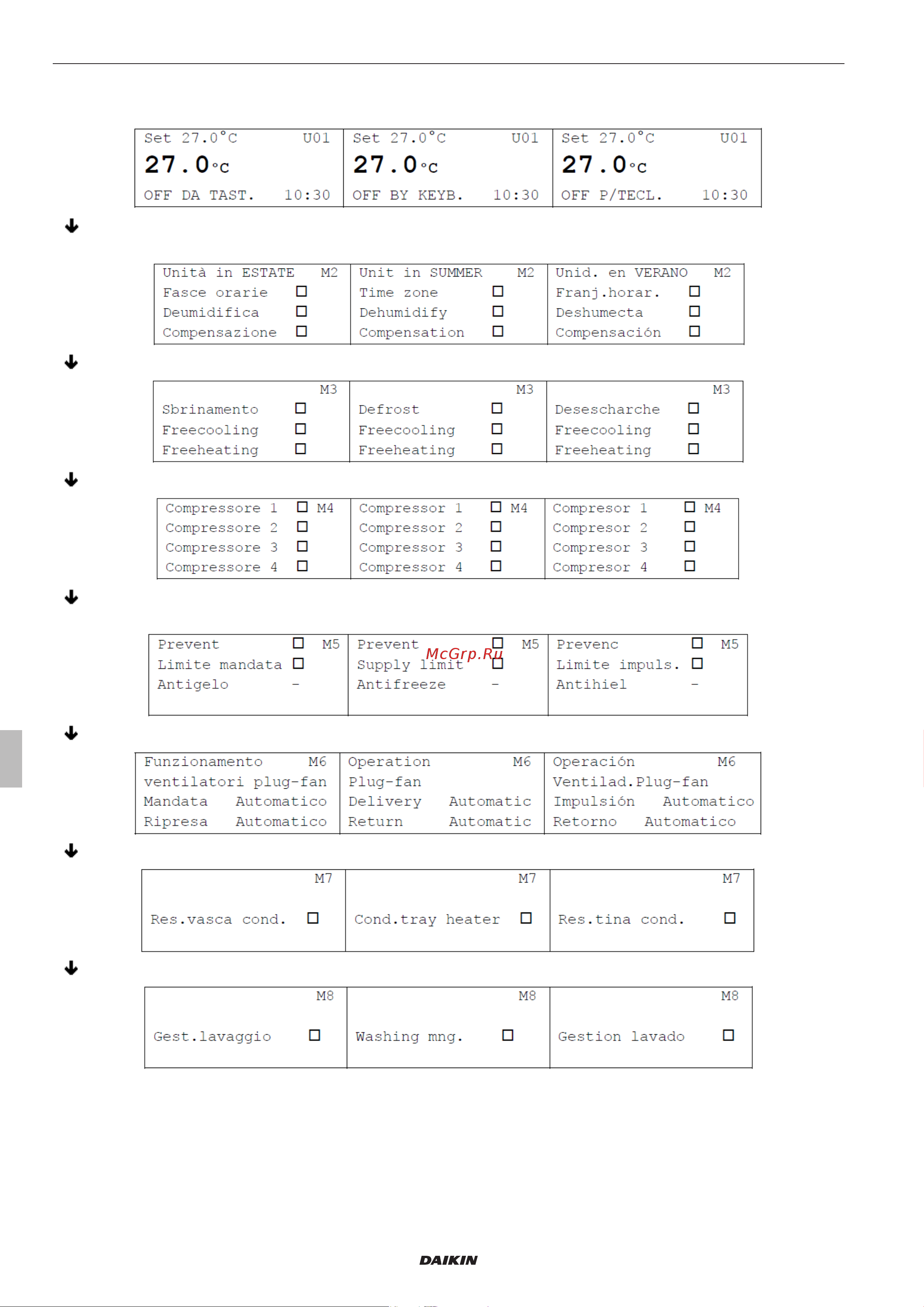

Whentheunitispowered,themainmaskisdisplayedontheunitdisplay,showinginitsrstrowtheindoortemperature

setpoint on the left and the local address of the unit on the right, in bigger fonts the read indoor temperature and on

the last row the unit status on the left and the current time on the right.

todisplaytheunitworkingmode,thetimeslotsactivation,thedehumidicationactivation(notavailable),the

setpoint compensation activation (where enabled).

to display if the unit is in defrost, in freecooling or in freeheating mode.

to display the unit active compressors.

to display if high pressure alarm prevention function in summer mode is active, if the supply temperature limit

is active and if the antifreeze function is enabled and active.

to display the delivery and return (if present) air fans working mode (manual or automatic).

to display if the condensate tray electrical heater is active.

to display if the washing function (forced freecooling at unit start-up) is active.
