Mounting and commissioning

FA EKSRDS2A - 06/2015 15

6.2 Connecting DAIKIN EKSRDS2A

1. Connect the pipes of the solar circuit to the connections of

the fittings.

2. Connect the pipe or flex pipe of the expansion vessel to

the safety group assembly.

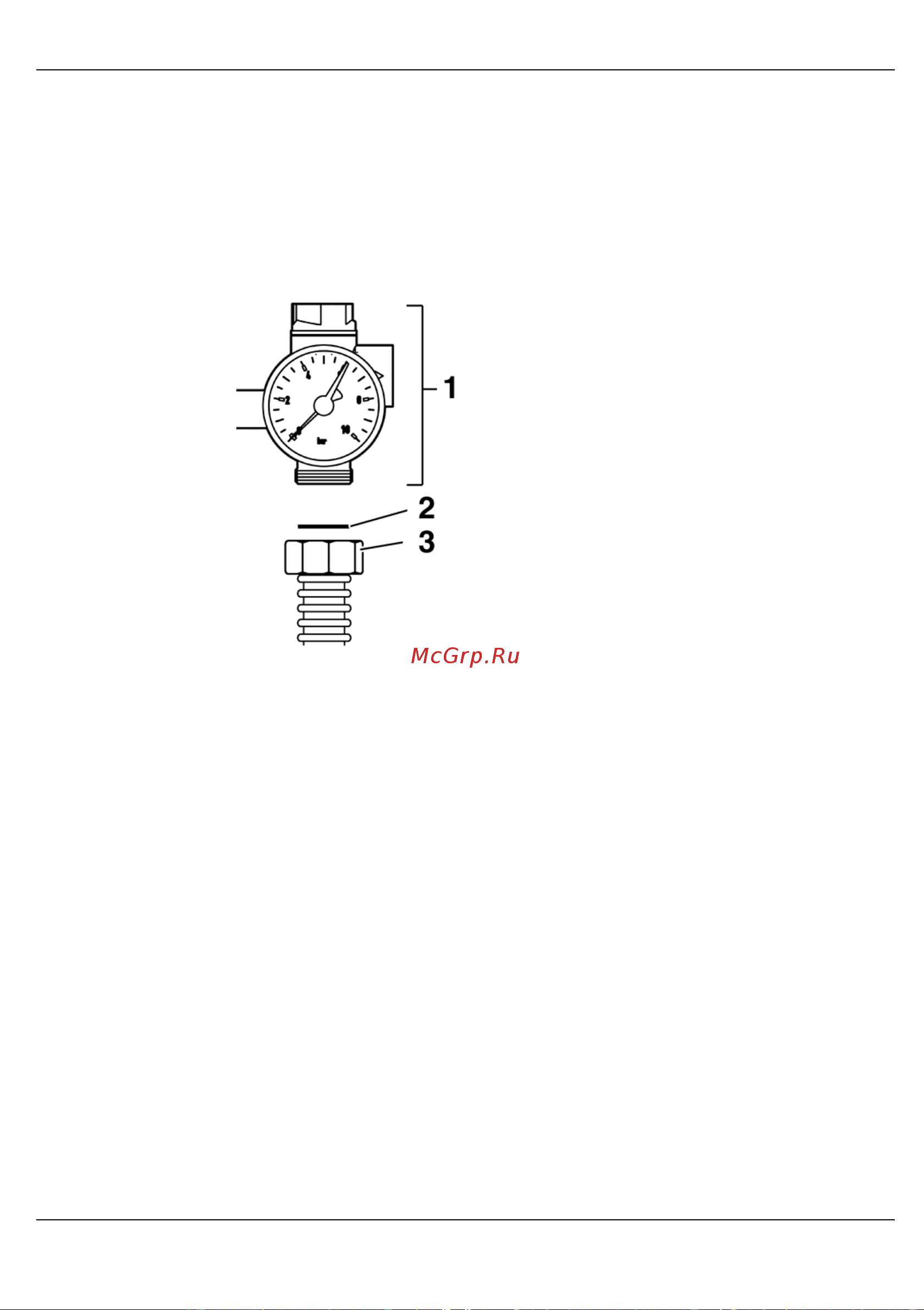

Safety group assem-

Flex pipe, flat-sealing

Fig. 4: Connection flex pipe G¾

3. Connect the discharge line of the safety valve to the safe-

ty group assembly, see below.

4. Connect the unit electrically, see chapter 6.3, page 18.

The discharge opening is designated by an arrow on the valve

6.2.1 Discharge line of the safety valve
