Operation manual
9
LRYEQ16A7Y1 + LCBKQ3AV1(E)
CONVENI-PACK
4P448940-1A – 2016.07
5-4 PROGRAMMING START AND STOP OF
THE SYSTEM WITH TIMER
• The timer is operated in the following two ways.
Programming the stop time “ ”. The sys-
tem stops operating after the set time has
elapsed.
Programming the start time “ ”. The sys-
tem starts operating after the set time has
elapsed.
• The timer can be programmed for a maximum of
72 hours.
• The start and the stop time can be simultane-
ously programmed.

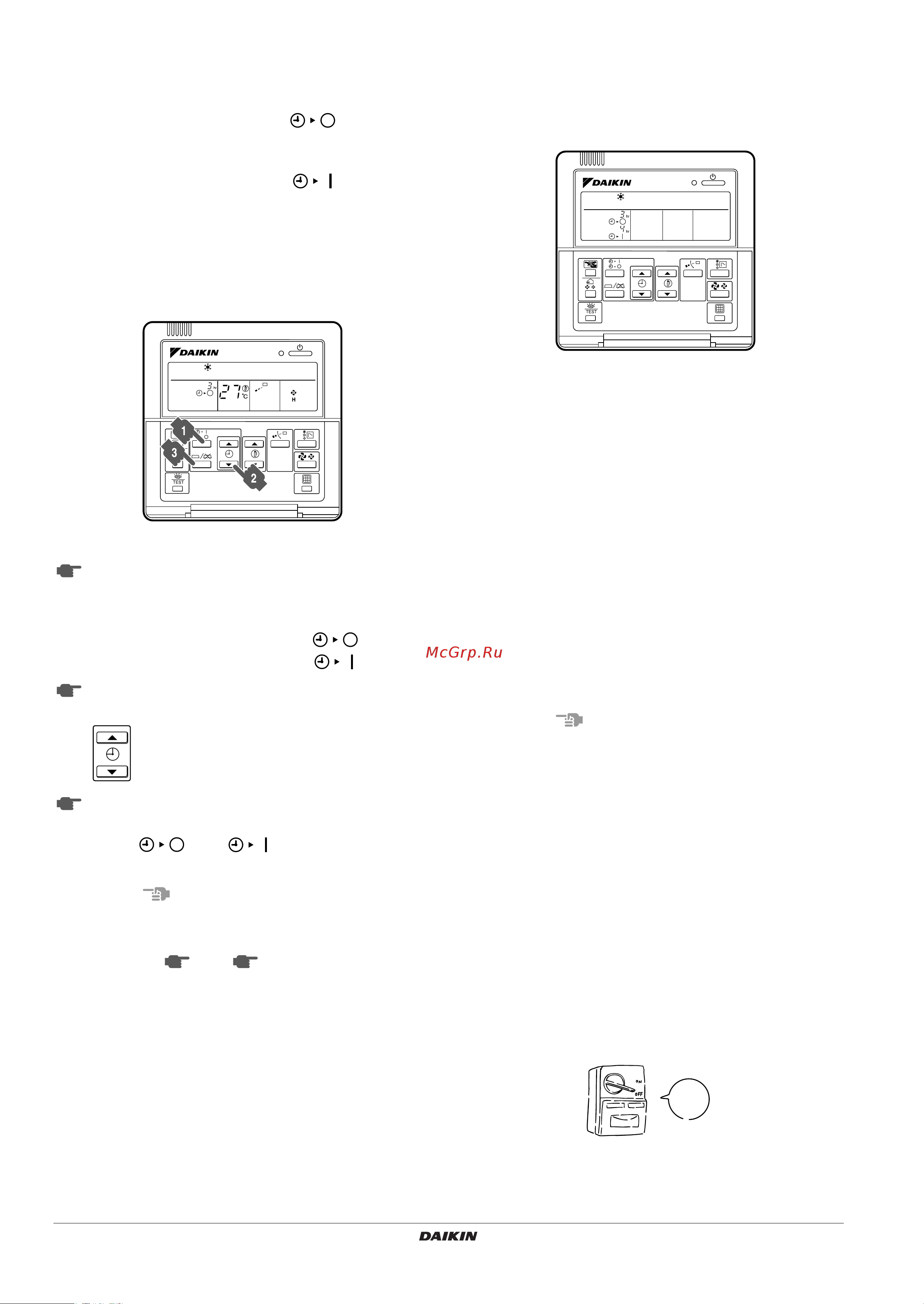

Fig.6
Press the timer mode start/stop button sev-
eral times and select the mode on the display.
The display flashes.
• For setting the timer stop “ ”
• For setting the timer start “ ”
Press the programming time button and set
the time for stopping or starting the system.
Each time this button is pressed, the
time advances or goes backward by 1
hour.
Press the timer on/off button.
The timer setting procedure ends. The dis-
play “ ” or “ ” changes from flash-
ing light to constant light.
NOTE
• When setting the timer off and on at the
same time, repeat the above procedure
(from “ ” to “ ”) once again.
• After the timer is programmed, the display
shows the remaining time.
• Press the timer on/off button once again to
cancel programming. The display van-
ishes.
For example:
When the timer is programmed to stop the
system after 3 hours and start the system
after 4 hours, the system will stop after 3
hours and start 1 hour later.
Fig.7
5-5 PRECAUTIONS FOR GROUP CON-
TROL SYSTEM OR TWO REMOTE
CONTROLLER CONTROL SYSTEM
This system provides two other control systems
beside individual control (one remote controller
controls one indoor unit) system. Confirm about
your system to Daikin dealer.
• Group control system
One remote controller controls up to 16 indoor
units. All indoor units are equally set.
• Two remote controller control system
Two remote controllers control one indoor unit (in
case of group control system, one group of
indoor units). The unit is individually operated.
NOTE
• Contact your Daikin dealer in case of
changing the combination or setting of
group control and two remote controller
control systems.
6. OPTIMUM OPERATION
Observe the following precautions to ensure the
system operates properly.
• Turn off the power if the unit is not operated for a
long time.
The unit will consume a power of several watts to
several tens of watts if the power is on (see note).
For the purpose of machine protection, however,
be sure to turn on the power at least 6 hours before
resuming the operation of the unit.
Note: The power consumption of the unit varies
with the operating factors, such as the CON-
VENI-PACK model.
1
2
3
1
2
OFF
4PEN448940-1A.book Page 9 Thursday, August 25, 2016 11:23 AM
