Operation manual

Do not operate the CONVENI-PACK when using

a room fumigation - type insecticide.

Failure to observe could cause the chemicals to

become deposited in the unit, which could

endanger the health of those who are hypersen-

sitive to chemicals.

Never press the button of the remote controller

with a hard, pointed object.

The remote controller may be damaged.

Never pull or twist the electric wire of a remote

controller.

It may cause the unit to malfunction.

Never touch the internal parts of the controller.

Do not remove the front panel. Touching certain

internal parts will cause electric shocks and dam-

age to the unit. Please consult your dealer about

checking and adjustment of internal parts.

Do not leave the remote controller wherever

there is a risk of wetting.

If water gets into the remote controller there is a

risk of electrical leakage and damage to elec-

tronic components.

Watch your steps at the time of air filter clean-

ing or inspection.

High-place work is required, to which utmost

attention must be paid.

If the scaffold is unstable, you may fall or topple

down, thus causing injury.

There is a possibility that periodic inspec-

tions for refrigerant leakage are sched-

uled. Consult your local dealer for more

information.

[Installation site]

Is the unit installed in a well-ventilated place

with no obstacles around?

Do not use the product in the following

places.

a. Places with mineral oil, such as cutting oil.

b. Places directly exposed to seawater spray and

briny air.

c. Places where sulphide gas is generated, such

as hot springs.

d. Places with radical voltage fluctuations, such as

factories.

e. In vehicles or on board ships.

f. Places with sprays of oil or excessive steam,

such as kitchens.

g. Places with machines generating electromag-

netic waves.

h. Places with acid gas, alkaline gas, or steam.

i. Places with poor drainage.

j. Places in potentially explosive atmosphere.

Install the unit, power supply wiring, trans-

mission wiring and refrigerant piping at least

1 meter away from televisions, radios and ste-

reo sets.

Otherwise, the picture and sound may be inter-

fered with noise.

Are snow protection measures taken?

For detailed arrangements, such as the installa-

tion of a snow protection hood, consult your

dealer.

Is there no clearance around the through hole

between the internal and external units?

The chilled air will leak from the clearance and

the cooling efficiency of the unit will be degraded.

Is service space secured?

[Electrical work]

Do not attempt to conduct electrical work or

grounding work unless you are licensed to do

so.

Consult with your dealer for electrical work and

grounding work.

Check that the power supply is suitable to the

unit and that an exclusive circuit is provided

to the unit.

Check the electric capacity and voltage.

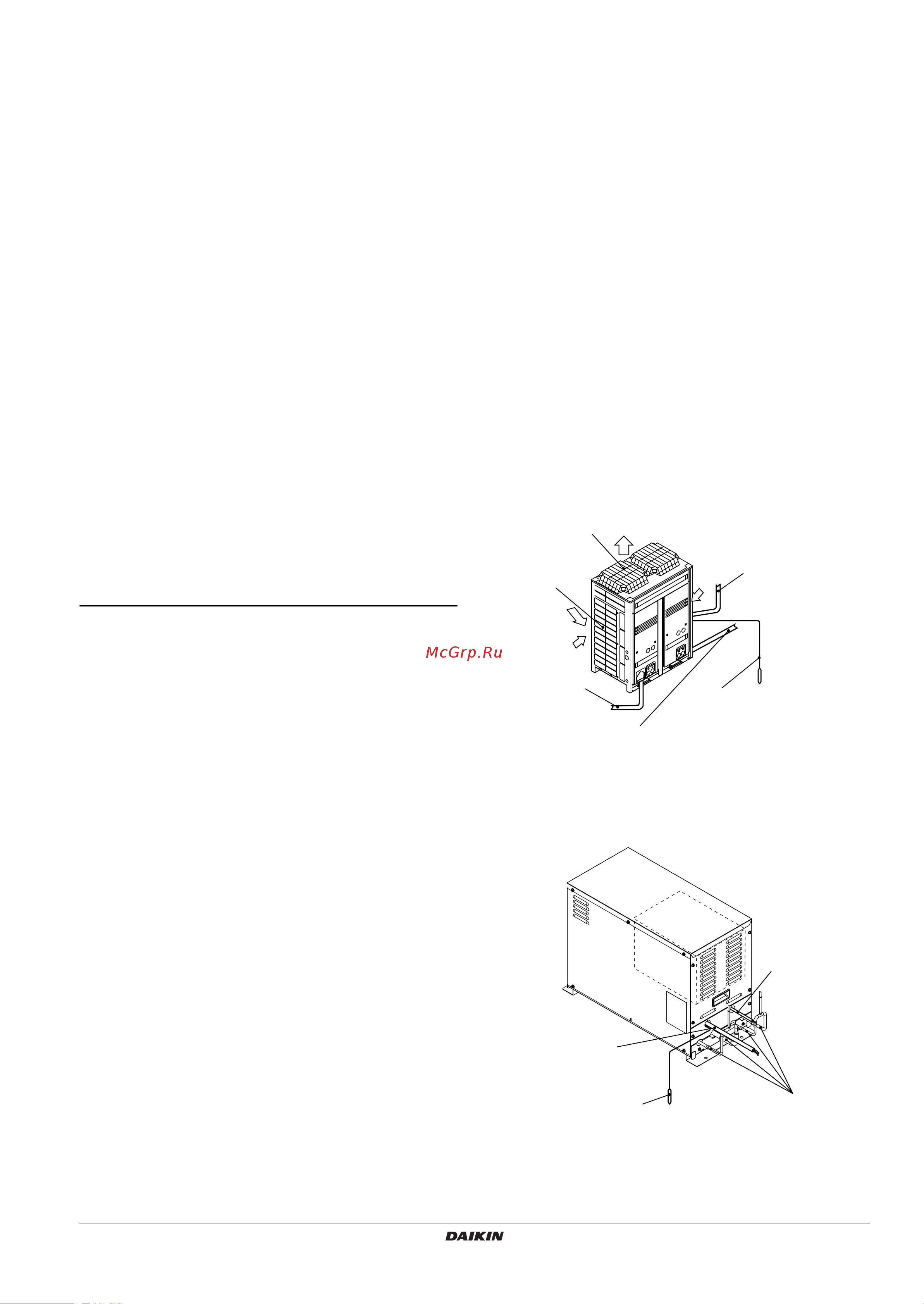

2. NAME OF PART

2-1

In the case of LRYEQ16A7Y1

2-2 In the case of LCBKQ3AV1(E)

Air outlet

Fan

Air inlet

Heat exchanger

(aluminium fin)

Transmission

wiring

Refrigerant

piping

Earth wire

A wire that makes the system

safe by connecting the outdoor

unit to the ground for the

prevention of electric shocks

or fire resulting from electric

leakage.

Power supply wires

(to dedicated earth

leakage breaker)
