Operation manual
5
LRYEQ16A7Y1 + LCBKQ3AV1(E)
CONVENI-PACK
4P448940-1A – 2016.07
3. WHAT TO DO BEFORE
OPERATION
This operation manual is for the following sys-
tem with standard control. Before initiating
operation, contact your Daikin dealer for the
operation that corresponds to your system
type and mark.
If your installation has a customized control
system, ask your Daikin dealer for the opera-
tion that corresponds to your system.

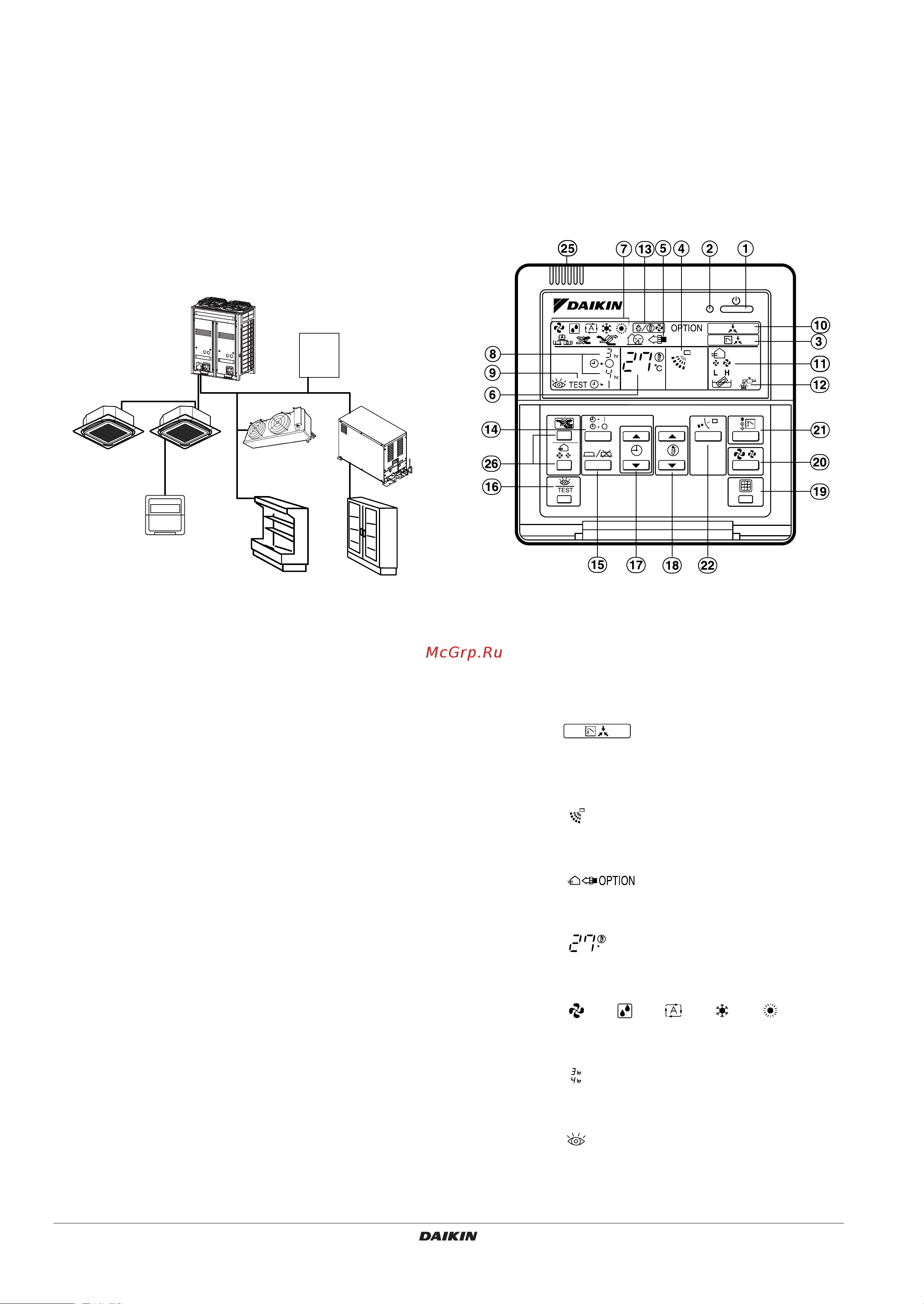

Example of connecting system
1 Outdoor unit
2 Booster unit
3 Indoor unit for air-conditioning
4 Remote controller
5 Blower coil (Indoor unit for refrigerating)
6 Showcase (Indoor unit for refrigerating)
7 Showcase (Indoor unit for freezing)
8 Defrost control panel
For the device except outdoor unit and booster
unit, refer to the Operation Manuals of the respec-
tive pieces of equipment.
4. REMOTE CONTROLLER AND
COOL/HEAT SELECTOR: NAME
AND FUNCTION OF EACH SWITCH
AND DISPLAY
Refer to the operation manual attached with
the remote controller if a remote controller is
BRC1E51A. (This manual assumes that a
remote controller is BRC1C62.)
Fig.1
1. On/off button
Press the button and the system will start.
Press the button again and the system will stop.
2. Operation lamp (red)
The lamp lights up during operation.
3.
Display
“”
(changeover under con-
trol)
It is impossible to changeover heat/cool with the
remote controller which display this icon.
4. Display “ ” (air flow flap)
Refer to the chapter “Operation procedure -
Adjusting the air flow direction”.
5.
Display “ ” (ventilation/air cleaning)
This display shows that the ventilation unit are
in operation. (these are optional accessories)
6. Display “ ” (set temperature)
This display shows the temperature you have
set.
7.Display “” “” “” “” “” (oper-
ation mode)
This display shows the current operation mode.
8. Display “ ” (programmed time)
This display shows the programmed time of the
system start or stop.
9. Display “ ” (inspection/test operation)
When the inspection/test operation button is
pressed, the display shows the mode in which
the system actually is.
1
2
3
4
5
6
7
8
C
TEST
4PEN448940-1A.book Page 5 Thursday, August 25, 2016 11:23 AM
