SiENBE28-901 Test Operation
Air Cooled Refrigeration Condensing Unit 65

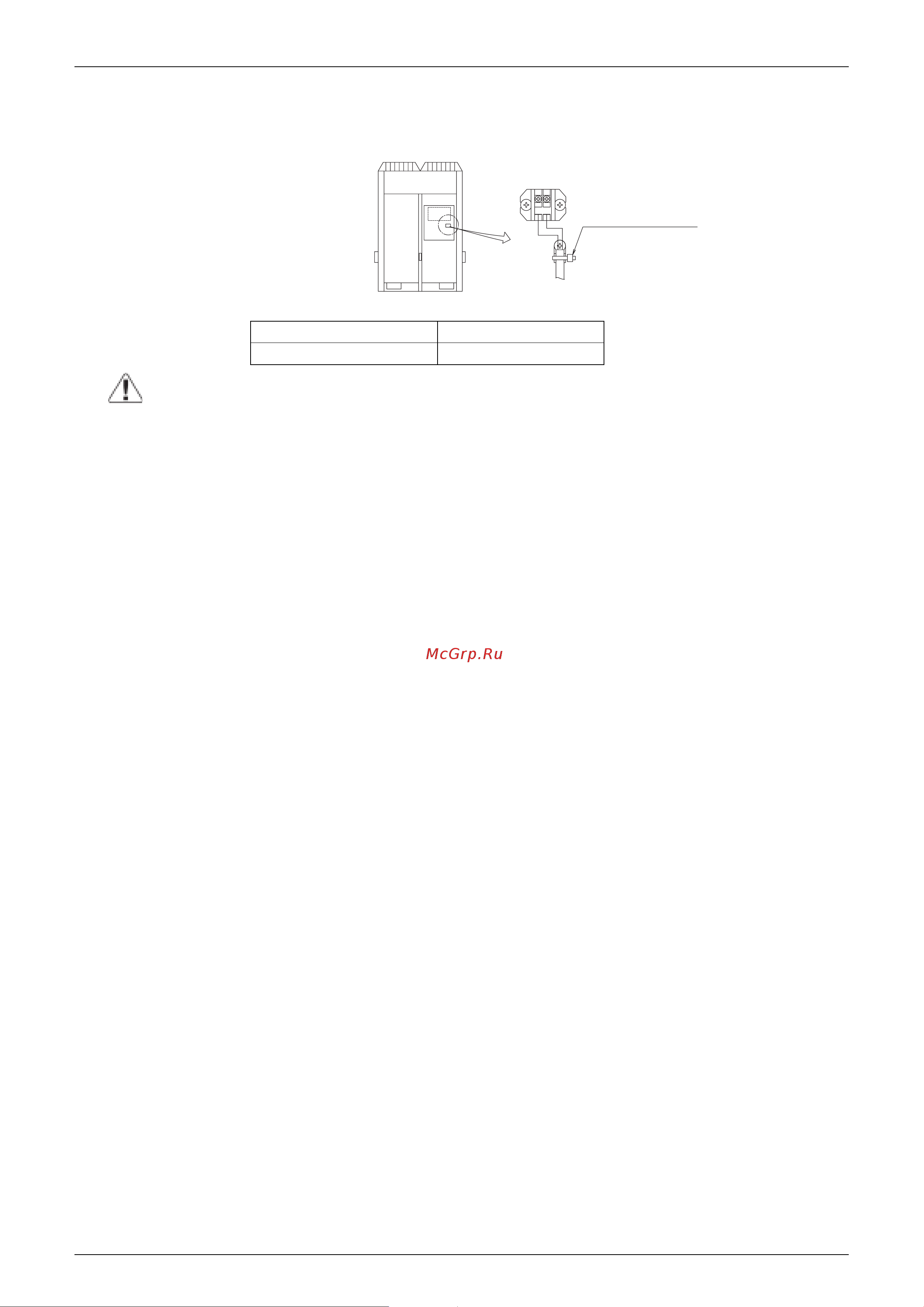

Remote operating switch wiring connections
When installing a remote operating switch, clamp as indicated by the following diagram:
X3M wire specifications
Caution For Remote switch, use non-voltage contact for microcurrent (not more than 1mA, 12VDC)
If the remote operating switch will be used to start and stop the unit, set the operating switch
to “REMOTE”.
Electric wire thickness 0.75~1.25mm
2
Max. wiring length 130m
X3M
Secure remote
operating switch
wiring to the resin
block using a clamp
(field supply).
12
