9

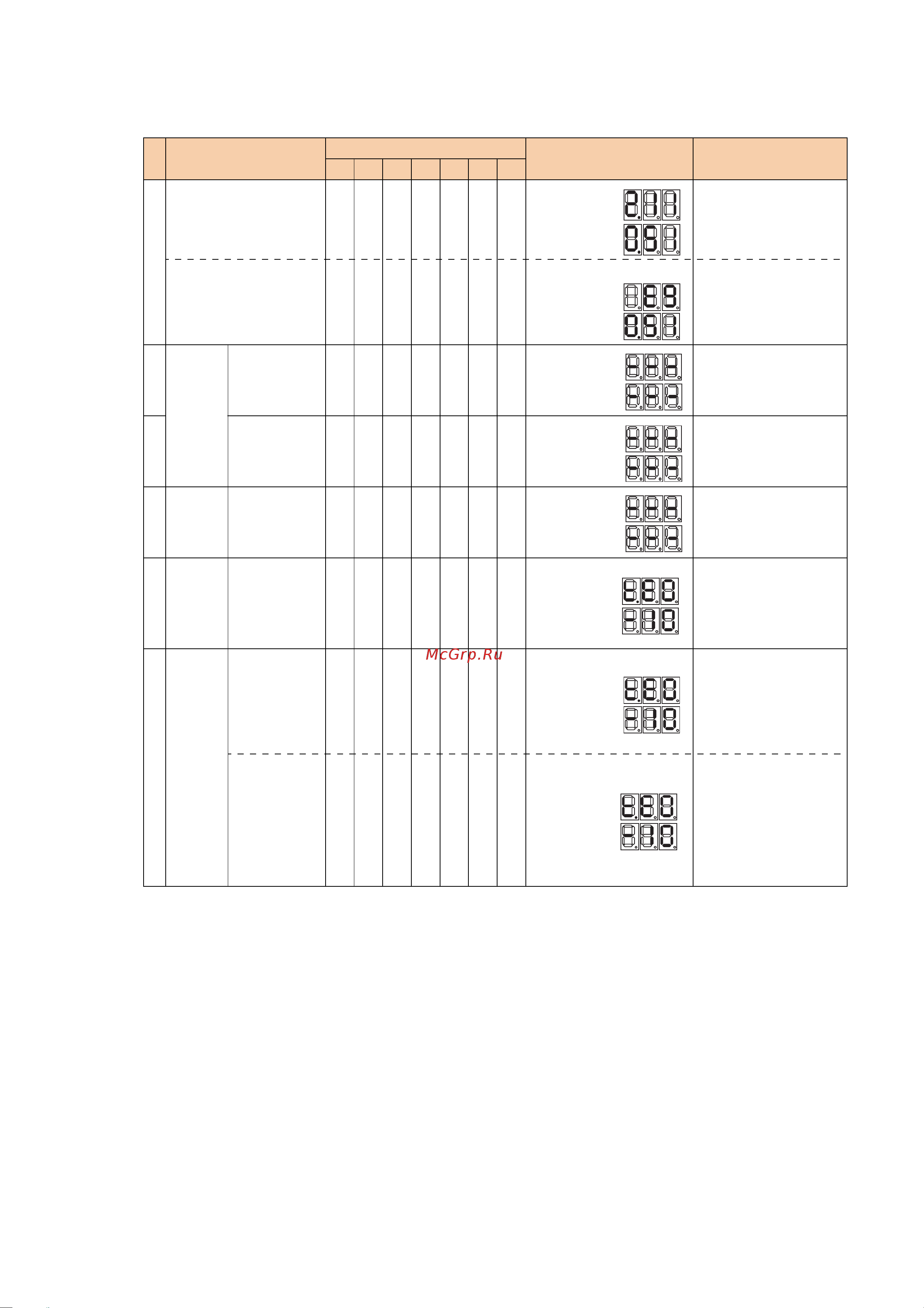

Table1. Operation method of manual operation display 1
∗1 For a display example, “tE0” is displayed. Refer to the detailed information of display items on the
following page onward.
h
: OFF /
k
: ON /
l
: Blinking
No.
Operation
LED display of outdoor unit
Display example Remarks
H1P H2P H3P H4P H5P H6P H7P
1
Initial display
(Normally of connected
outdoor unit and Digital
Pressure Gauge Kit)
hhkhhhh
Initial display
(Abnormally of
connected outdoor unit)
hkkhhhh
2
Selection
of manual
operation
display
Press the
TEST (BS4)
lhhlhhh
3
Press the SET
(BS2)
lhlhhhh
4
Decision
of manual
operation
display
Press the
RETURN
(BS3)
lhkhhhl
5
Display of
operation
data
Press the
RETURN
(BS3)
lhkhhhk
Automatic scroll
indication (Interval of 3
sec.)
Display item refer to the
next page
6
Fixed
display of
7 segment
Press the
RETURN
(BS3)
lhkhhhk
Press the RETURN
(BS3): Fixed display of
7 segment
Fix display items and
value when pressed.
Example is shown left.
Press the
RETURN
(BS3)
lhkhhhk
One more press the
RETURN (BS3):
Cancel of fixed display
of 7 segment
After cancel of fixed
display of 7 segment:
Return automatic scroll
(Interval of 3 sec.)
Upper section HP
Lower section LP
Lower section LP
Upper section
Error code
Upper section tE0
∗1
∗1
Lower section
value of tE0
Upper section tE0
Lower section
value of tE0
∗1
∗1
Upper section tE0
Lower section
value of tE0
∗1
∗1
