4.4 Manual Operation Display 2
On the manual operation display 2, you can check error history for the preceding 3 times.
In this case, both upper and lower sections show lighting display.
The upper section indicates how many times error occurred in the history.
The lower section displays error code.
z
Table 3 on P. 14 shows how to set manual operation display 2.
z

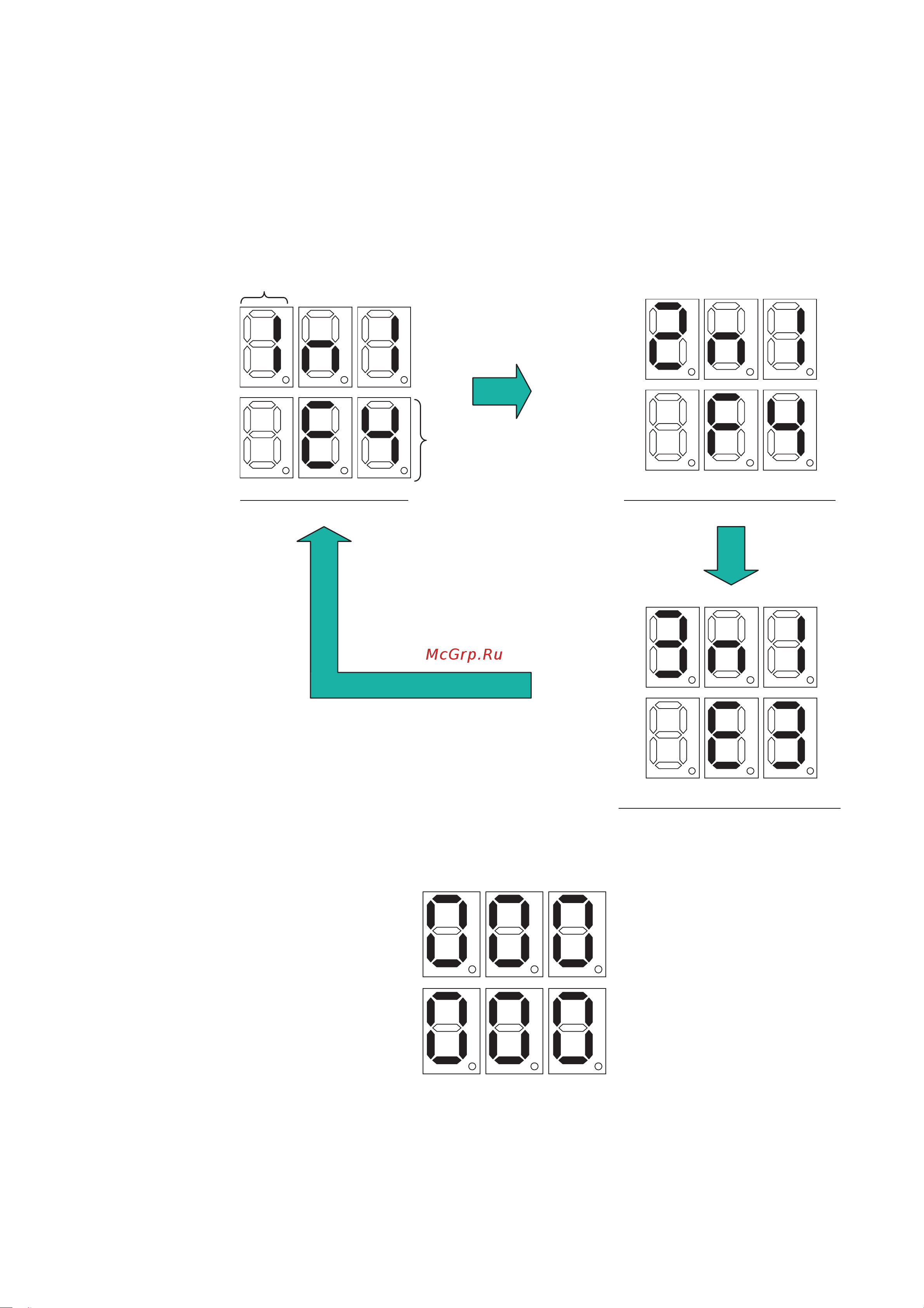

Display example
z
In case no error is present
∗ Cautions for manual operation display 2
1. Each display item is displayed by automatic scroll (interval of 3 sec.) in the order of display No.
2. After display No. 3 displayed, automatically returns to display No. 1
3. After 120 minutes of automatic scroll, the display is automatically returned to the initial display so that it will
not be lost.
4. If booster unit is abnormal, a batch of error codes from outdoor units such as
EJ
,
EF
, etc. are displayed.
Showing how many times error occurred in the history.
Display error code
Upper section
1n1
Lower section
E4
The latest history of error
After 3 sec.
After 3 sec.
After 3 sec.
Upper section
3n1
Lower section
E3
The last but two histories of error
Upper section
2n1
Lower section
F4
The last but one history of error
Lighting LED : Upper section and Lower section
Upper section
“000”
Lower section
“000”
