16
6. The Entire Flow
hhkhhhh lhhlhhh
hkkhhhh
h: OFF
k: ON
l: Blinking
lhlhhhh lhkhhhl lhkhhhk
lhllhhh lhkkhhh

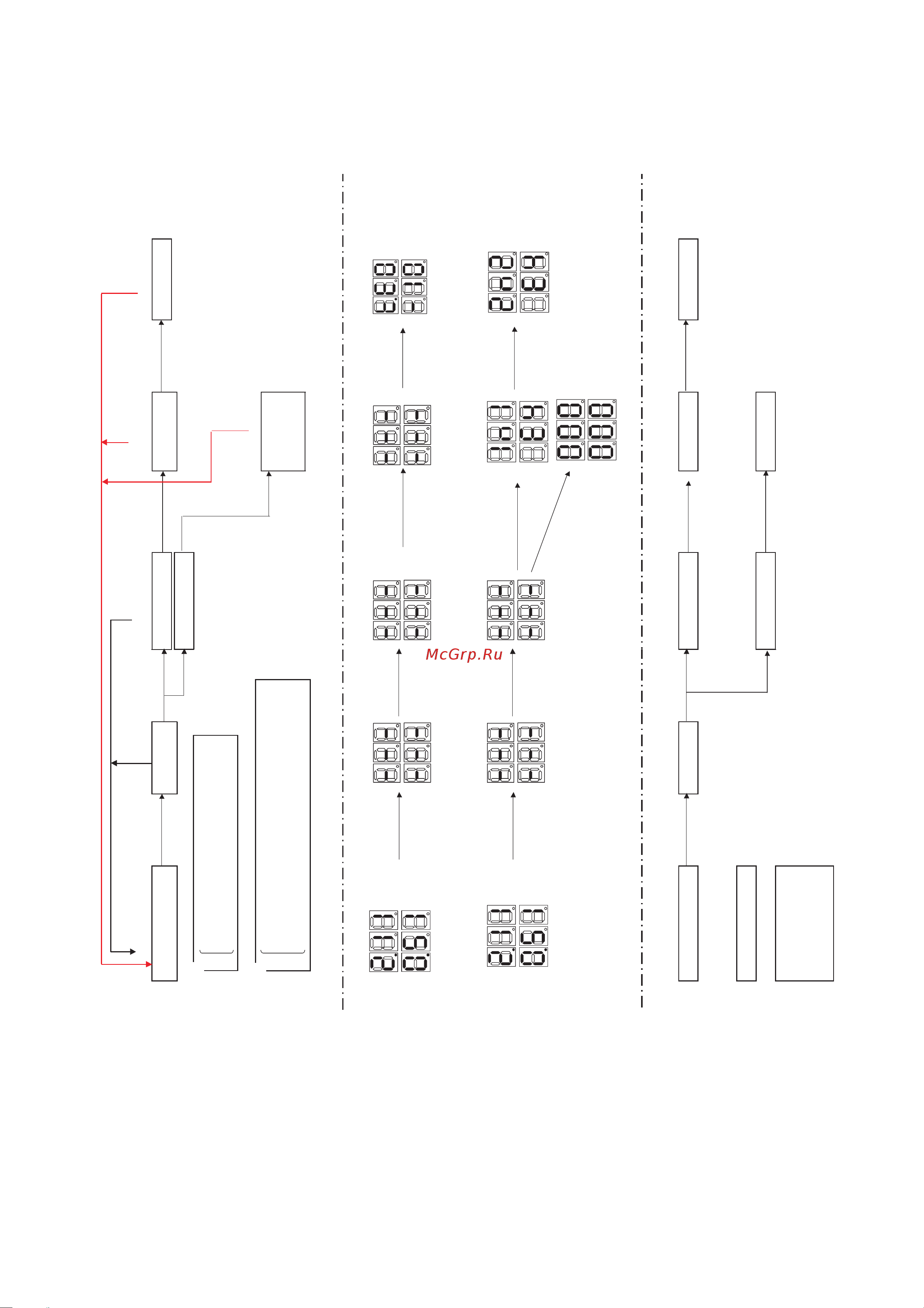

The entire flow
Initial display
(HP/LP or error code/LP)
Press the TEST(BS4) once
Manual operation
display mode
Manual operation display 2
Manual operation display 1
Select of manual
operation display
Press the
SET(BS2) once
Press the
SET(BS2) twice
Press the
RETURN
(BS3) once
Press the
RETURN
(BS3) once
Press the RETURN
(BS3) once
Decide of error
operation display
Indicate start of 7 segment
Outdoor unit data
· Press the MODE(BS1) once.
· Abnormal state of power supply line or
communication line of Digital Pressure Gauge Kit.
· Press the MODE(BS1) once.
· Error state of power supply line or communication line
of Digital Pressure Gauge Kit.
·
120 minutes have passed since display of manual operation display
OR
OR
7 segment flow (Manual operation display 1)
7 segment flow (Manual operation display 2)
HP/LP or error code/LP
HP/LP or error code/LP
LED of outdoor unit flow
Initial display
Error state (Lighting H2P of LED)
Manual operation display mode
Select of manual
operation display 1
Decide of manual
operation display
Select of manual
operation display 2
Indicate start of 7 segment
Indicate start of 7 segment
Indicate of manual
operation display 1
Indicate of manual
operation display 2
Error state of
before 1 time
Error State
Non-error State
Automatic scroll
indicate (new error
history ~ error history
of before 2 times)
Decide of manual
operation display
Indicate start of 7 segment
