Daikin LRMEQ8AY1 [3/17] Preparation before connection of digital pressure gauge kit
![Daikin LRMEQ8AY1 [3/17] Preparation before connection of digital pressure gauge kit](/views2/1801930/page3/bg3.png)
2
1. Preparation before Connection of Digital Pressure
Gauge Kit
When the Digital Pressure Gauge Kit is connected to the outdoor unit, please confirm the software version of
control PCB of ZEAS and you need to change the software if necessary.
∗ Please refer to the manual of software writing delivered.
Check the Software of Condensing Unit
z
Condensing unit: If ver. 91 or earlier, please update the software ver. 93 or later.
z
Condensing unit: ver. 93 and later...You do not need to change the software.
2. Overview of Product

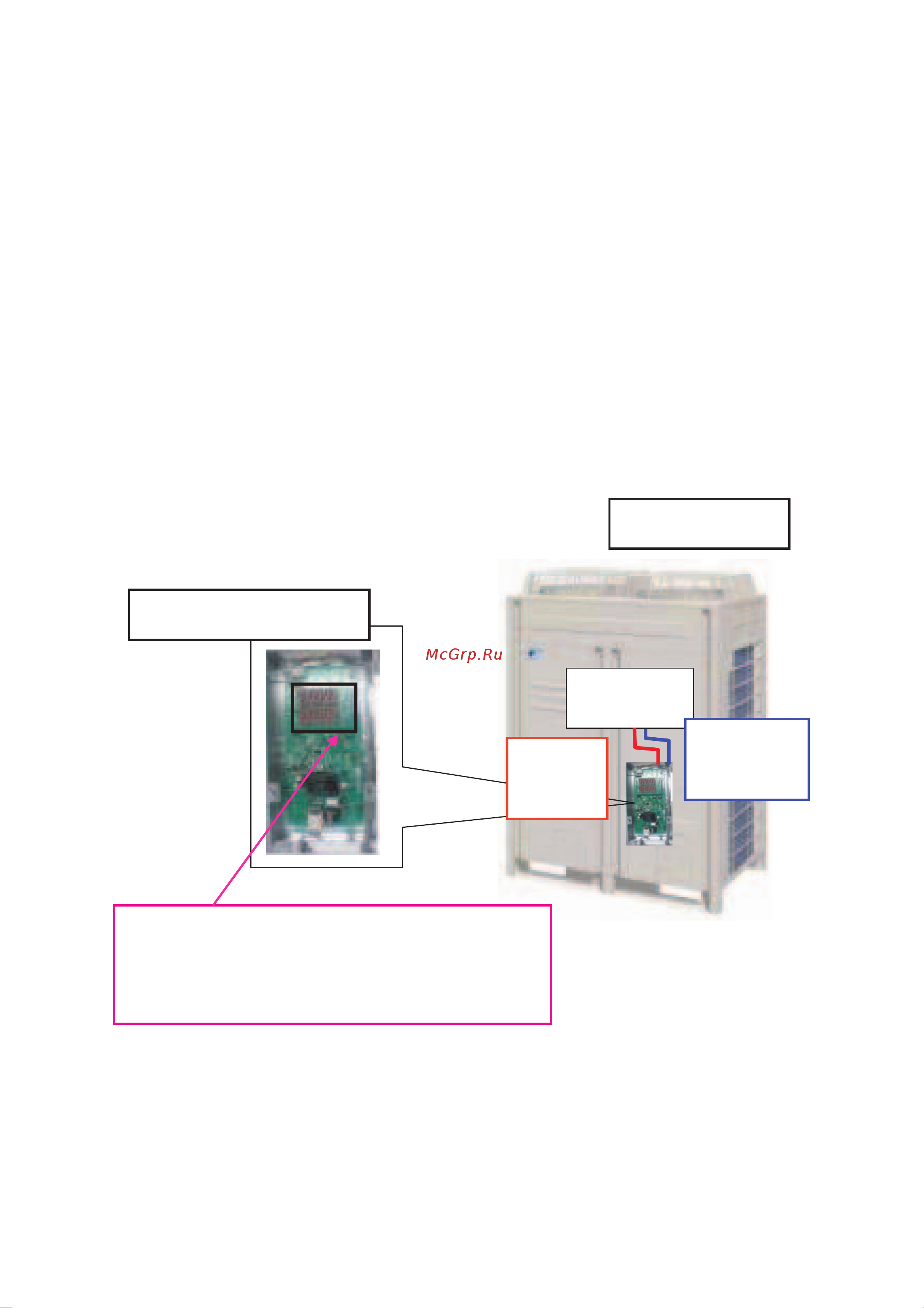

Communicated image
Digital Pressure Gauge Kit
Condensing Unit
Control PCB
Communication
line
Power
supply line
7 segment display
Pressure and temperature, detail of running data,
Error code of outdoor unit, software version.
∗ Power supply line and communication line are included with BHGP26A1.
