Bomann WA 5612 [7/14] Power connection

06/2012

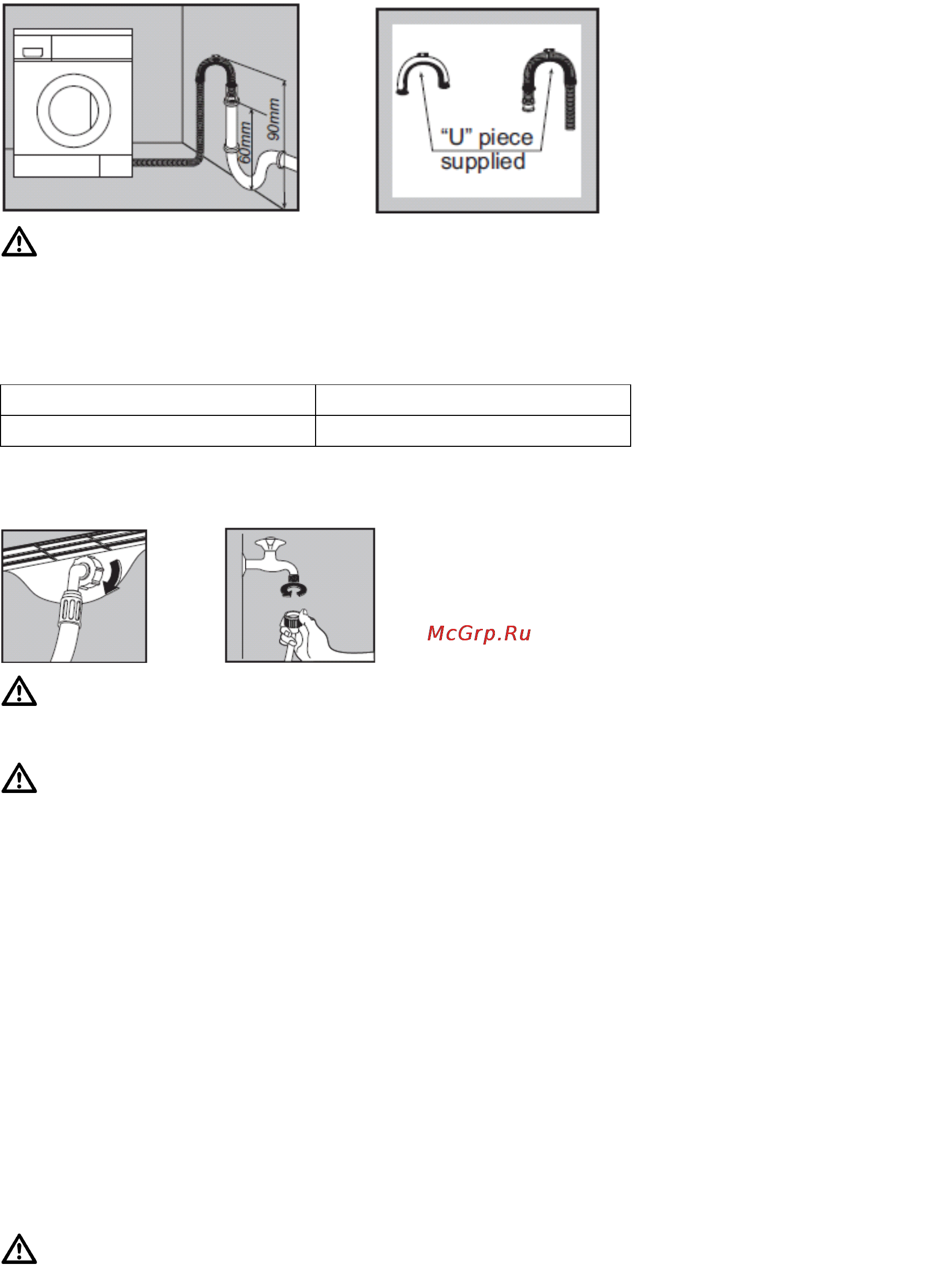

It can drain the water up and down, the drain hose shall be installed at a height of min. 60 cm and

max. 90 cm about the ground and its end shall not be immersed in water.

Please use the supplied hose holder for flexible hoses to get a proper angle and secure it well to avoid

a change in position.

WARNING: Do not pinched the drain hose and do not place heavy objects on it:, an uncontrolled

water flow can cause the machine to stop working.

Install the Water Inlet Hose

Use the new included inlet hose to connect the machine at the water supply. Old hose-sets should not

be reused.

- Connect the water supply hose to the tap with a 3/4"thread and tighten it firmly to the right.

- Connect the other end of the inlet hose to the inlet valve on the back of the device and tighten it

firmly to the right too.

NOTE: If a leak develops remove the inlet hose and reconnect. Connect to a standard water tap.

Power Connection

WARNING: for your personal safety:

- Do not use an extension cord or an adapter plug with this appliance.

- Do not, under any circumstances, cut or remove the earth connection from the power cord.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the appliance to the appropriate

power supply. The voltage is 220-240V. Use the required fuse max. 10 amp.

Electrical Connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate.

Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to

which the appliance must be connected is not appropriate for the plug, let replace the socket by a

specialist, rather than using a adaptors or the like as they could cause overheating and burns.

Grounding Instructions

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the

risk of electric shock by providing a path of least resistance for the electric current. This appliance is

equipped with a cord having an equipment-earthing conductor and an earthing plug. The plug must be

plugged into an appropriate outlet that is installed and earthed in accordance with all local standards

and requirements.

WARNING:

- Improper connection of the equipment earthing conductor can result in the risk of an electric shock.

- Check with a qualified electrician if you are in doubt whether the appliance is properly earthed.

- Do not modify the plug provided with the appliance. If the plug does not fit properly to the outlet,

please have a qualified electrician to install a proper outlet.

Min. inlet water pressure 0.02 MPa

Max. inlet water pressure 0.8 MPa
