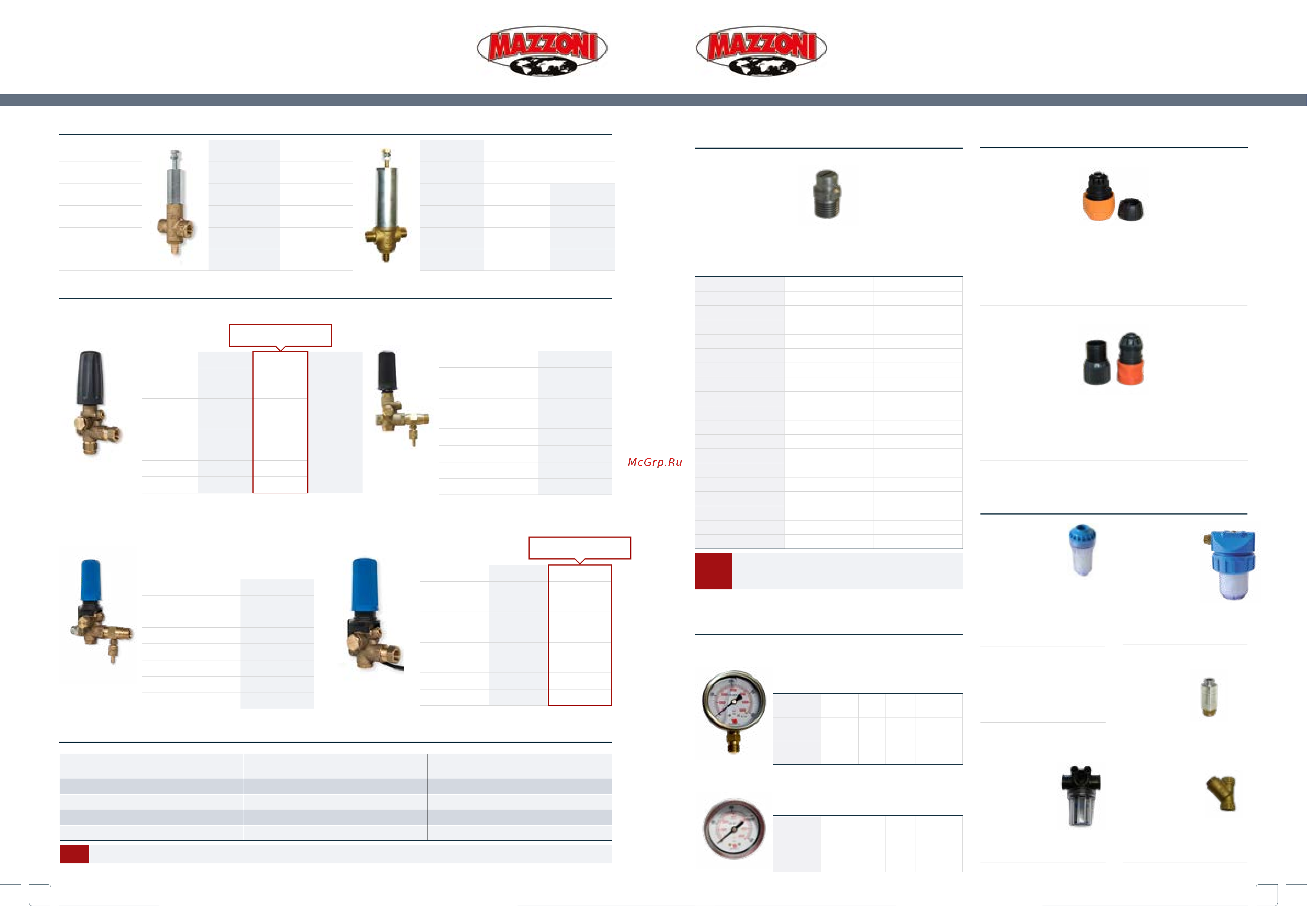

Mazzoni PM11170R [65/68] Nozzles fittings and filters
![Mazzoni PM11170R [65/68] Nozzles fittings and filters](/views2/1805317/page65/bg41.png)
Codice
Code
Ø
Attacchi
Connections
4.027.02.028 1504 1/4"NPT
4.027.02.029 2504 1/4'' NPT
4.027.02.034 15045 1/4'' NPT
4.027.02.035 25045 1/4'' NPT
4.027.02.007 1505 1/4'' NPT
4.027.02.001 2505 1/4'' NPT
4.027.02.040 15055 1/4'' NPT
4.027.02.005 25055 1/4'' NPT
4.027.02.044 1506 1/4'' NPT
4.027.02.045 2506 1/4'' NPT
4.027.02.050 15065 1/4'' NPT
4.027.02.051 25065 1/4'' NPT
4.027.02.056 1507 1/4'' NPT
4.027.02.057 2507 1/4'' NPT
4.027.02.070 15075 1/4'' NPT
4.027.02.071 25075 1/4'' NPT
4.027.02.073 1508 1/4'' NPT
4.027.02.074 2508 1/4'' NPT
4.027.02.080 1510 1/4'' NPT
Codice
Code
Attacco
Connection
Ø
Pressione
Pressure
4.020.04.001
Radiale
Radial
G
1
/
4
63 400 Bar
4.020.04.005
Radiale
Radial
G
1
/
4
63 600 Bar
4.020.04.006
Radiale
Radial
G
1
/
4
40 300 Bar
Codice
Code
Attacco
Connection
Ø
Pressione
Pressure
4.020.14.002
Frontale
Frontal
G
1
/
4
50 400 Bar
4.020.14.019
Frontale
Frontal
G
1
/
4
70 1000 Bar
UGELLI ALTA PRESSIONE INOX
HIGH PRESSURE NOZZLES STAINLESS STEEL
INNESTO RAPIDO PLASTICA 1/2"
PLASTIC QUICK CONNECTION 1/2"
Codice/Code 3.012.12.001
INNESTO RAPIDO PLASTICA 3/4"
PLASTIC QUICK CONNECTION 3/4"
Codice/Code 3.012.12.010
ALTRI UGELLI SU RICHIESTA
OTHER SIZE ON DEMAND
FILTRI / FILTERS
MANOMETRI / PRESSURE GAUGES
FILTRO ESTERNO
CON RETE E SALI
EXTERNAL FILTER
WITH IMPURITY NET AND SALT
3/4"GAS
Codice/Code 3.032.04.007
FILTRO ESTERNO
CON RETE E SALI
EXTERNAL FILTER
WITH IMPURITY
NET AND SALT
3/4"GAS
Codice/Code 3.032.04.002
FILTRO IN LINEA
G1/2F 50SH
40L/MIN
IN-LINE FILTER
G1/2F 50SH 40L/MIN
Codice/Code 3.032.02.004
FILTRO MAGNETICO IN ACIAIO
MAGNETIC ANTISCALE IN STEEL 3/4"G
Codice/Code 3.032.02.008
FILTRO OTTONE
"Y" 3/4"G-FF
BRASS FILTER "Y"
3/4"G-FF
Codice/Code 3.032.02.005
RACCORDI IN ENTRATA
QUICK RELEASE COUPLING AND FITTING
Altre portate o pressioni su richiesta / Other ow rates or pressures on demand
VALVOLA BY PASS / BY PASS VALVE
Codice/Code 3.003.12.004 3.003.12.017* 3.003.14.007
Pressione
Pressure
150 - 250 Bar
(3650 psi max)
150 - 250 Bar
(3650 psi max)
500 Bar
7250 Psi
Portata
Flow rate
Max:
35 l/min
Max:
35 l/min
Max:
100 l/min
Foro manometro
Gauge port
G1/4 F G1/4 F tecomec
In / Out 3/8" GAS F/F 3/8" GAS F/F G1/2F
By pass G 3/8" F G 3/8" F G1/2F
Codice / Code
3.003.22.002 3.003.22.005 3.003.22.006 3.003.22.007 3.003.24.002
Pressione / Pressure
300 Bar - 4350 Psi 300 Bar - 4350 Psi 400 Bar - 5800 Psi 400 Bar - 5800 Psi 560 Bar - 8100 Psi
Portata / Flow rate
Max: 40 l/min Max: 40 l/min Max: 40 l/min Max: 40 l/min Max: 100 l/min
IN
3/8" GAS F 3/8" GAS M 3/8" GAS F 3/8" GAS M G1/2F
OUT
3/8" GAS F/F 3/8" GAS M 3/8" GAS F 3/8" GAS M tecomec
BY PASS
Ø 12 Ø 12 Ø 12 Ø 12 G1/2F
VALVOLA BY PASS
CON PRESSOSTATO ED INIETTORE
BY PASS VALVE
WITH PRESSURE SWITCH AND INJECTOR
Codice/Code 3.008.12.055
Pressione / Pressure
150 - 250 Bar
(3650 psi max)
Portata / Flow rate Max: 35 l/min
Foro manometro /
Gauge port G1/4 F
In 3/8" GAS F/F
Out M22 x 1.5M
By pass G 3/8" F
VALVOLA BY PASS CON PRESSOSTATO
BY PASS VALVE WITH PRESSURE SWITCH
Codice/Code 3.003.12.024 3.003.12.028*
Pressione / Pressure
250 Bar
(3650 psi max)
250 Bar
(3650 psi max)
Portata /
Flow rate
Max: 35 l/min Max: 35 l/min
Foro manometro /
Gauge port
G1/4 F G1/4 F
In / Out 3/8" GAS F/F 3/8" GAS F/F
By pass G 3/8" F G 3/8" F
VALVOLA BY PASS CON INIETTORE
BY PASS VALVE WITH INJECTOR
Codice/Code 3.008.12.054
Pressione / Pressure
150 - 250 Bar
(3650 psi max)
Portata / Flow rate
Max:
35 l/min
Foro manometro
/Gauge port
G1/4 F
In G 3/8" F
Out M22 x 1.5M
By pass G 3/8" F
VALVOLE DI SICUREZZA / SAFETY VALVES
VALVOLE BY PASS / BY PASS VALVES
COLORE MOLLA / SPRING COLOR
COLORE MOLLA COLORE MOLLA / SPRING COLOR/ SPRING COLOR BAR PSI
GIALLO GIALLO / YELLOW/ YELLOW 120 1740
ROSSO ROSSO / RED/ RED 170 2465
BLU BLU / BLUE/ BLUE 250 3625
NERO NERO / BLACK/ BLACK 350 5076
Con tenute per alte temperature
With seals for high temperature
Con tenute per alte temperature
With seals for high temperature
Mazzoni S.r.l. - Via Prati Vecchi 5 - 4025 Cavriago (RE) - Italy | www.e-mazzoni.it | info@e-mazzoni.it Tel: (+39) 0522 57.51.56 - 57.77.93
UGELLI, RACCORDI E FILTRI
NOZZLES, FITTINGS AND FILTERS
VALVOLE
VALVES
128 129
