noitargifnoCmetsyS
Domestic Air Conditioner
Parts and Functions
Operation
Hints
After replacing with new batteries, remote controller will conduct self-check, displaying
all information on LCD. Then, it will become normal.
NOTE: Cooling only unit do not have displays and functions related with heating

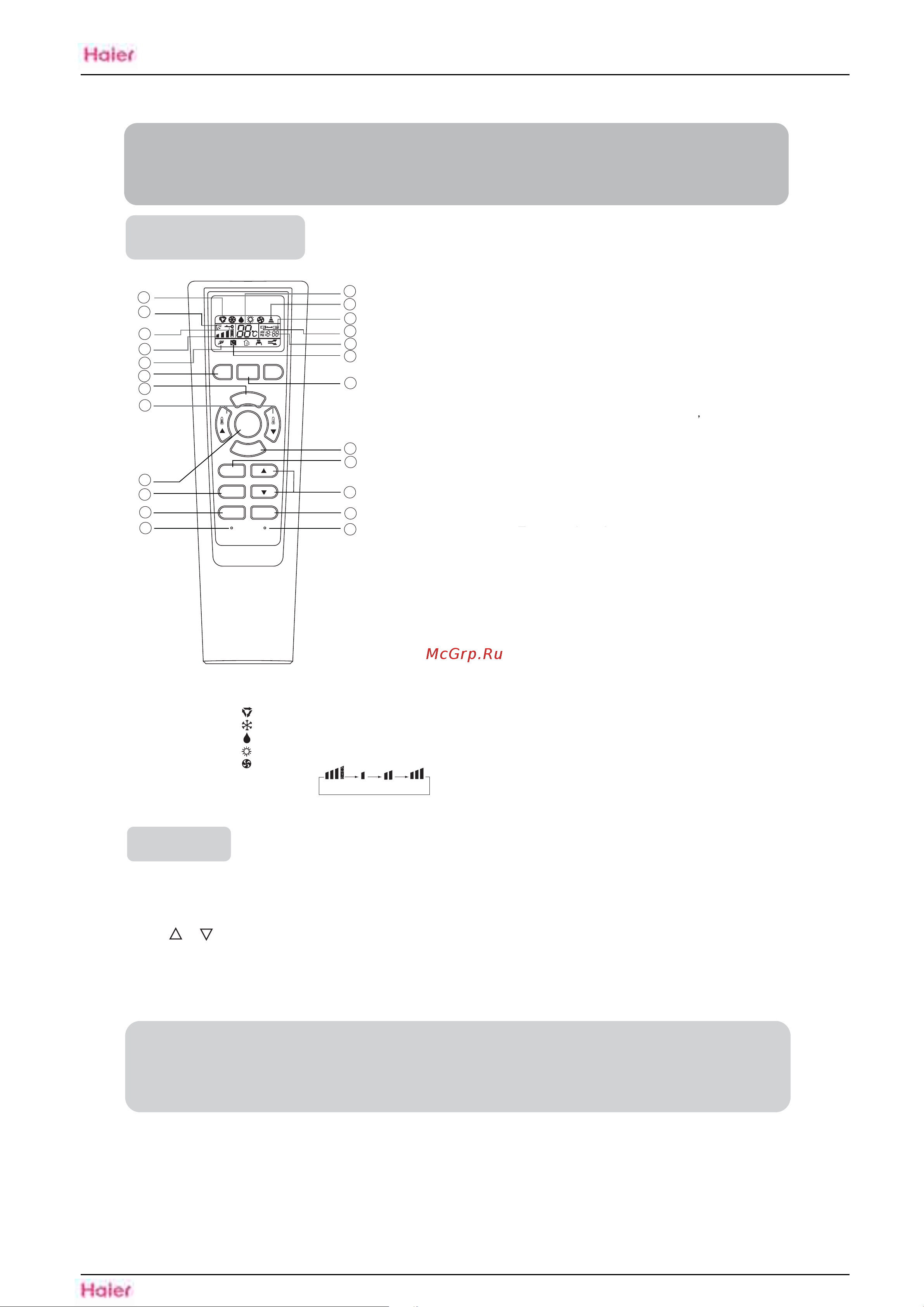

Buttons and display of the remote controller.
FAN
DRY
COOL
AUTO
1. Mode display
2. SWING display
3. FAN SPEED display
4. SLEEP display
5. LOCK display
6. SIGNAL SENDING
7. TIMER OFF display
8. TIMER ON display
9. CLOCK display
10. TEMP display
11. POWER ON/OFF
Used for unit start and stop.
12. MODE
Used to select AUTO run, COOL,
DRY
and FAN operation
13. FAN
Used to select fan speed LO, MED, HI, AUTO
14. HOUR
Used to set clock and timer setting.
15. SWING
Used to set auto fan direction.
16. SLEEP
Used to select sleep mode.
17. LOCK
Used to lock buttons and LCD
display.
18. TEMP.SETTING
Used to select your desired temp.
19. SET
Used to confirm timer and clock settings.
20. TIMER
Used to select TIMER ON, TIMER OFF,
TIMER ON-OFF
21. CLOCK
Used to set correct time
22. RESET
normal condition.
Used to reset the controller back to
LO MED HIAUTO
Clock set
When unit is started for the first time and after replacing batteries in remote controller,
clock should be adjusted as follows:
Press CLOCK button, "AM" or "PM" flashes.
Press or to set correct time. Each press will increase or decrease 1min. If the
button is kept depressed, time will change quickly.
After time setting is confirmed, press SET, "AM "and "PM" stop flashing, while clock
starts working.
1
2
3
5
6
7
8
9
10
4
ON/OFF
HEALTH
FAN
MODE
SWING
TIMER
CLOCK
SET
SLEEP
LOCK
RESET
11
12
14
15
16
17
13
18
19
20
21
22
24
23
23. HEALTH display
24. HEALTH
Used to operate the healthy function.
HEAT
HEAT
HSU-07 09 12L HEK03
35
