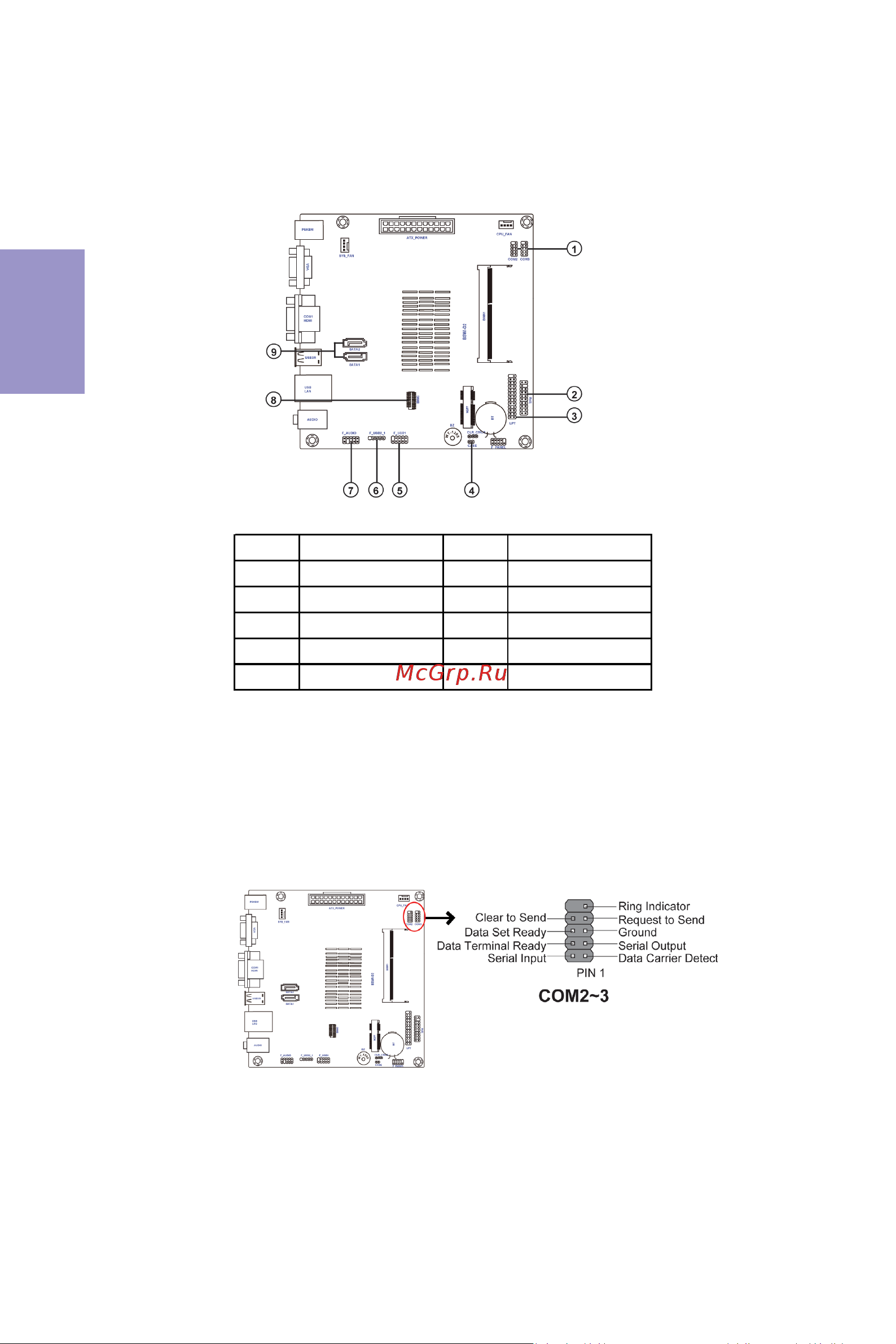

Chapter 2

BSWI-D2 USER MANUAL

2-4-3. Connecting Optional Devices

Refer to the following for information on connecting the motherboard’s optional

devices:

No. Components No. Components

1COM2~36F_USB2_1

2TPM7F_AUDIO

3 LPT 8 EMMC

4CASE9SATA_1~2

5F_USB1~ ~

1. COM2~3: Onboard Serial Port Headers

Connect serial port extension brackets to these headers to add serial ports to your

system.
