Chapter 2
BSWI-D2 USER MANUAL
14
The motherboard has one 2*5-pin USB 2.0 header supporting two USB 2.0 ports.
Additionally, some computer cases have USB 2.0 ports at the front of the case. If you
have this kind of case, use auxiliary USB 2.0 connector to connect the front-mounted
ports to the motherboard.

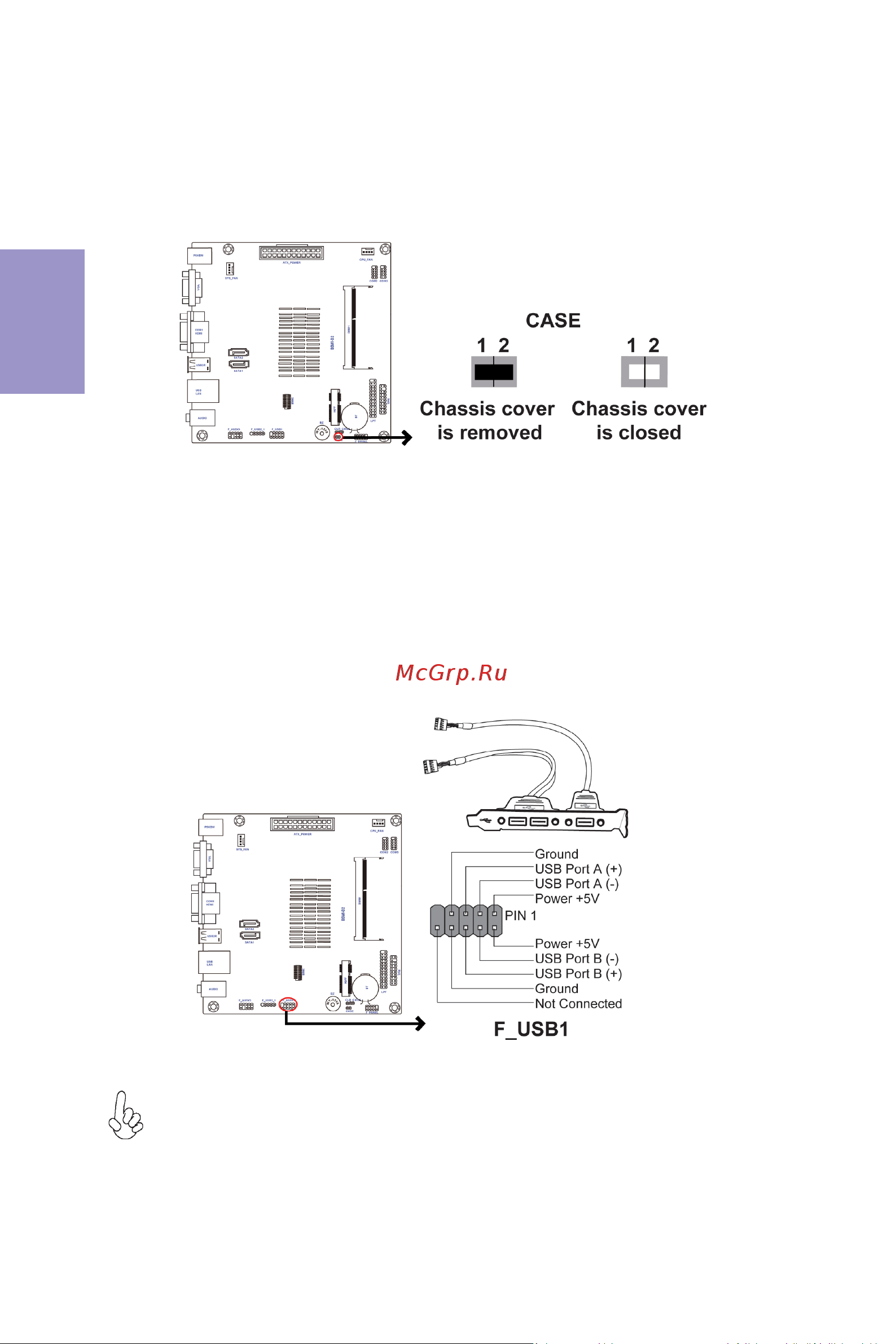

5. F_USB1: 2*5-pin Front Panel USB 2.0 Header
Please make sure that the USB cable has the same pin assignment as
indicated above. A different pin assignment may cause damage or system
hang-up.
4. CASE: Chassis Intrusion Detect Header
This detects if the chassis cover has been removed. This functiion needs a chassis
equipped with intrusion detection switch and needs to be enabled in BIOS.
