Chapter 2

BSWI-D2 USER MANUAL

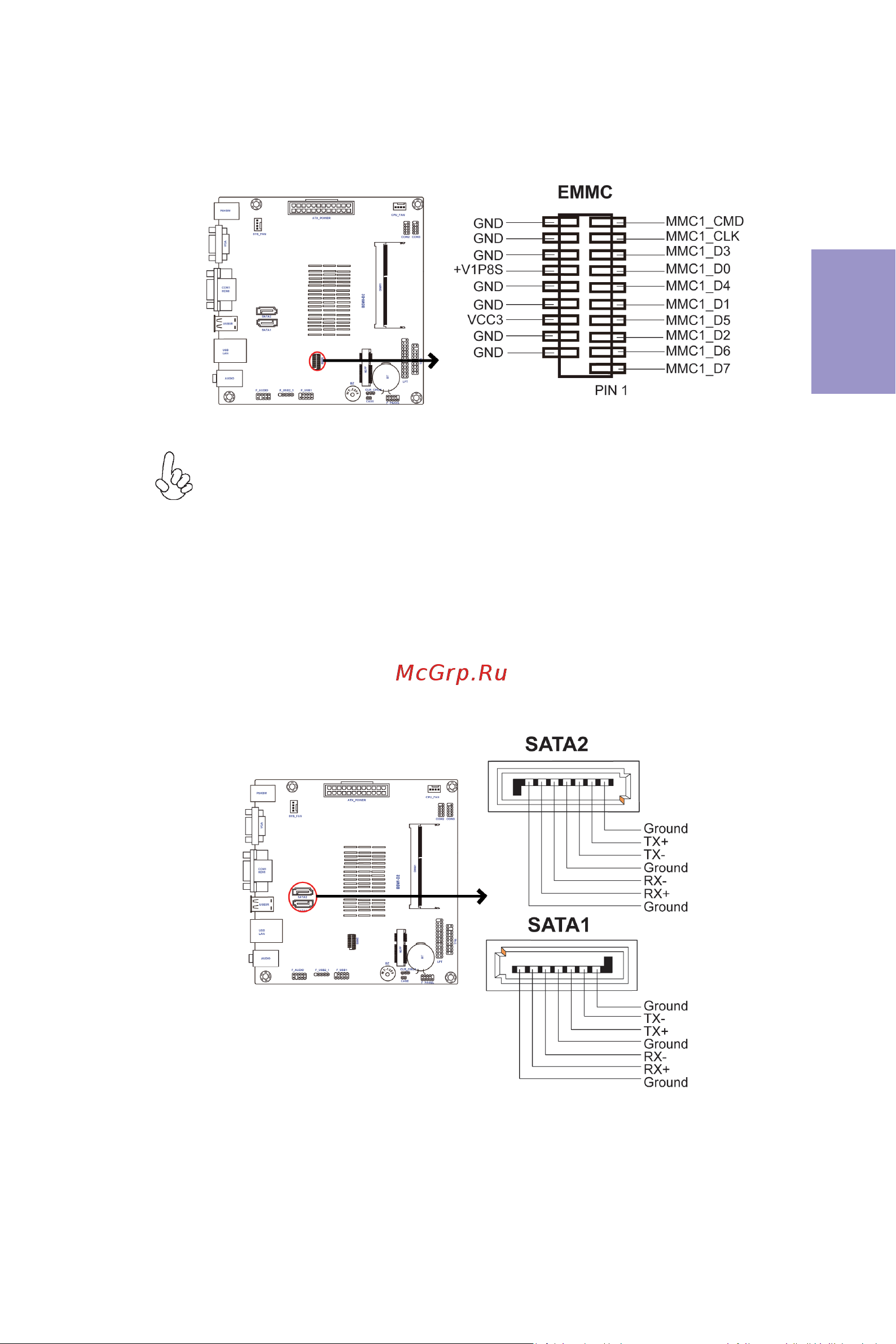

SATA 1~2 connectors support the Serial ATA 6Gb/s device, simpler disk drive cabling

and easier PC assembly. It eliminates limitations of the current Parallel ATA

interface. But maintains register compatibility and software compatibility with

Parallel ATA.

9. SATA1~2: Serial ATA Connectors

3. EMMC Header

The EMMC-BSW-32G card is not included in the package, you can buy

it separately and install.
