ECS Elitegroup LIVA ZE [15/76] Liva z plus mini pc user manual

LIVA Z PLUS MINI PC USER MANUAL

Chapter 1

4. Combo Audio Jack

(Line out & Mic in)

Connect a microphone or speaker to

the combo audio jack.

Connect the RJ-45 jack to the LAN

ports for Network connecting.

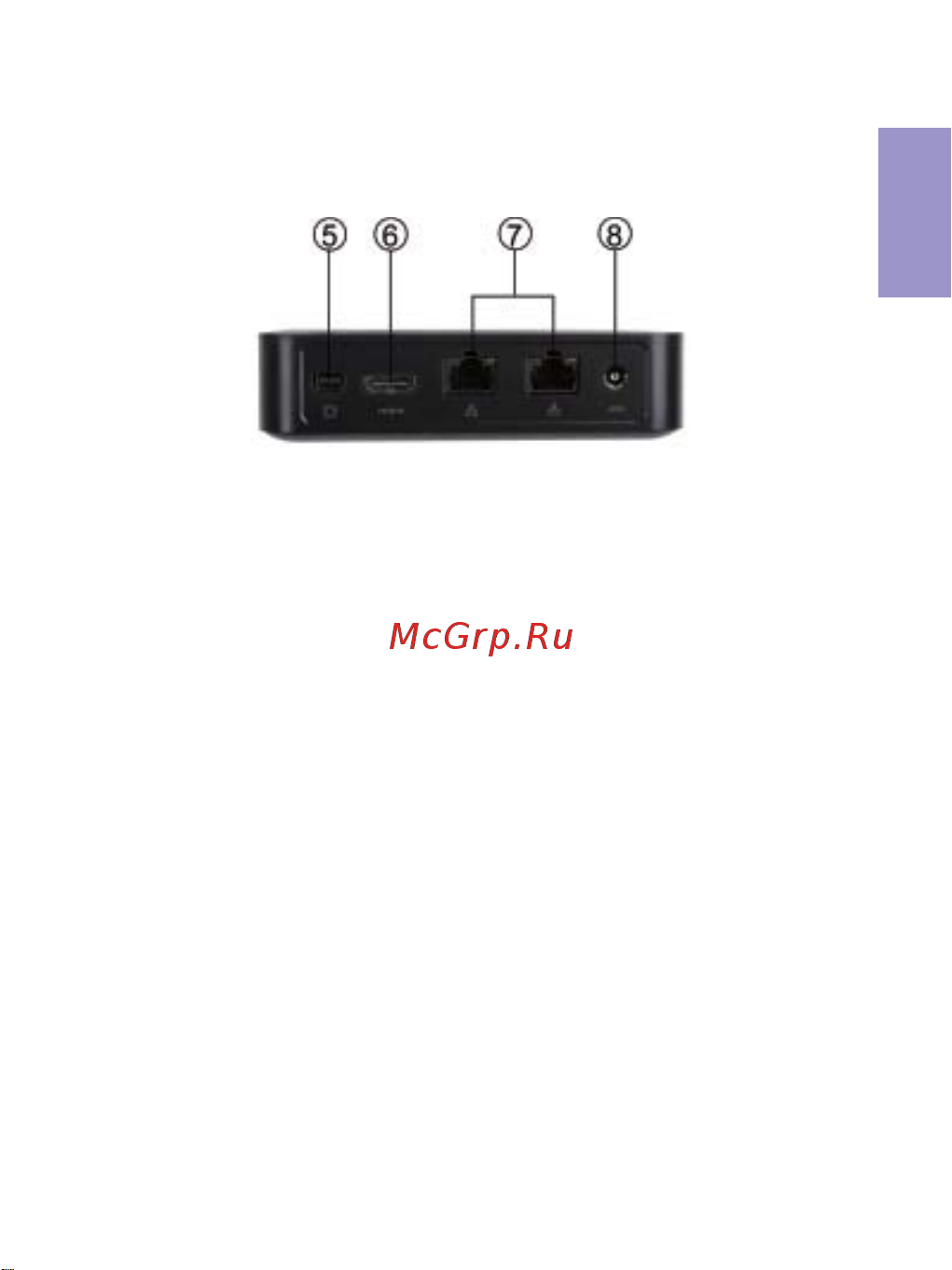

7. Giga LAN Ports

You can connect the display device to

the HDMI port.

6. HDMI Port

You can connect the mini display

device to this port.

5. Mini Display Port

Connect the DC_IN port to the power

adapter.

8. 19V DC_IN Port
