LIVA Z PLUS MINI PC USER MANUAL
31
Chapter 2
Serial Port 4 Configuration

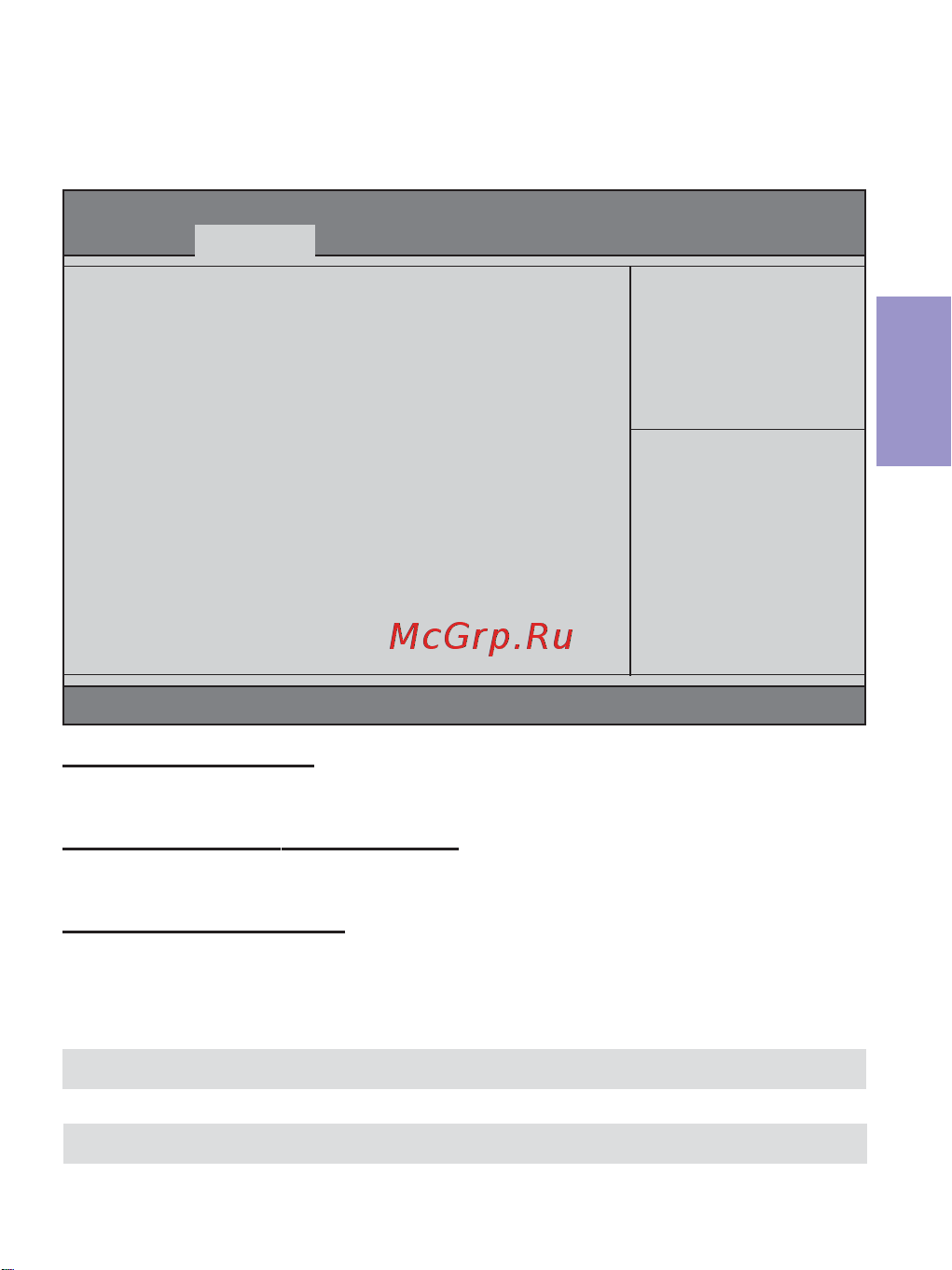

Scroll to this item and press <Enter> to view the following screen:
:Select Screen
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
+/- : Change Opt.
Enter : Select
:Select Item
Version 2.18.1263. Copyright (C) 2016 American Megatrends, Inc.
Serial Port 4 Configuration
Serial Port [Enabled]
Device Settings Reset Required
Change Setings [Auto]
Serial Port (Enabled)
This item allows you to enable or disable the serial port.
Device Settings (Reset Required)
This item shows the resource consumed by the serial port.
Change Settings (Auto)
Use this item to change device settings.
Aptio Setup Utility - Copyright (C) 2016 American Megatrends, Inc.
Advanced
Enable or Disable Serial
Port (COM)
Press <Esc> to return to the Super IO Configuration page.
Press <Esc> to return to the Advanced Menu page.
