Commercial Air Conditioner
1) If Tr≥-2℃, when Tp≤-6℃, enter defrost.

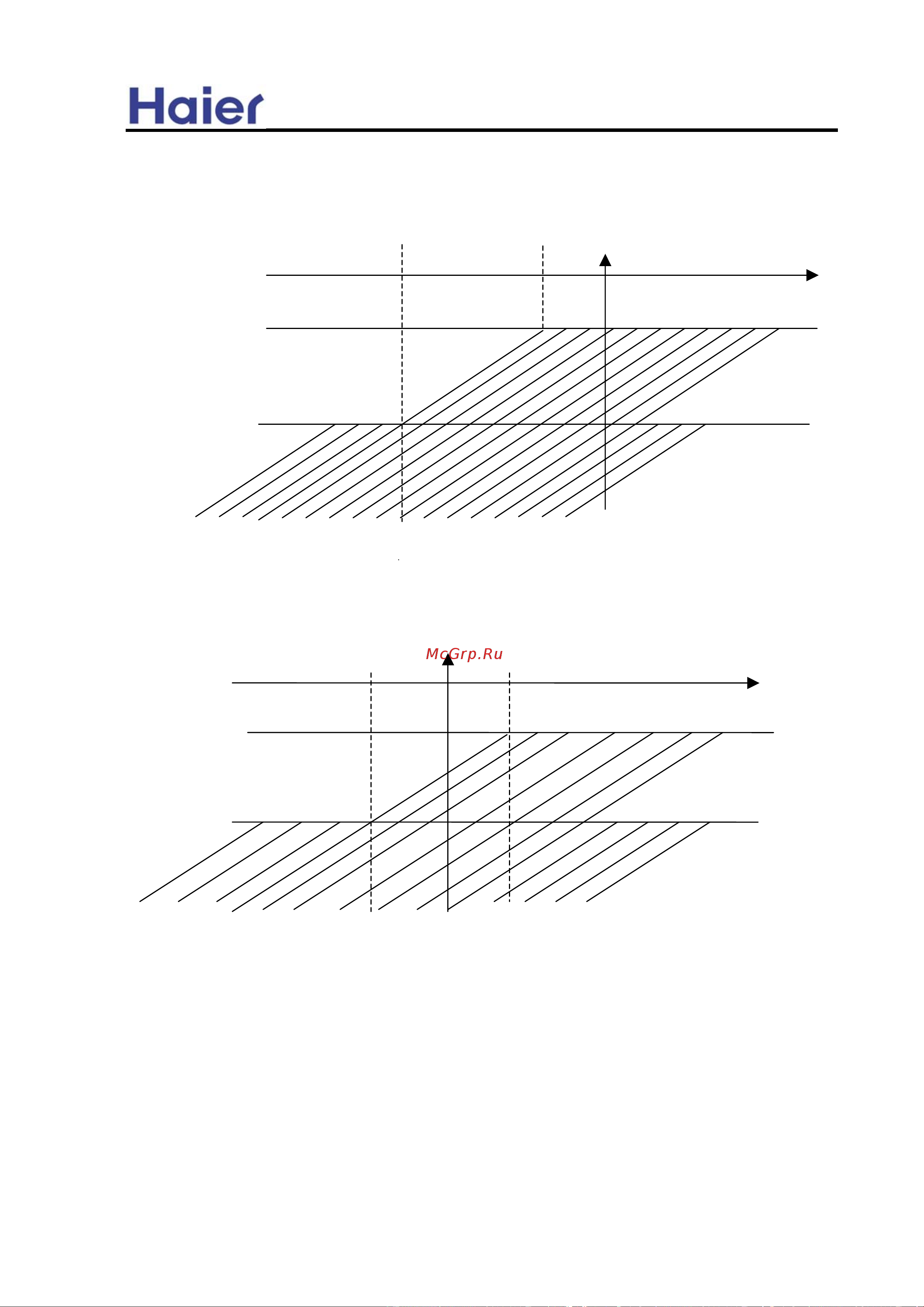

2) If -12℃≤Tr＜-2℃, when Tp≤-6℃, enter drfrost as following fig.
3) No matter the ambient temperature, when Tp≤-16℃, enter defrost.
Type 2: Non-standard defrost (rectify defrost data by the device)
1) If Tr≥6℃, when Tp≤-6℃, enter defrost.
2) If -18℃≤Tr＜-6℃, when Tp≤-6℃, enter drfrost as following fig.
3) No matter the ambient temperature, when Tp≤-18℃, enter defrost.
2.4 Manual defrost
Indoor sends defrost signal to outdoor, and the outdoor will receive the defrost signal when
compressor is running in heating mode, then enter the defrost process. When outdoor coil
temperature arrives the defrost-end point and the defrost time is over 5 minutes, outdoor will send
the defrost-end signal to finish the defrost.
3. System protection function
The red lamp of outdoor PCB will light if it normall after electrify, the lamp will flash if failure occurs
and indicate the failure code.
3.1 Anti-freezed protection
When compressor has run for over 6 minutes, if indoor coil temp. Tg<1℃ for over 1 minutes,
-6℃
A
mbient tem
p
.
Coil tem
p
.
(
℃
)
6℃-18℃
-6℃
-
18
℃
A
mbient tem
p
.
Coil tem
p
.
(
℃
)
-
2
℃
-
12
℃
-16℃
16
Model: HCFU-42CH03
HCFU-42HK03
