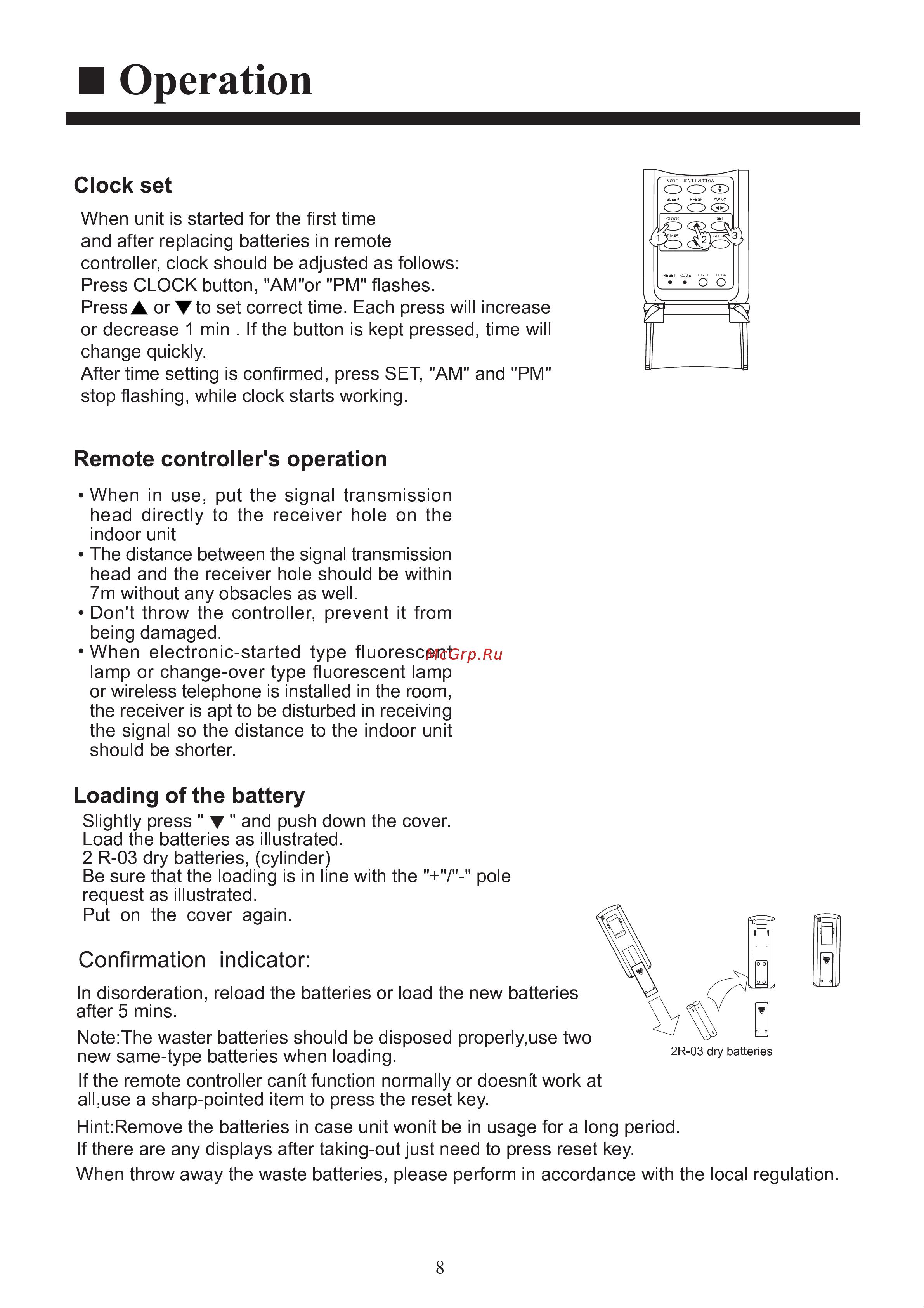

Operation Clock set When unit is started for the first time and after replacing batteries in remote controller clock should be adjusted as follows Press CLOCK button AM or PM flashes Press A or to set correct time Each press will increase or decrease 1 min If the button is kept pressed time will change quickly After time setting is confirmed press SET AM and PM stop flashing while clock starts working Remote controller s operation When in use put the signal transmission head directly to the receiver hole on the indoor unit The distance between the signal transmission head and the receiver hole should be within 7m without any obsacles as well Don t throw the controller prevent it from being damaged When electronic started type fluorescent lamp or change over type fluorescent lamp or wireless telephone is installed in the room the receiver is apt to be disturbed in receiving the signal so the distance to the indoor unit should be shorter Loading of the battery Slightly press and push down the cover Load the batteries as illustrated 2 R 03 dry batteries cylinder Be sure that the loading is in line with the 7 pole request as illustrated Put on the cover again Confirmation indicator In disorderation reload the batteries or load the new batteries after 5 mins Note The waster batteries should be disposed properly use two new same type batteries when loading If the remote controller canit function normally or doesnit work at all use a sharp pointed item to press the reset key 2R 03 dry batteries Hint Remove the batteries in case unit won it be in usage for a long period If there are any displays after taking out just need to press reset key When throw away the waste batteries please perform in accordance with the local regulation 8
