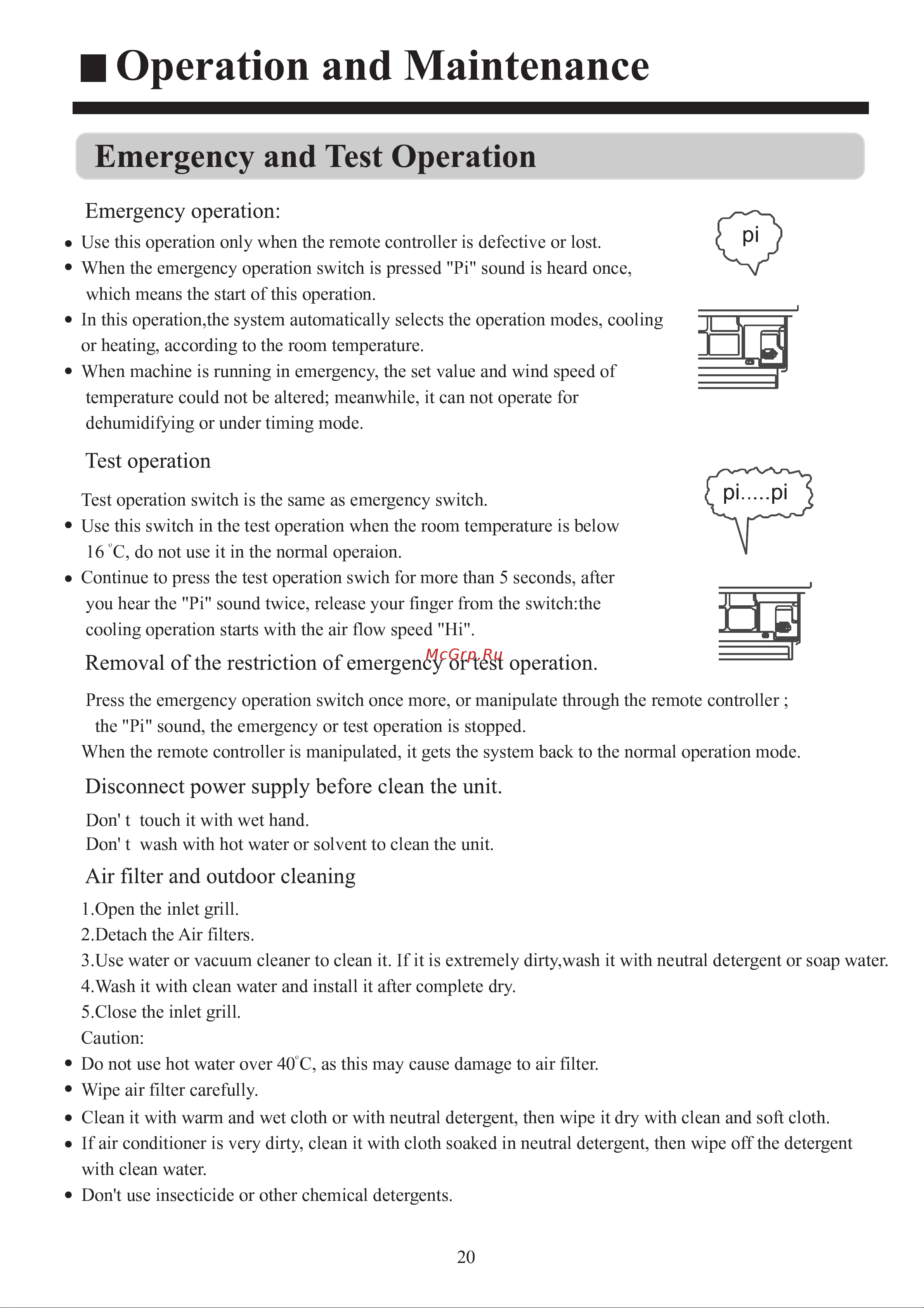

Operation and Maintenance Emergency and Test Operation Emergency operation Use this operation only when the remote controller is defective or lost When the emergency operation switch is pressed Pi sound is heard once which means the start of this operation In this operation the system automatically selects the operation modes cooling or heating according to the room temperature When machine is running in emergency the set value and wind speed of temperature could not be altered meanwhile it can not operate for dehumidifying or under timing mode Test operation Test operation switch is the same as emergency switch Use this switch in the test operation when the room temperature is below 16 C do not use it in the normal operaion Continue to press the test operation swich for more than 5 seconds after you hear the Pi sound twice release your finger from the switch the cooling operation starts with the air flow speed Hi Removal of the restriction of emergency or test operation Press the emergency operation switch once more or manipulate through the remote controller the Pi sound the emergency or test operation is stopped When the remote controller is manipulated it gets the system back to the normal operation mode Disconnect power supply before clean the unit Don t touch it with wet hand Don t wash with hot water or solvent to clean the unit Air filter and outdoor cleaning l Open the inlet grill 2 Detach the Air filters 3 Use water or vacuum cleaner to clean it If it is extremely dirty wash it with neutral detergent or soap water 4 Wash it with clean water and install it after complete dry 5 Close the inlet grill Caution Do not use hot water over 40 C as this may cause damage to air filter Wipe air filter carefully Clean it with warm and wet cloth or with neutral detergent then wipe it dry with clean and soft cloth If air conditioner is very dirty clean it with cloth soaked in neutral detergent then wipe off the detergent with clean water Don t use insecticide or other chemical detergents 20
