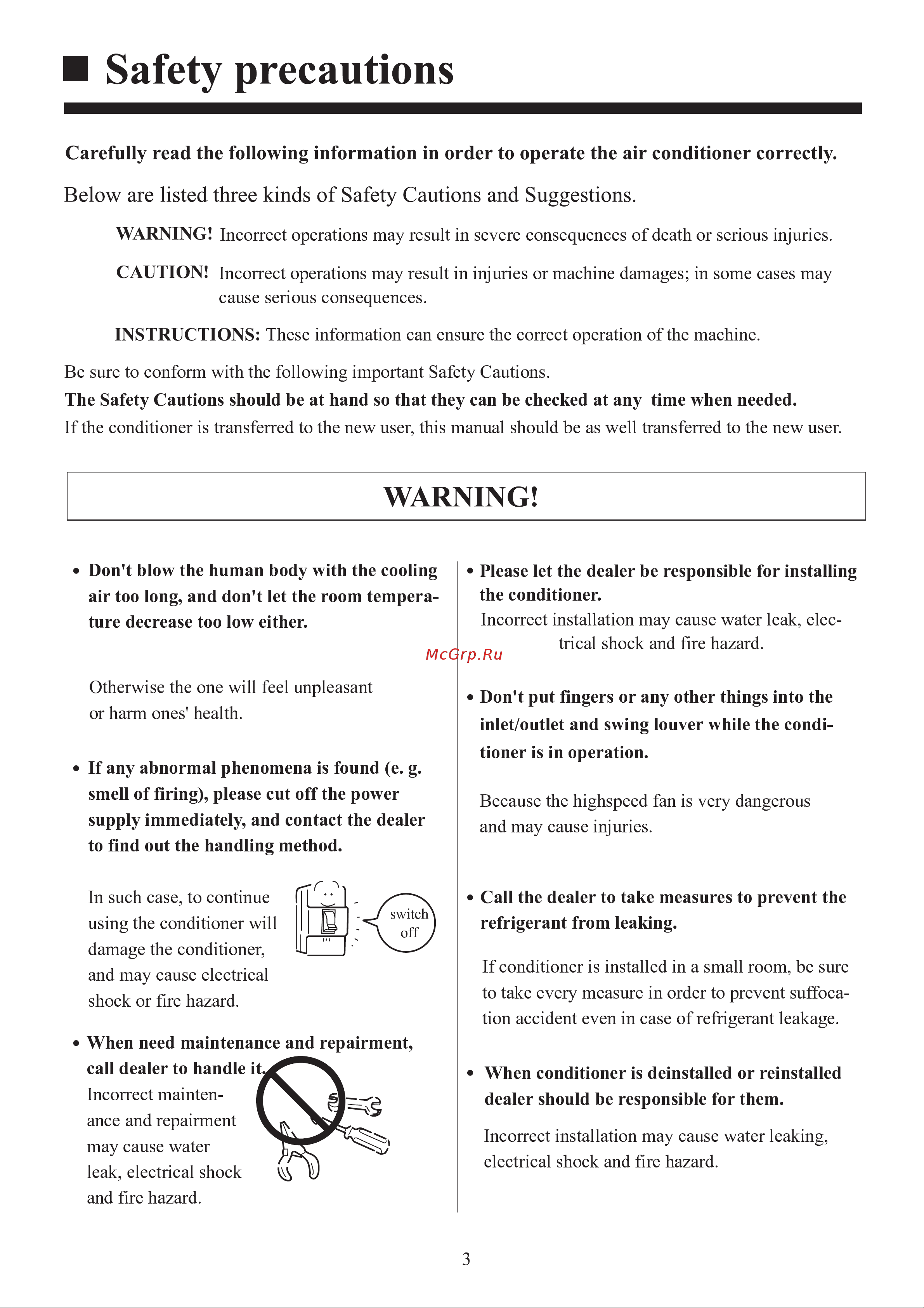

Safety precautions Carefully read the following information in order to operate the air conditioner correctly Below are listed three kinds of Safety Cautions and Suggestions WARNING Incorrect operations may result in severe consequences of death or serious injuries CAUTION Incorrect operations may result in injuries or machine damages in some cases may cause serious consequences INSTRUCTIONS These information can ensure the correct operation of the machine Be sure to conform with the following important Safety Cautions The Safety Cautions should be at hand so that they can be checked at any time when needed If the conditioner is transferred to the new user this manual should be as well transferred to the new user WARNING Don t blow the human body with the cooling air too long and don t let the room tempera Please let the dealer be responsible for installing the conditioner Incorrect installation may cause water leak elec ture decrease too low either trical shock and fire hazard Otherwise the one will feel unpleasant Don t put fingers or any other things into the or harm ones health inlet outlet and swing louver while the condi tioner is in operation If any abnormal phenomena is found e g smell of firing please cut off the power Because the highspeed fan is very dangerous supply immediately and contact the dealer and may cause injuries to find out the handling method Call the dealer to take measures to prevent the In such case to continue refrigerant from leaking using the conditioner will damage the conditioner If conditioner is installed in a small room be sure and may cause electrical to take every measure in order to prevent suffoca shock or fire hazard tion accident even in case of refrigerant leakage When need maintenance and repairment call dealer to handle itj When conditioner is deinstalled or reinstalled Incorrect mainten f ance and repairment dealer should be responsible for them 1 Incorrect installation may cause water leaking may cause water leak electrical shock electrical shock and fire hazard 11 and fire hazard 3
