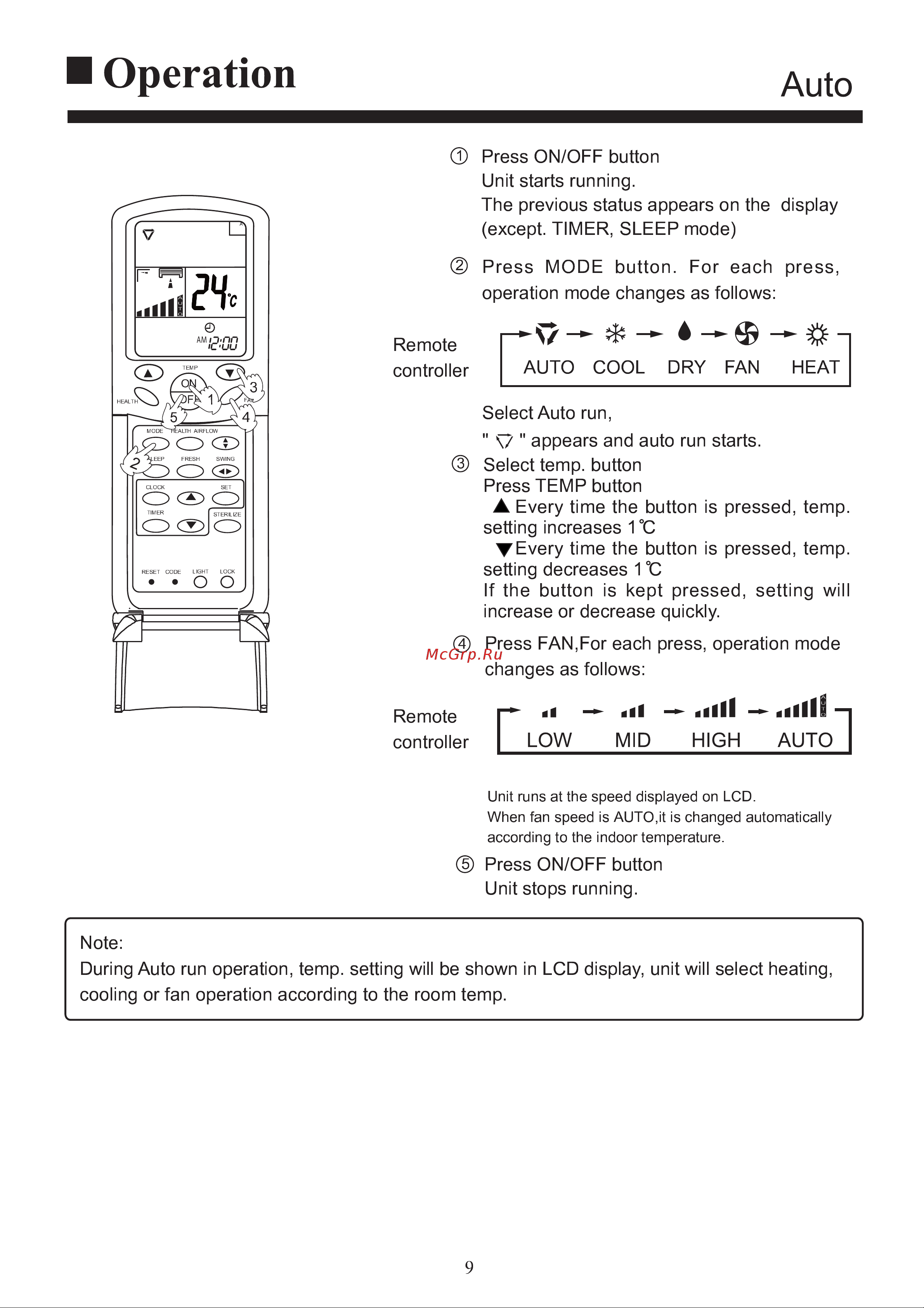

Operation Auto Press ON OFF button Unit starts running The previous status appears on the display except TIMER SLEEP mode Press MODE button For each press operation mode changes as follows Remote AUTO COOL DRY FAN HEAT controller Select Auto run V appears and auto run starts Select temp button Press TEMP button Every time the button is pressed temp setting increases 1 C Every time the button is pressed temp setting decreases 1C If the button is kept pressed setting will increase or decrease quickly Press FAN For each press operation mode changes as follows Remote p aillB q controller LOW MID HIGH AUTO Unit runs at the speed displayed on LCD When fan speed is AUTO it is changed automatically according to the indoor temperature Press ON OFF button Unit stops running Note During Auto run operation temp setting will be shown in LCD display unit will select heating cooling or fan operation according to the room temp 9
