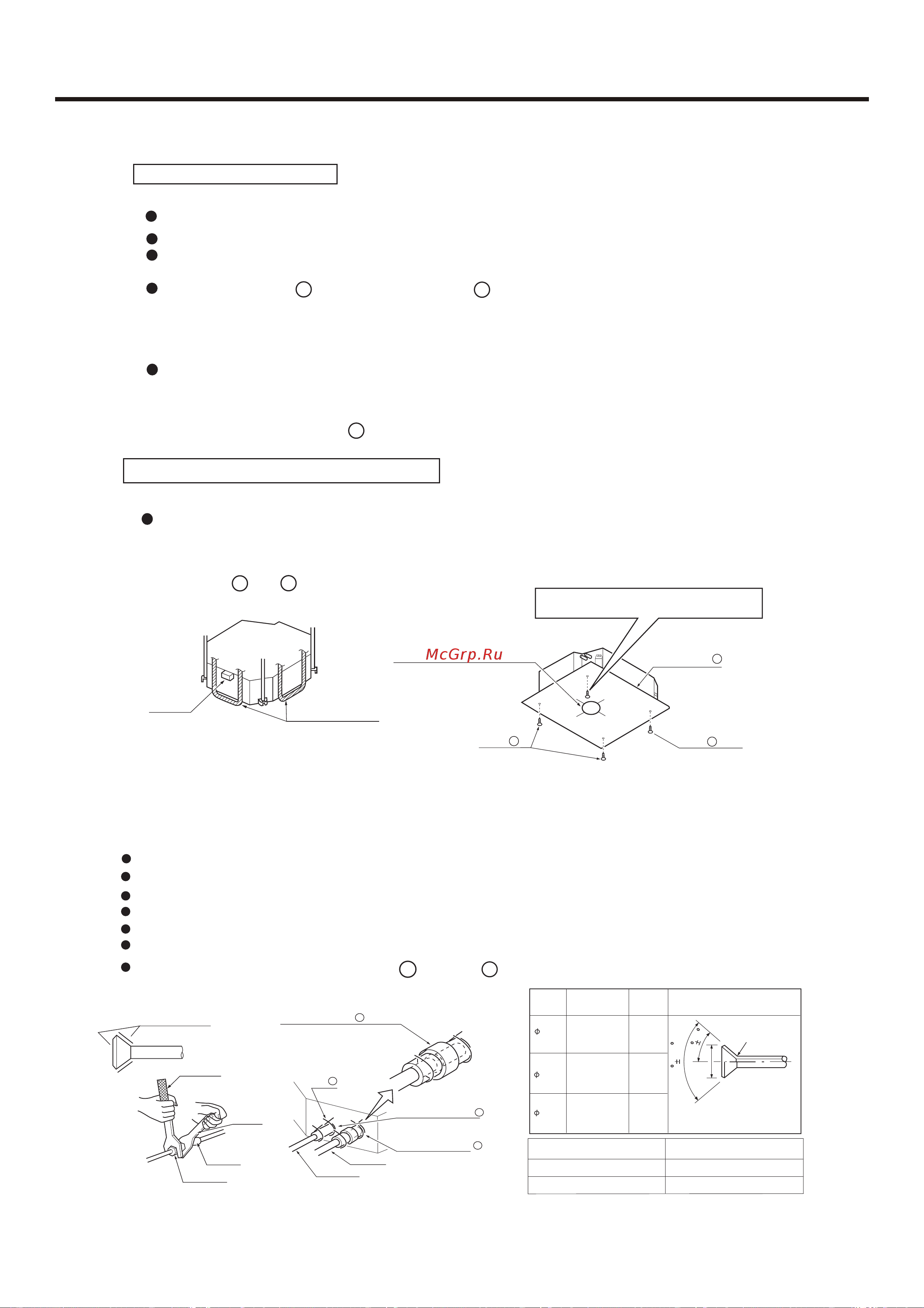

5.3.4 Installation
4
5
7
(2) As for the dimensions of ceiling hole, see paper pattern. Ask your real estate dealer for details.
Center of the hole is marked on the paper pattern.
Center of the unit is marked on the card in the unit and on the paper pattern.
Mount paper pattern onto unit using 3 screws . Fix the corner of the drain pan at piping outlet.
(1) Install unit temporally
In the case of new ceiling
Put suspending bracket on the suspending bolt. Be sure to use nut and washer at both ends of the bracket.
< After installation on the ceiling >
(3) Adjust unit to its right position. (Refer to preparation for the installation-(1))
(4) Check unit's horizontal level.
Watert pump and flating switch is installed inside indoor unit, check four corners of the unit for its level using
horizontal compartor or PVC tube with water. (If unit is tilting against the direction of water drainage, problem
may occur on floating switch, causing water leakage.)
(5) Remove the washer mounlting , and tighten the nut above.
(6) Remove the paper pattern.
(1) Install unit temporally
Put suspending bracket on the suspending bolt. Be sure to use nut and washer at both ends of the
bracket. Fix the bracket firmly.
(2) Adjust the height and position of the unit. (Refer to preparation for the installation (1) ).
(3) Proceed with and of "In the case of new ceiling".
Level
Polythene pipe
3
4
In the case of ceiling already exists
Scrtews at the piping outlet is fixed at the corner
of drain pan.
Center of ceiling hole Paper pattern
4
Paper pattern
5
Screw (accessory)
5
Screw
(accessory)
[Fix the paper pattern]
5.3.5 Refrigerant piping
As for outdoor piping, please refer to installation Manual of outdoor unit.
6
9
Apple refrigerant oil
Torque spanner
spanner
Piping joing
Flare nut
Medium size seal pad 9 (accessory)
Clip 3
Gas pipe
Liquid pipe
Insulator (accessory)
(For liquid pipe)
Insulator (accessory)
(For gas pipe)
7
6
(Cover the piping joint with seal pad.)
R0.4 ~ 0.8
A
Pipe
size
Tighten
torque
A(mm) Flare shape
9.52
3270~3990N
.
cm
(333~407kgf
.
cm)
6180~7540N
.
cm
(630~770kgf
.
cm)
15.88
19.05
9720~11860N
.
cm
(990~1210kgf
.
cm)
12.0~12.4
18.6~19.0
22.9~23.3
90
0.5
45
2
Outdoor is precharged with refrigerant.
Be sure to see the Fig.1, when connecting and removing piping from unit.
For the size of the flare nut, please refer to Table 1.
Apply refrigerant oil at both inside and outsid of lflare nut. Tighten it band tight 3-4 turns then tighten it.
Use torque specified in Table 1. (Too much force may damage flare nut, causing gas leakage).
Check piping joints for gas leakage. Insulate piping as shown in Fig. below.
Cover joint of gas piping and insulator with seal .
Table 1
Diameter of Pipe
Liquid Pipe 6.35mm
Gas Pipe 12.7mm
Tighten Torque
18 N. m
50N. m
- 21 -
